Delta M8-TL-US User Manual

12

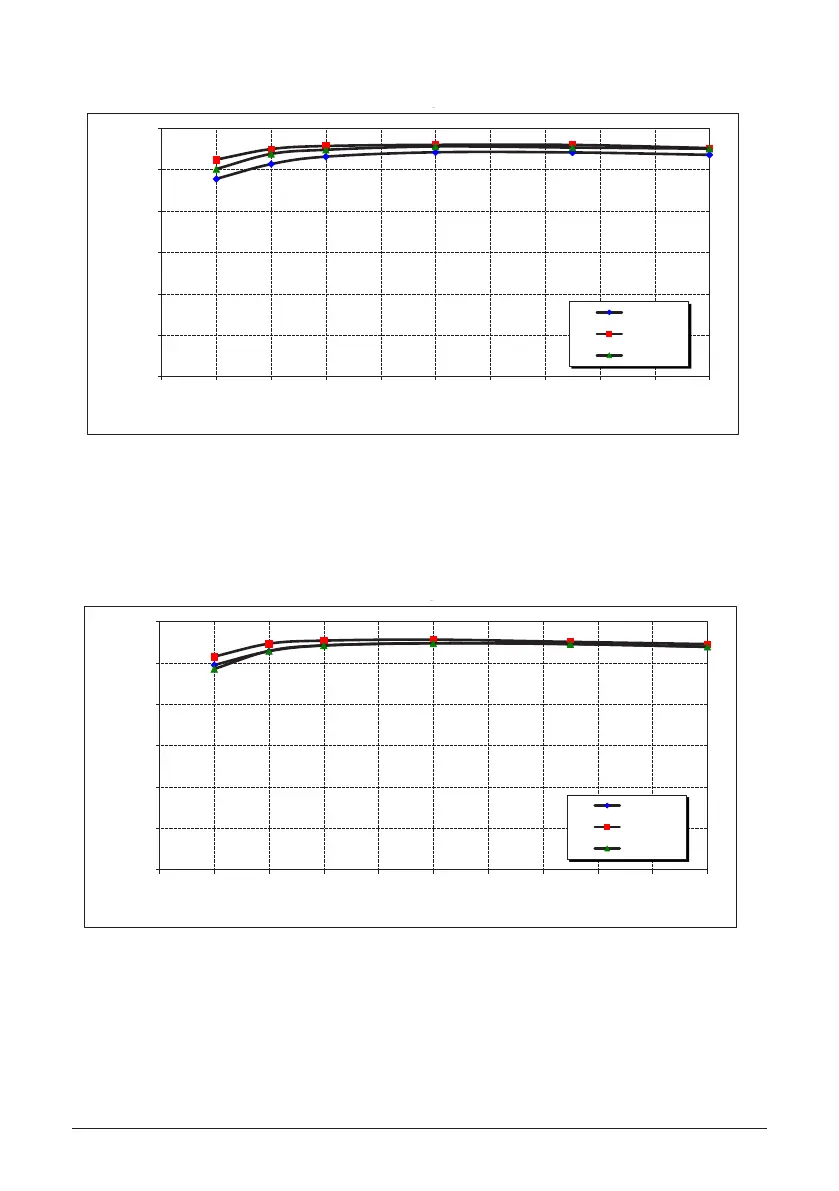

Figure6:M8-TL-USe󰀩ciencyplot
Manufacturer: Delta Electronics (Shanghai) Co., Ltd. HangZhou Branch
Model #: Mario 8k
Rated Maximum Continuous Output Power: 7.68 kW Night Tare Loss: W
Vmin: 270 Vdc Vnom: 380 Vdc Vmax: 480 Vdc
Power Level (%; kW)
10% 20% 30% 50% 75% 100%
Input Voltage (Vdc) 0.77 1.54 2.30 3.84 5.76 7.68 Wtd
Vmin 270 94.8 96.4 97.1 97.4 97.3 96.9 97.13
Vnom 380 95.8 97.3 97.7 97.8 97.6 97.3 97.53
Vmax 480 94.3 96.5 97.1 97.4 97.3 97.0 97.10
CEC Efficiency = 97.5%
270 Vdc
380 Vdc
480 Vdc
70
75
80
85
90
95
100
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Efficiency, %
% of Rated Output Power
270 Vdc
380 Vdc
480 Vdc
Figure5:M6-TL-USe󰀩ciencyplot
Manufacturer: Delta Electronics (Shanghai) Co., Ltd. HangZhou Branch
Model #: Mario 6k
Rated Maximum Continuous Output Power: 5.76 kW Night Tare Loss: W
Vmin: 200 Vdc Vnom: 380 Vdc Vmax: 480 Vdc
Power Level (%; kW)
10% 20% 30% 50% 75% 100%
Input Voltage (Vdc) 0.58 1.15 1.73 2.88 4.32 5.76 Wtd
Vmin 200 93.9 95.7 96.6 97.1 97.1 96.8 96.8
Vnom 380 96.2 97.5 97.9 98.0 98.0 97.6 97.9
Vmax 480 95.1 96.9 97.4 97.8 97.7 97.5 97.5
CEC Efficiency = 97.5%
200 Vdc
380 Vdc
480 Vdc
70
75
80
85
90
95
100
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Efficiency, %
% of Rated Output Power
200 Vdc
380 Vdc
480 Vdc
