Delta ShopMaster DP200 User Manual

6

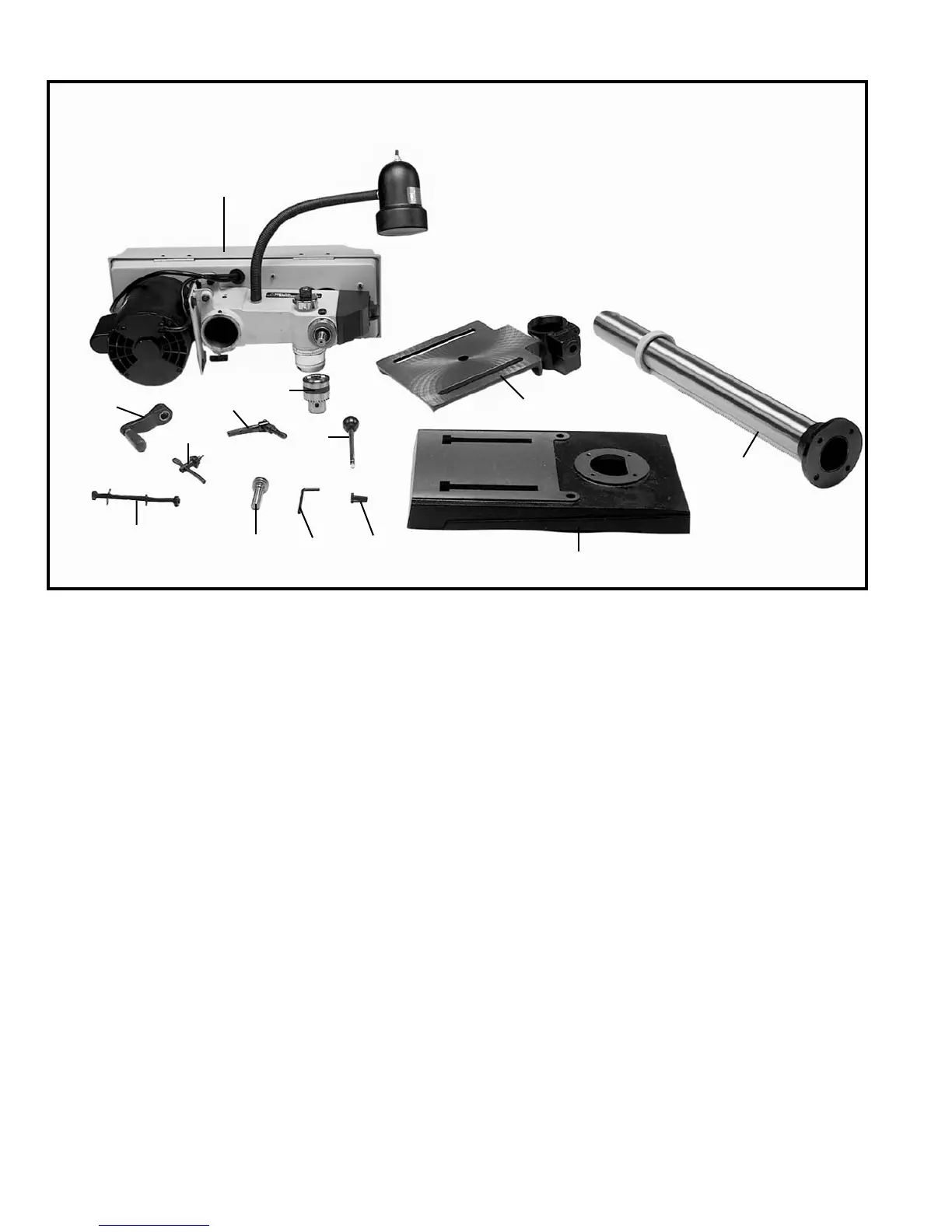

DRILL PRESS PARTS
Fig. 2
1 - Drill Press Head and Motor
2 - Table Raising and Lowering Handle
3 - Table Clamp
4 - Chuck
5 - Chuck Key
6 - Pinon Shaft Handles (3)
7 - M8x1.25x125mm Carriage Head Screws (2), M8 Flat
Washers (2), M8.1 Lock Washers (2), M8x1.25 Hex Nuts
(2) (for fastening the base to a supporting surface)
8 - Worm Gear for Table Raising and Lowering
9 - Allen Wrenches (2)
10 - M8x1.25x25mm Hex Head Cap Screws (4)
11 - Table
12 - Base
13 - Column, Base Flange and Rack
1
2
3
4
6
5
7
8
9
10
11
12
13
