12

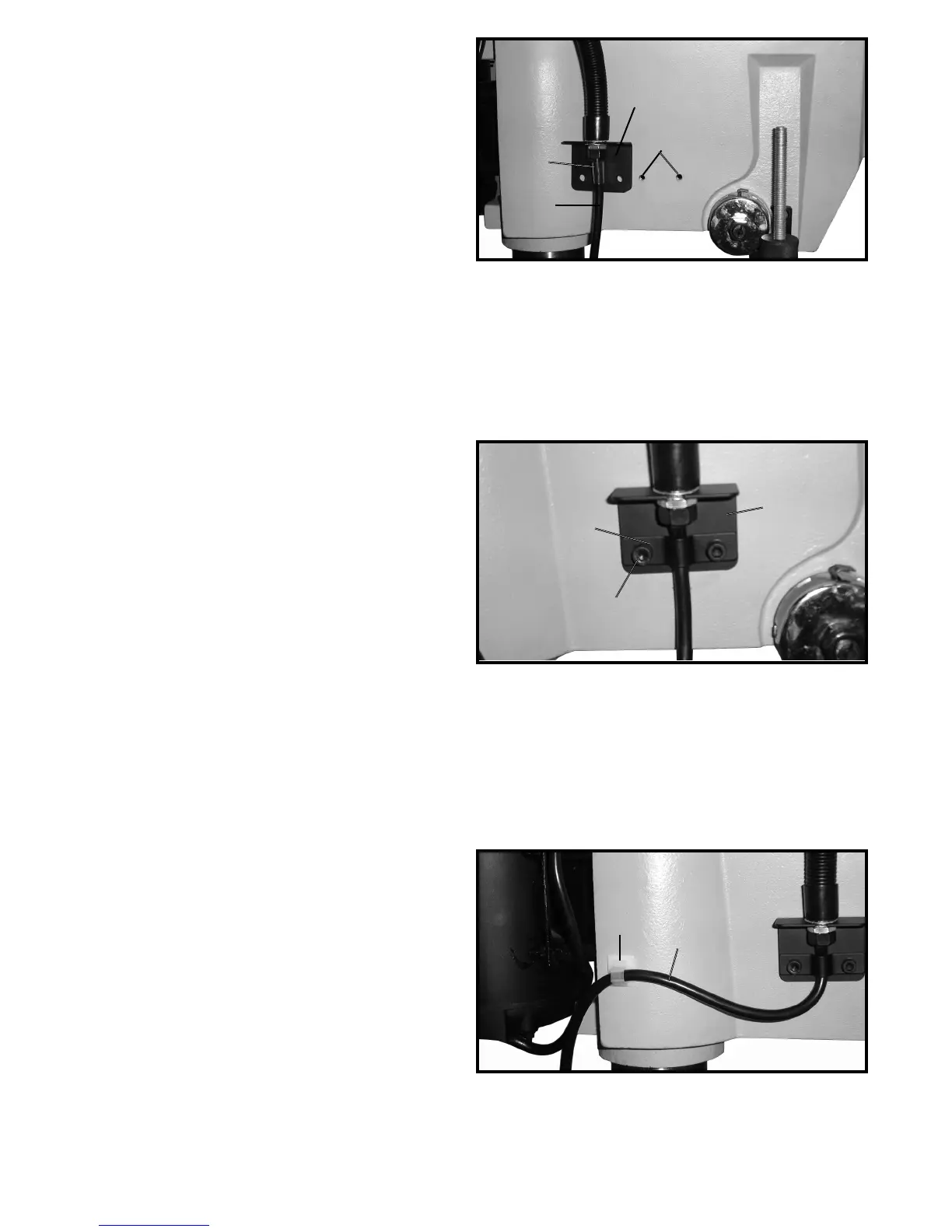

18. Align the two holes in the lamp bracket (A) Fig. 17,
with the two holes (B) on the side of the drill press head.
Fig. 17
20. Align the two holes in the lamp cord bracket (F) Fig.
18 with the two holes in the lamp bracket (A) and drill
press head.
Fig. 18
21. Place a 1/4" washer onto a M6x1x12mm cap head
screw. Insert the screw (G) Fig. 18 through the hole in the
cord strain relief bracket and the lamp bracket and
thread the screw into the drill press head. Repeat this
process for the remaining hole in the cord strain relief
bracket and tighten both screws securely.
Fig. 19
22. Peel backing from cord clamp (H) Fig. 19, and apply
clamp at the location shown. Make certain the lamp
cord is routed out of the way of the drill, then secure
cord (J) to cord clamp (H) as shown in Fig. 19.
A
B
19. Place the cord bushing (C) Fig. 17, around the top of
the lamp cord (D).
C
D
F
A
G
H
J
To Next Page
