AVR-1700 offers a full discrete 5-channel power amplifier to support the dynamic performance of the Dolby Digital AC-3
sound signal from DVD. All channels have an equal power output of 70 watts (8 ohms, 20Hz - 20kHz, THD 0.05%) and are
configured as independent monaural amplifiers. This construction enables the AVR-1700 to produce dynamic realism
through its high-current capability and to recreate a nuanced surround sound effect via superior channel separation.
The Full Discrete 5-channel Equal Power Amplifier
Since surround signals are all processed in the digital domain, the AVR-1700 is equipped with a newly-developed,
sophisticated, high-performance DSP circuit with "Full Block Floating Point" calculations for the Dolby Digital AC-3
and Dolby Pro Logic decoders and Surround Simulator.
DDSC-Digital (Dynamic Discrete Surround Circuit-Digital)
The AVR-1700 is equipped with 96 kHz, 24-bit audio D/A converters. The D/A converters feature 96 kHz, 24-bit audio
performance to meet the highest specification level of DVD Video.
96 kHz, 24-bit Audio D/A Converters
6-channel External Decoder Input
Binding Post Speaker Terminals for All Channels
Two Pairs of Front Speaker Terminals for Bi-Wiring
Center Speaker Terminals for Bi-Wiring
Versatile Speaker Terminals
Self-illuminated GLO-KEY Remote Controller with
Easy Recognition Layout
The remote controller of AVR-1700 features the "Self-illuminated GLO-KEY" for frequently used functions, and it gives you
ease of use even in the dark. It also comes with four powerful functions: System Call, System Remote Control, Pre-Memory,
and Programming. If several A/V components are connected to the AVR-1700, this single controller can operate the entire
system, even if the components are not of DENON make.
Personal Memory Plus
Dot Matrix Display
The AVR-1700 is equipped with a dot matrix display with greater resolution to ensure that operating status and other
alpha-numeric characters are easy to read.
Functions for Easy Operation
Frequency Synthesis Tuning
40-Station AM/FM Random Preset Memory Tuning / Auto Preset Memory
Other Features
Video Select Switch / PRE OUT Terminals / All Channel Level Control / 6 Surround Modes / Tone Control / Two Switched AC Outlets
Analog Input
Digital Input
18bit
A/D Converter
Digital
Interface
Receiver
L
R
Front
L
R
Surround
Center
Subwoofer
Digital Filter
D.F.
D.F.
D.F.
AC-3
Pro-Logic
Decoder
Surround
Simulator
Master
Volume
Control
D/A
D/A
D/A
D/A
D/A
D/A

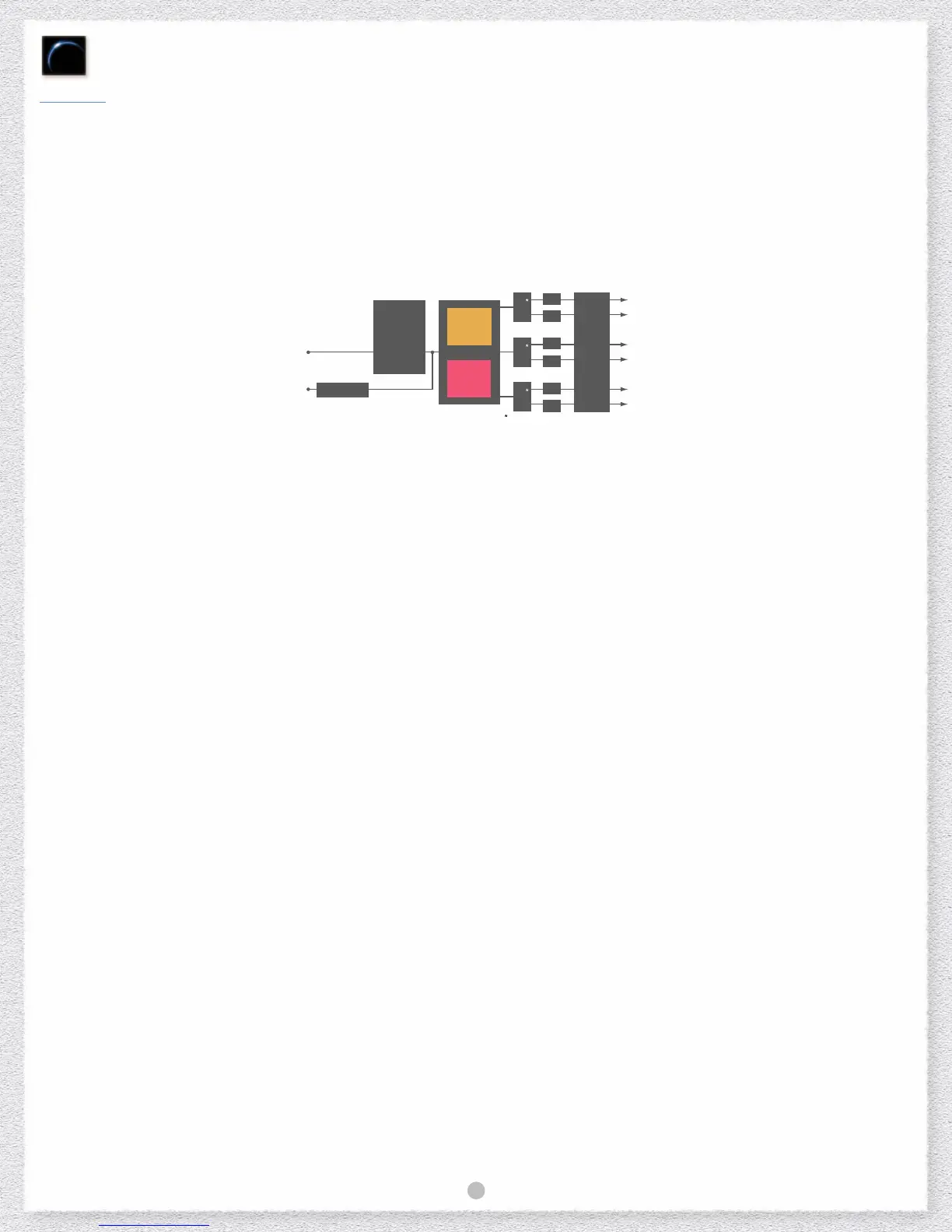

Dynamic Discrete Surround Circuit-Digital Block Diagram
The First Name
In Digital Audio
2
Input/Output Terminals for Every A/V System
Audio Inputs
1 Digital (Optical) Input
OPTICAL
2 Digital (Coaxial) Inputs
COAXIAL
9 Analog Inputs
PHONO, CD, TUNER, DVD/VDP,TV/DBS, VCR-1, VCR-2/V-
AUX, MD/TAPE, and 6-channel External Decoder Input
Audio Outputs
4 Analog PRE Terminals
FRONT L/R, CENTER, SUBWOOFER
3 Analog REC Terminals
VCR-1, VCR-2/V-AUX, MD/TAPE
Video Inputs
4 Composite Inputs
DVD/VDP, TV/DBS, VCR-1, VCR-2/V-AUX
Video Outputs
3 Composite Outputs
VCR-1, VCR-2/V-AUX, MONITOR
AVR-1700

Denon AVR-1700 Specifications

Power Amplifier Section

front channel output	70 W + 70 W (8 ohms, 20Hz - 20 kHz, THD 0.05%)
center channel output	70 W (8 ohms, 20Hz - 20 kHz, THD 0.05%)
surround channel output	70 W + 70 W (8 ohms, 20Hz - 20 kHz, THD 0.05%)
dynamic power 8 ohms	90 W x 2 ch
dynamic power 4 ohms	150 W x 2 ch
dynamic power 2 ohms	2180 W x 2 ch

Preamplifier Section

phono input sensitivity/impedance	2.5 mV/ 47 kohms
cd, dvd/vdp, tv/dbs, vcr-1, vcr-2/v.aux input sensitivity/impedance	200 mV/ 47 kohms
output level/load impedance front l/r, center, sub woofer	1.2 V/ 10 kohms
output level/load impedance vcr-1, vcr-2/v.aux, md/tape	150 mV/ 47 kohms

Video Section

composite input terminal	1 Vp-p / 75 ohms
composite output terminal	1 Vp-p / 75 ohms

FM Section

tuning frequency range	87.5 - 107.9 MHz
usable sensitivity	1.0 µV (11.2 dBf)
s/n 50 dB sensitivity mono	1.6 µV (15.3 dBf)
s/n 50 dB sensitivity stereo	23 µV (38.5 dBf)
signal-to-noise ratio mono	80 dB
signal-to-noise ratio stereo	75 dB
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.3%

AM Section

tuning frequency range	520 - 1710 kHz
usable sensitivity	18 µV
signal-to-noise ratio	50 dB

General

power supply	AC 120 V, 60 Hz, 4.1A
dimensions	434 (W) x 161 (H) x 416(D) mm
weight	10.9 kg, 24 lbs
dimensions in inches	17.1”(W) x 6.3” (H) x 16.4” (D)
