Connecting multi-zone speakers
o

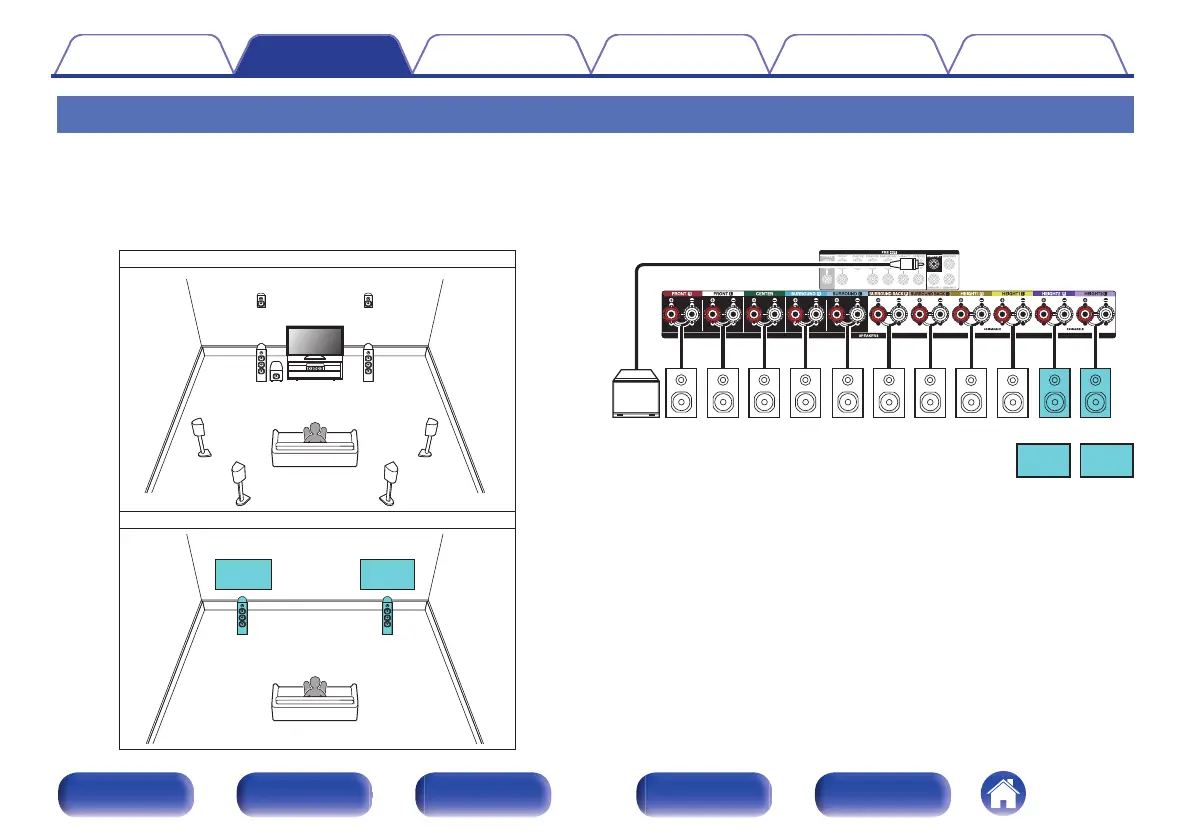

7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2)
This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2.
You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers
automatically switch according to the input signal and sound mode.
MAIN ZONE
ZONE2
FHL
FL
SW
C
SL
SBL
FHR
FR
SR
SBR
ZONE2
L
ZONE2
R
SBR SBL
FR FL C SR SL
SW
FHR FHL
zz
ZONE2
R
ZONE2
L
z
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
be connected to the HEIGHT1 speaker terminals. Set the speaker to be
connected from “Height” - “Layout” in the menu. (v p. 208)
