ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.
Side Handle (Fig. B)

WARNING: To reduce the risk of personal injury,
ALWAYS operate the tool with the side handle
properly installed. Failure to do so may result in
the side handle slipping during tool operation and
subsequent loss of control. Hold tool with both hands
to maximizecontrol..
The side handle
2
clamps to the front of the gear case and
may be rotated 360˚ to permit right- or left-hand use.
Mounting the Straight Side Handle
(Fig. B)
1. Widen the ring opening of the side handle
2
by
rotating it counterclockwise.
2. Slide the assembly onto the nose of the tool, placing
the steel ring
12
onto the collar
3
, past the bit holder
andsleeve.
3. Rotate the side handle assembly to the desired position.
For hammerdrilling horizontally with a heavy drill
bit, place the side handle assembly at an angle of
approximately 20° to the tool for optimumcontrol.
4. Lock the side handle mounting assembly in place by
securely tightening the handle
2
rotating it clockwise
so that the assembly will notrotate.

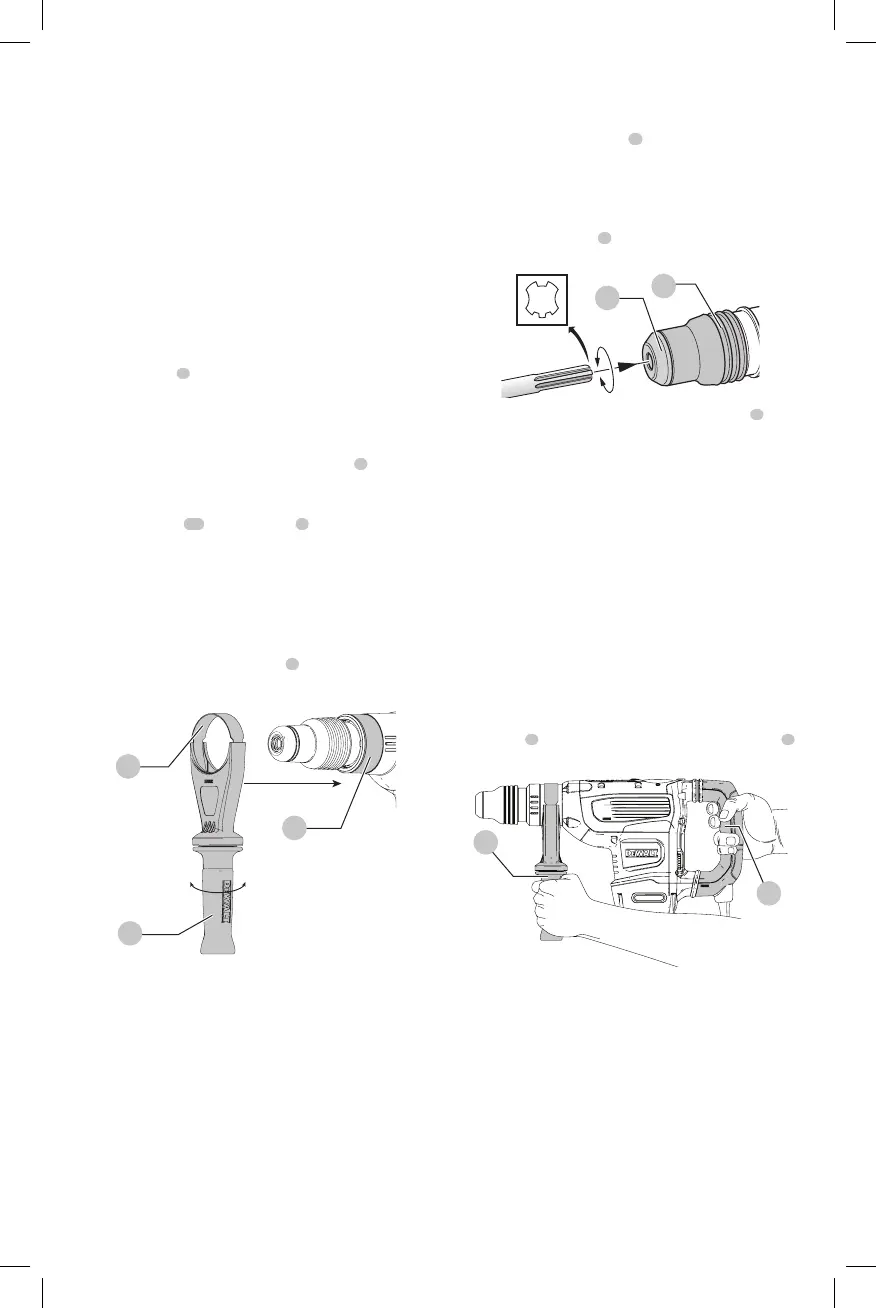

Fig. B
3
2
12
Bit and Bit Holder

WARNING: Burn Hazard. ALWAYS wear gloves when
changing bits. Accessible metal parts on the tool and
bits may get extremely hot during operation. Small
bits of broken material may damage barehands.

WARNING: Do not attempt to tighten or loosen drill
bits (or any other accessory) by gripping the front part
of the chuck and turning the tool on. Damage to the
chuck and personal injury mayoccur.
The rotary hammer can be fitted with various chisel bits
depending on the desired application. Use sharp drill
bitsonly.
Inserting and Removing SDS MAX Bits
(Fig. C)
1. Insert bit in the bit holder
6
and apply downward
pressure while rotating to secure the bit into place. The
bit shank must beclean.
2. Ensure the bit is properlyengaged.
NOTE: The bit needs to move several centimeters in and
out of the bit holder
6
when properlyengaged.
6
7
Fig. C
3. To remove the bit, pull back the locking sleeve
7
and
pull the bitout.
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.
Proper Hand Position (Fig. D)

WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Proper hand position requires one hand on the mounted
side handle
2
, with the other hand on the mainhandle
5
.
Fig. D
2
5
SHOCKS Active Vibration Control®
System
For best vibration control, hold the tool as described in
Proper Hand Position and apply just enough pressure so
the damping device on the main handle is approximately
mid stroke. The hammer only needs enough pressure to
engage the active vibration control. Applying too much
pressure will not make the tool actuate faster and active
vibration control will notengage.
