Attaching Spray Wand (Fig. E)
To connect the spray wand
2
to the spray handle
3
, insert
the end of the spray wand inside the spray handle and turn
the spray wand clockwise until its firmly in working position.
Attaching High Pressure Hose (Fig. F–H)
NOTICE: Never pull water supply hose to move
pressure washer. This could damage hose and/or
pumpinlet.
To connect the high pressure hose
1
to the spray handle
4
,
screw the hose collar
14
onto the inlet coupler
31
.
To connect the high pressure hose to the pressure washer
unit
7
, screw the hose collar
14
onto the high pressure
water outlet
32
.
NOTE: Uncoil the high pressure hose before installation to
preventkinks.
NOTE: Avoid cross threading when installing the hose. Cross
threading will causeleaks.

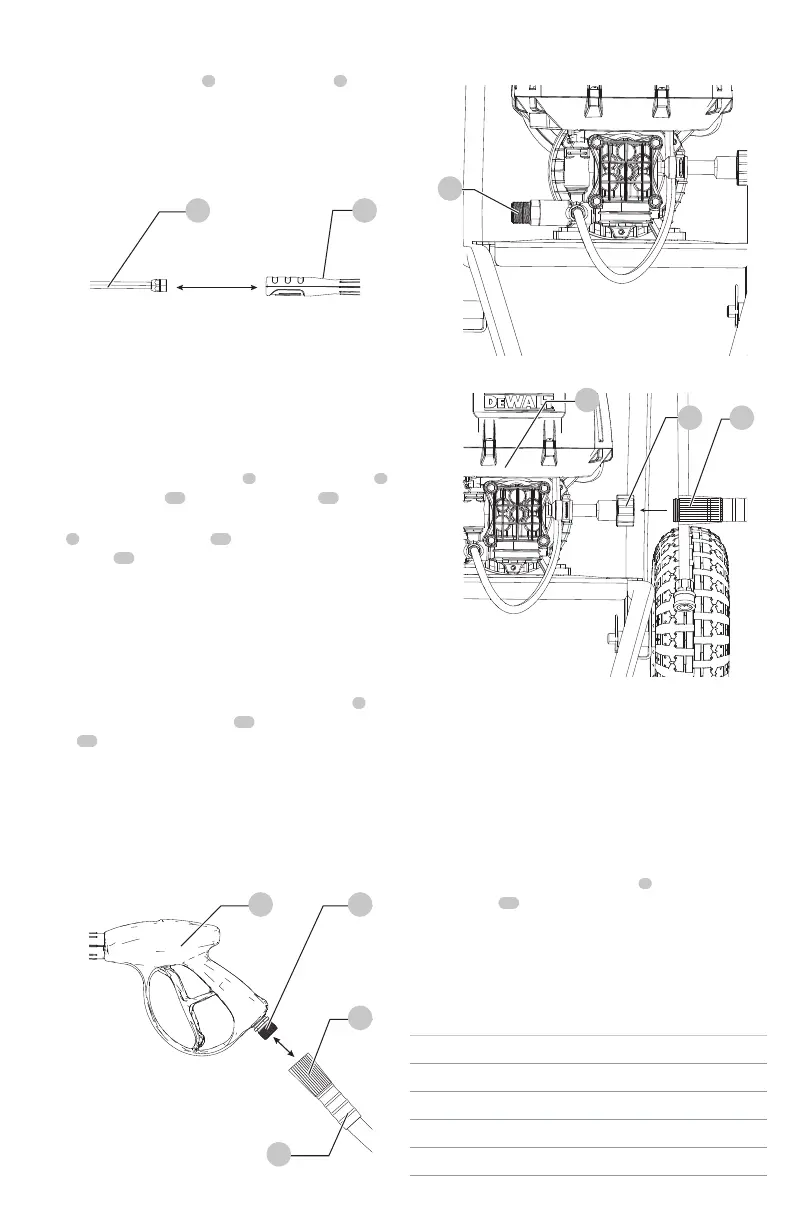

Fig.E
2 3
Attaching Garden Hose (Fig. H)
To connect a garden hose to the pressure washer unit
7
,
place the end of the garden hose
22
inside the water
intake
10
. Tighten the garden hose byhand.
Always disconnect the garden hose afterusage.
NOTE: Before connecting the garden hose to the pressure
washer unit, run water through the garden hose for thirty
seconds to clear any debris from the mouth of thegarden
pressurehose.
Fig.F
1
14
31
4
Fig.G
32
Fig.H
2210
7
Attaching Nozzles (Fig. I)

DANGER: Risk of fluid injection. Do not direct
discharge stream toward persons, unprotected skin,
eyes or any pets or animals. Serious injury willoccur.

WARNING: Flying objects could cause risk of serious
injury. DO NOT attempt to change nozzles while
pressure washer is running. Turn pressure washer unit
off before changingnozzles.
To connect a nozzle to the spray wand
2
, pull the quick
connect collar
17
toward the spray wand and insert the
appropriate nozzle. Release the quick connect collar to lock
the nozzle inplace.
To ensure nozzle is locked into place, give the nozzle a firm
tug after the quick connect collar has locked intoplace.
Spray Tip Application
15° Orange Nozzle For brick or masonry.
25° Green Nozzle For vinyl siding.
40° White Nozzle For automotive washing.
Soap Nozzle For gentle wide area cleaning.
Black Turbo Nozzle For abrasive cleaning.
