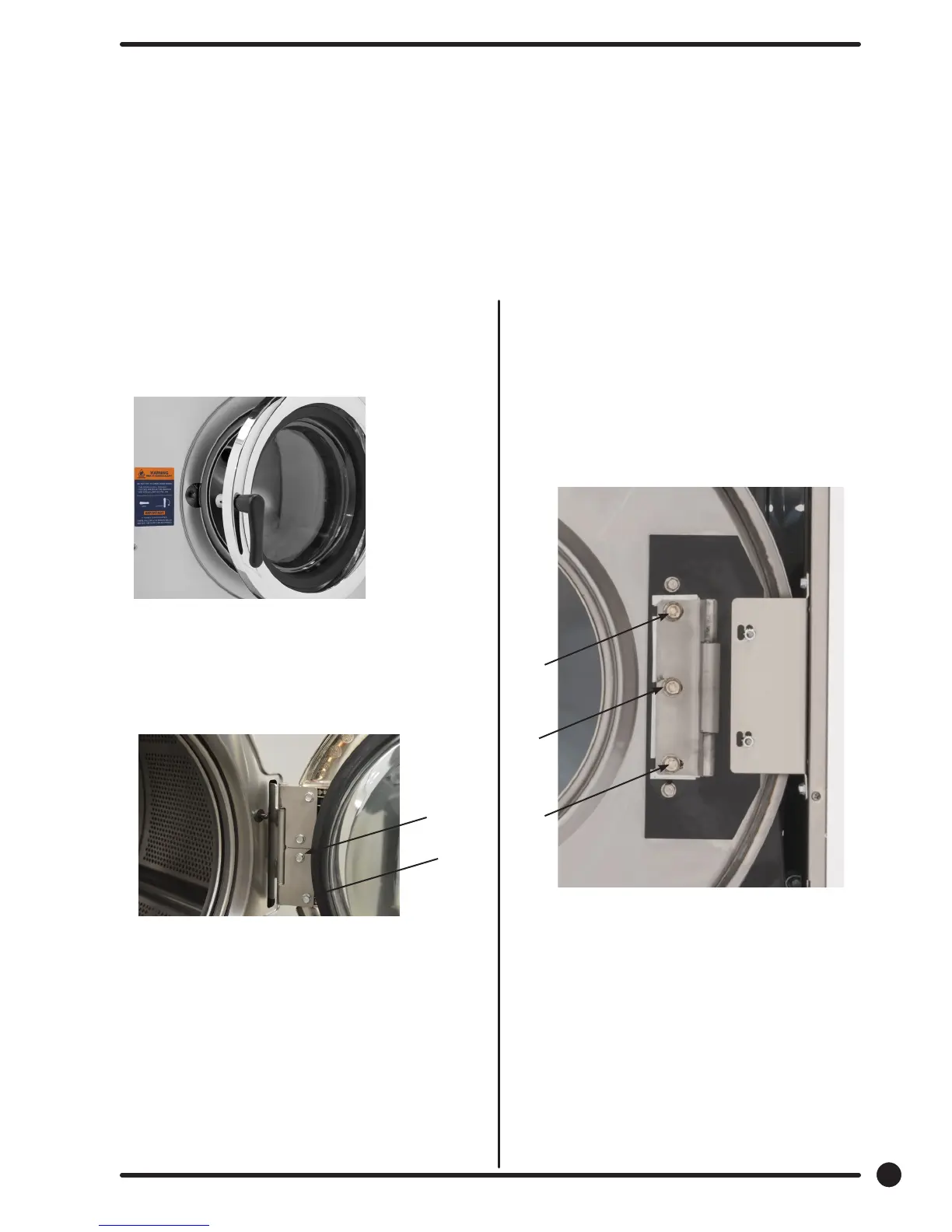

Adjusting the Loading Door
The door can be adjusted by changing the number of shims behind the door hinge and the door lock
assembly. The vertical t of the door to the tub can be altered by loosening the door hinge bolts and
raising or lowering the door before retightening. It is important for the door to be centered on the tub
front. By chalking the front of the tub and closing the door to transfer that line to the gasket, the centering
can be evaluated. It is also important for door pressure to be similar around the door perimeter. Door
pressure can be evaluated by inserting a dollar bill in several positions and tugging on it. See Parts Section
for kit to increase door sealing pressure.
Loading Door Removal
Step 1: Support door to prevent
dropping.
Step 2: Remove the bottom 2 bolts
holding the lower leaf hinge
and then remove it. The
door can now be lifted from
the upper post of the hinge
assembly.
Loading Door Hinge Removal
Step 1: First remove loading door and front
panel.
Step 2: Remove 3 screws holding door hinge.
Shims may be present between hinge
and tub front. The number may be
increased or decreased to adjust right
side door pressure.
NOTE:
Door hinge mounting bolts penetrate tub
front and require silicone sealer applied to
holes when reinstalling.
