DR4088LN-CS / GND / OPTO 2021-04-21
P 14
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz

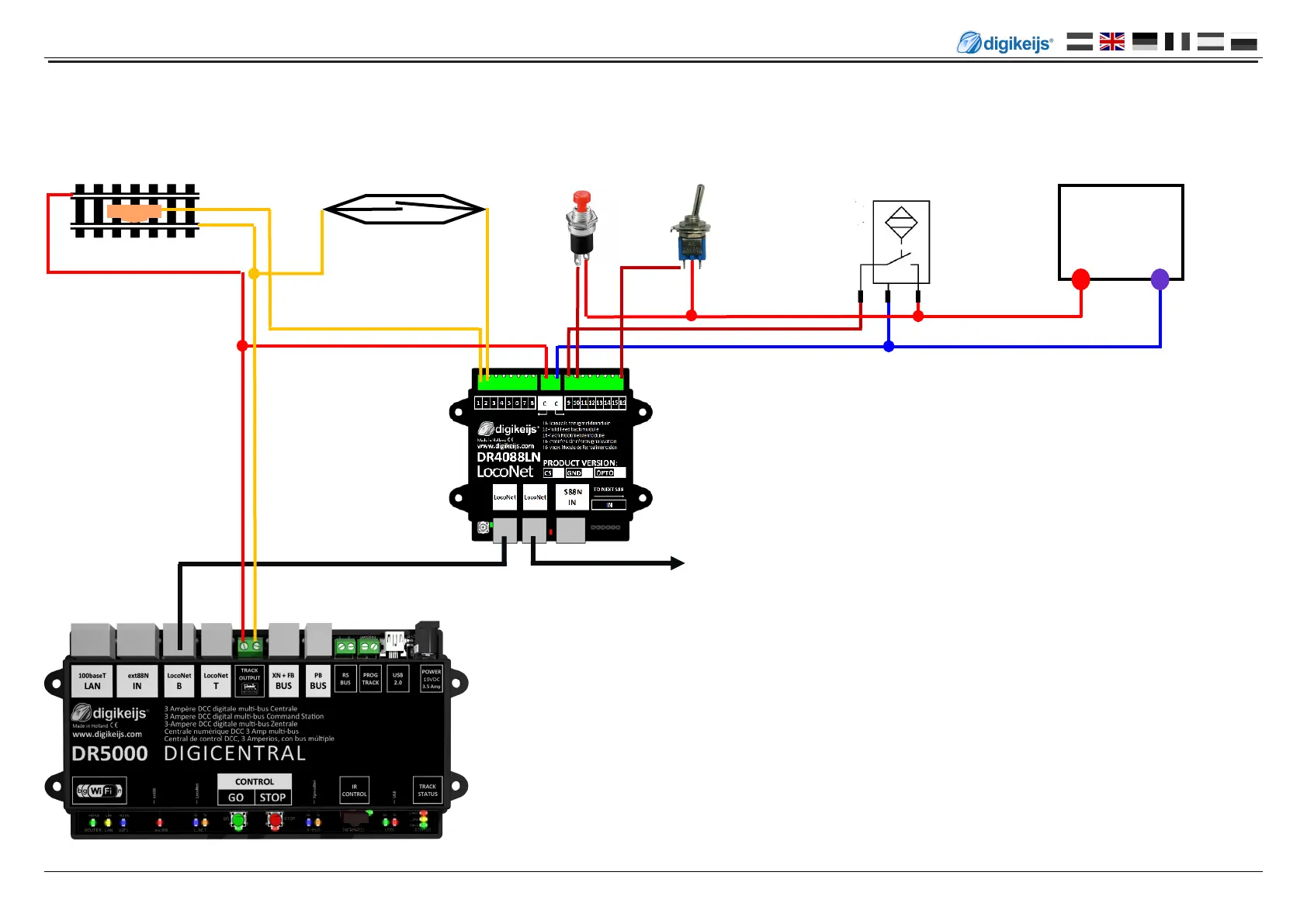

4.4 Feedback modules DR4088LN-OPTO; switch track, 2-wire track
switch track
Light barrier, Hall sensors or
the like
(posive switching PNP)
Power supply
5V-20V
DC/AC
reed contact
push buon
switch
DR4088LN-OPTO
More DR4088LN-xx
feedback unit
