Operating instructions for users
HB2500
19
Information on installation 2
GB
20 m
m
X
X + 40 m
m
57
153
Y
Y +
125 mm

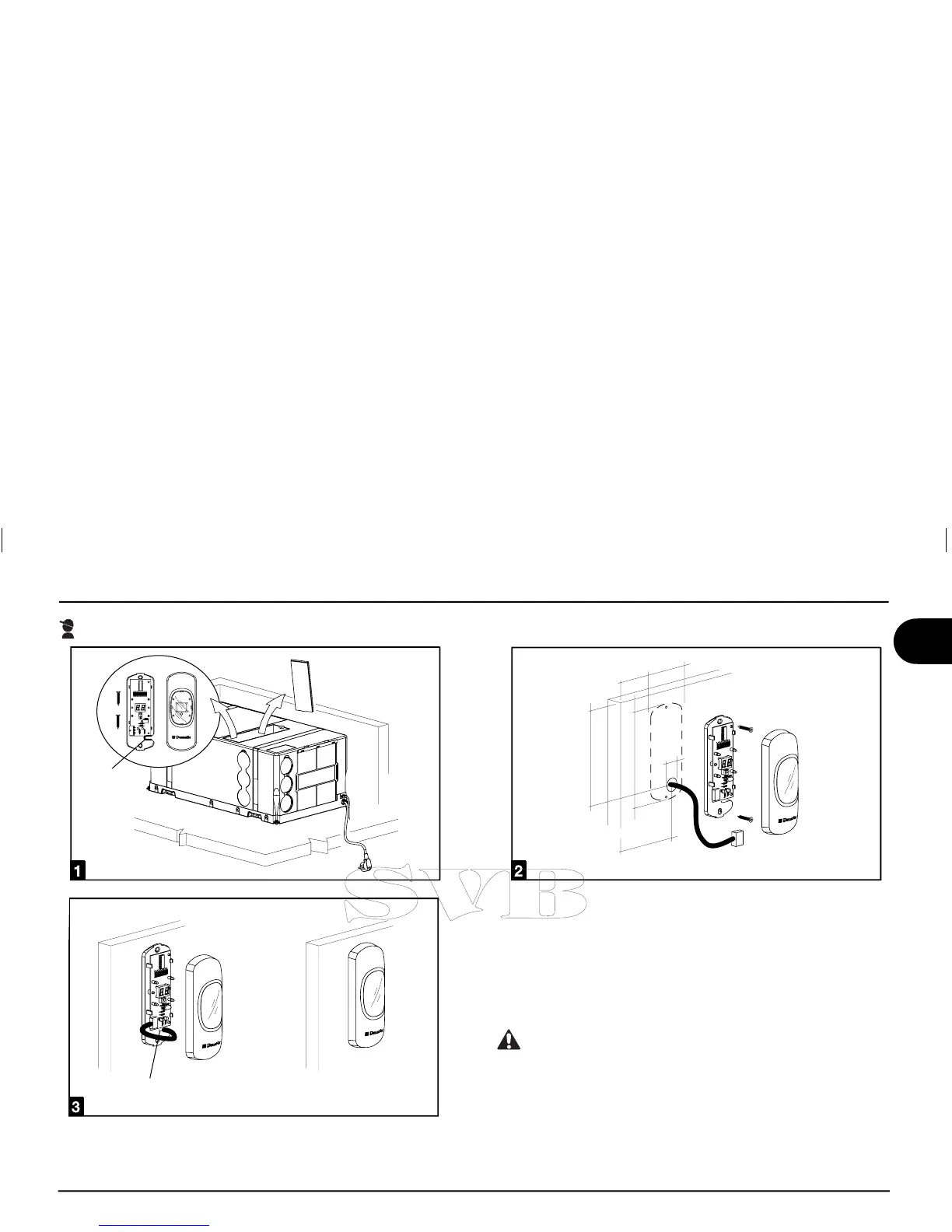

2.4. Fitting the infrared receiver
On the back of the machine there is a pocket for the infrared receiver,
remote control with batteries and support, and the panel extension. To
fi t the receiver you need to make a 20mm hole in the wall for fi xing the
receiver for the connecting cable to pass through (observe the stated
distances for correct positioning). Using two wooden screws, secure
the card support to the wall so as to hide the hole you have made. Con-
nect the extension connector to the card and lastly fi t on the receiver
cover.
The remote panel extension has different connectors at its
ends, you therefore need to pay attention when laying it so it has
the correct white connector on the receiver side. The card sup-
port must be fi tted with the cable outlet slot facing downwards
(see fi gures).
Cable
outlet slot
Cable
outlet slot
(facing downwards)
