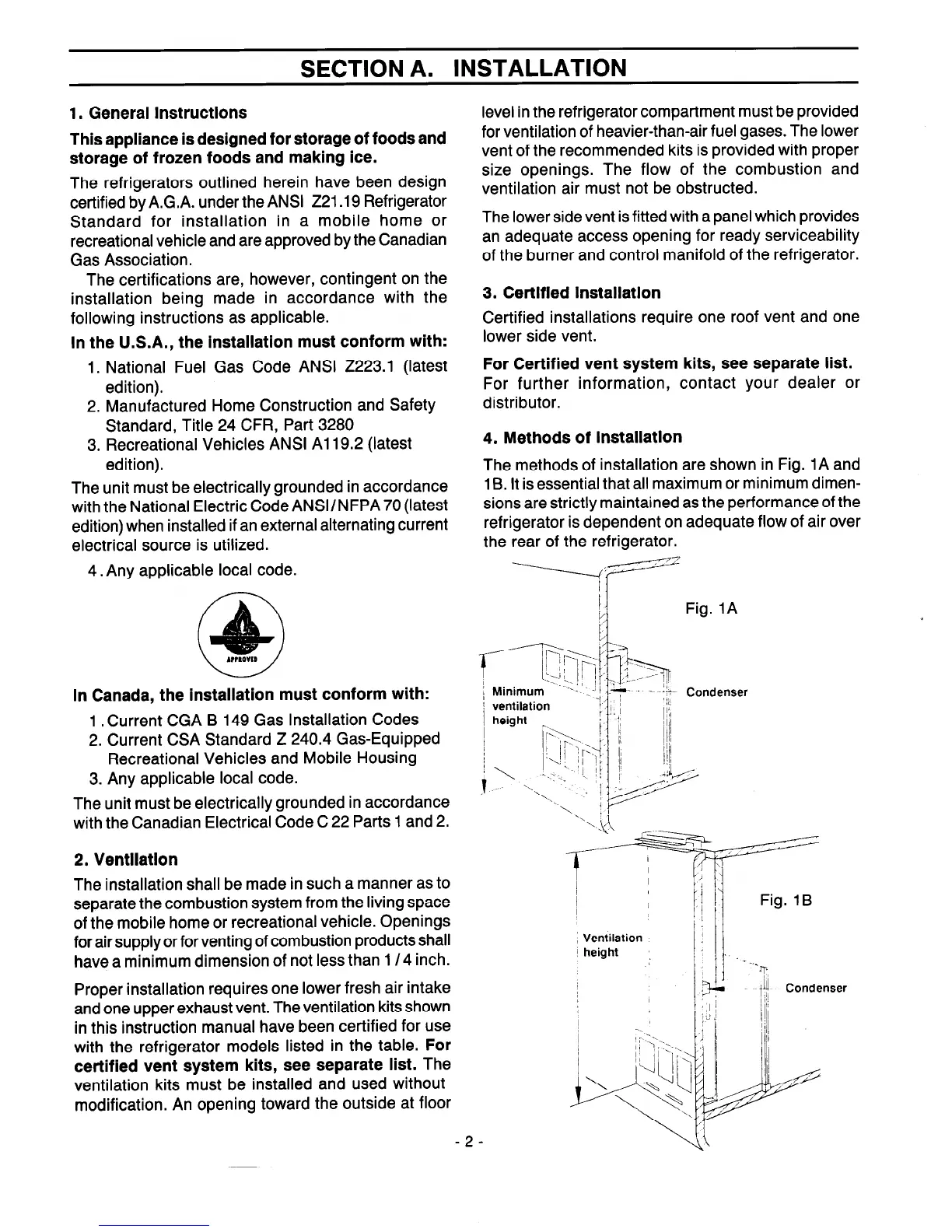

SECTION A. INSTALLATION
1. General Instructions
This appliance is designed for storage of foods and
storage of frozen foods and making ice.
The refrigerators outlined herein have been design
certified by A.G.A. under the ANSI 221 .19 Refrigerator
Standard for installation in a mobile home or
recreational vehicle and are approved by the Canadian
Gas Association.
The certifications are, however, contingent on the
installation being made in accordance with the
following instructions as applicable.
In the U.S.A., the installation must conform with:
1.
2.
3.
National Fuel Gas Code ANSI 2223.1 (latest
edition).
Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280
Recreational Vehicles ANSI Al 19.2 (latest
edition).
The unit must be electrically grounded in accordance
with the National Electric Code ANSI/NFPA 70 (latest
edition) when installed if an external alternating current
electrical source is utilized.
4. Any applicable local code.
In Canada, the installation must conform with:
1
.
Current CGA B 149 Gas Installation Codes
2. Current CSA Standard Z 240.4 Gas-Equipped
Recreational Vehicles and Mobile Housing
3. Any applicable local code.
The unit must be electrically grounded in accordance
with the Canadian Electrical Code C 22 Parts 1 and 2.
2.
Ventllatlon
The installation shall be made in such a manner as to
separate the combustion system from the living space
of the mobile home or recreational vehicle. Openings
for air supply or for venting of combustion products shall
have a minimum dimension of not less than l/4 inch.
Proper installation requires one lower fresh air intake
and one upper exhaust vent. The ventilation kits shown
in this instruction manual have been certified for use
with the refrigerator models listed in the table.
For
certified vent system kits, see separate list.
The
ventilation kits must be installed and used without
modification. An opening toward the outside at floor
level in the refrigerator compartment must be provided
for ventilation of heavier-than-air fuel gases. The lower
vent of the recommended kits is provided with proper
size openings. The flow of the combustion and
ventilation air must not be obstructed.
The lower side vent is fitted with a panel which provides
an adequate access opening for ready serviceability
of the burner and control manifold of the refrigerator.
3.
Certlfled lnstallatlon
Certified installations require one roof vent and one
lower side vent.
For Certified vent system kits, see separate list.
For further information, contact your dealer or
distributor.
4.
Methods of lnstallatlon
The methods of installation are shown in Fig. 1A and
1 B. It is essential that all maximum or minimum dimen-
sions are strictly maintained as the performance of the
refrigerator is dependent on adequate flow of air over
the rear of the refrigerator.
Fig. 1A
Ventilation
height
