TEC 30 22
user’s manual
GB
Important
Old oil moust not be disposed of in the environment, but left to a
station specialised in the disposal and/or recycling of the same,
respecting the laws in the country where the operations are carried
out.
Use oil recommended for 4-stroke Diesel engines of these types:
CCMC-D4-D5-PD2 or API-CD-CE-CF-CG or SHPD (this indication is
on the oil can).
SAE 10W-30 oil is recommended for general use at all temperatures.
If you use monograde oil, choose the appropriate viscosity on the
basis of the average temperature of the place where the generator is
installed.
To drain the old oil easier you should run the generator for roughly 3/5
minutes, in this way the oil is more fluid and will drain better through
the drain tube when you remove the drain plug. Refill the generator
with oil of the recommended type, through the oil filler.
The quantity of oil is:
0.9 Litres
3.3 Extraordinary maintenance

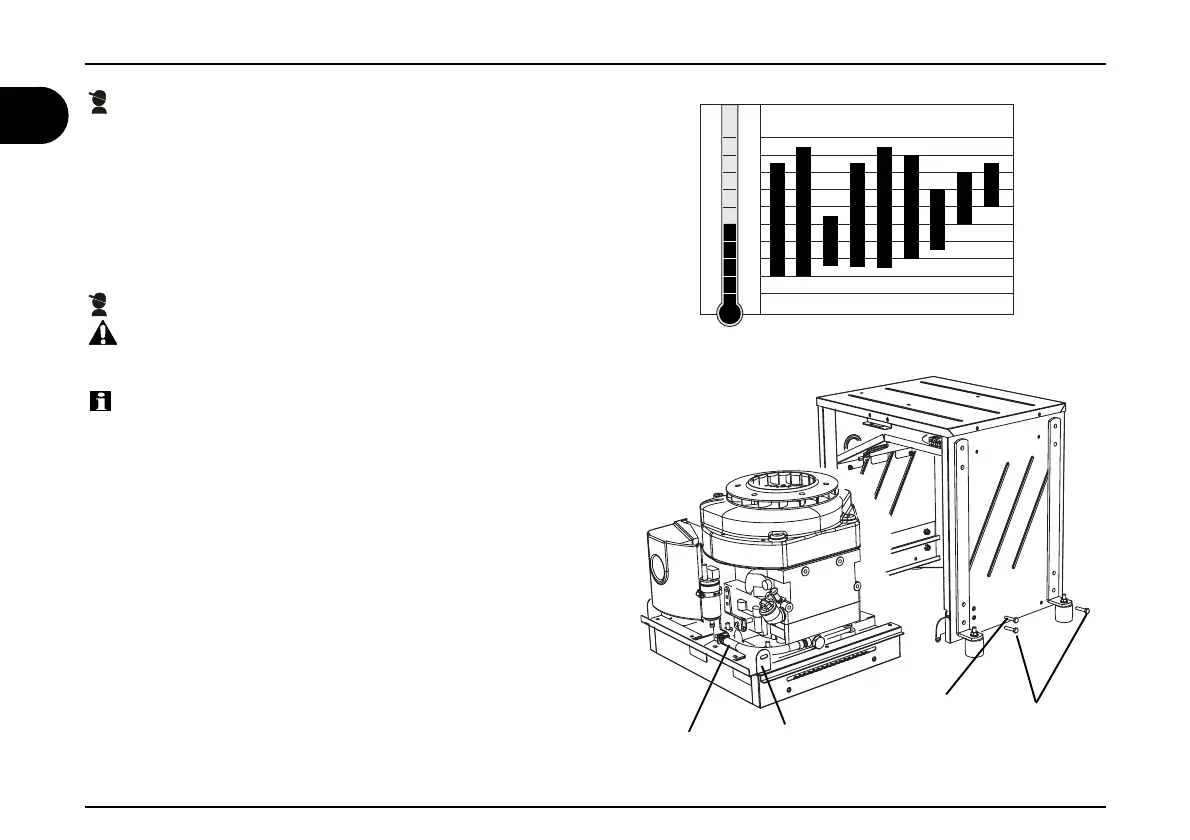

For some maintenance operations there is the possibility of pulling the
generator out by sliding the entire bottom of the generator on the guides
fixed to the sidewalls of the casing. To set the generator basis free
loosen the harness and unscrew the 4 fastening screws. The generator
unit will be extractable by ¾ of its depth. To come to a complete
extraction put the generator basis on firm ground to protect it against
possible falls and unscrew the 2 limit stop screws. Alternatively tighten
the generator basis inserting screws in inner position.
Changing the oil
Warning
• Hot oil can burn your skin!
• Check the oil level with the engine turned off.
3 Troubleshooting, maintenance, recycling
Fixing
screw
Oil drain plug
Limit stop screw
122
104
86
68
50
32
14
-4
-22
-40
50
40
30
20
10
0
-10
-20
-30
-40
˚F
˚C
5W/30
5W/40
10W
10W/30
10W/40
15W/40
20W/20
30
40
OIL : SAE
Internal position
