Vehicle Systems Specifications
7

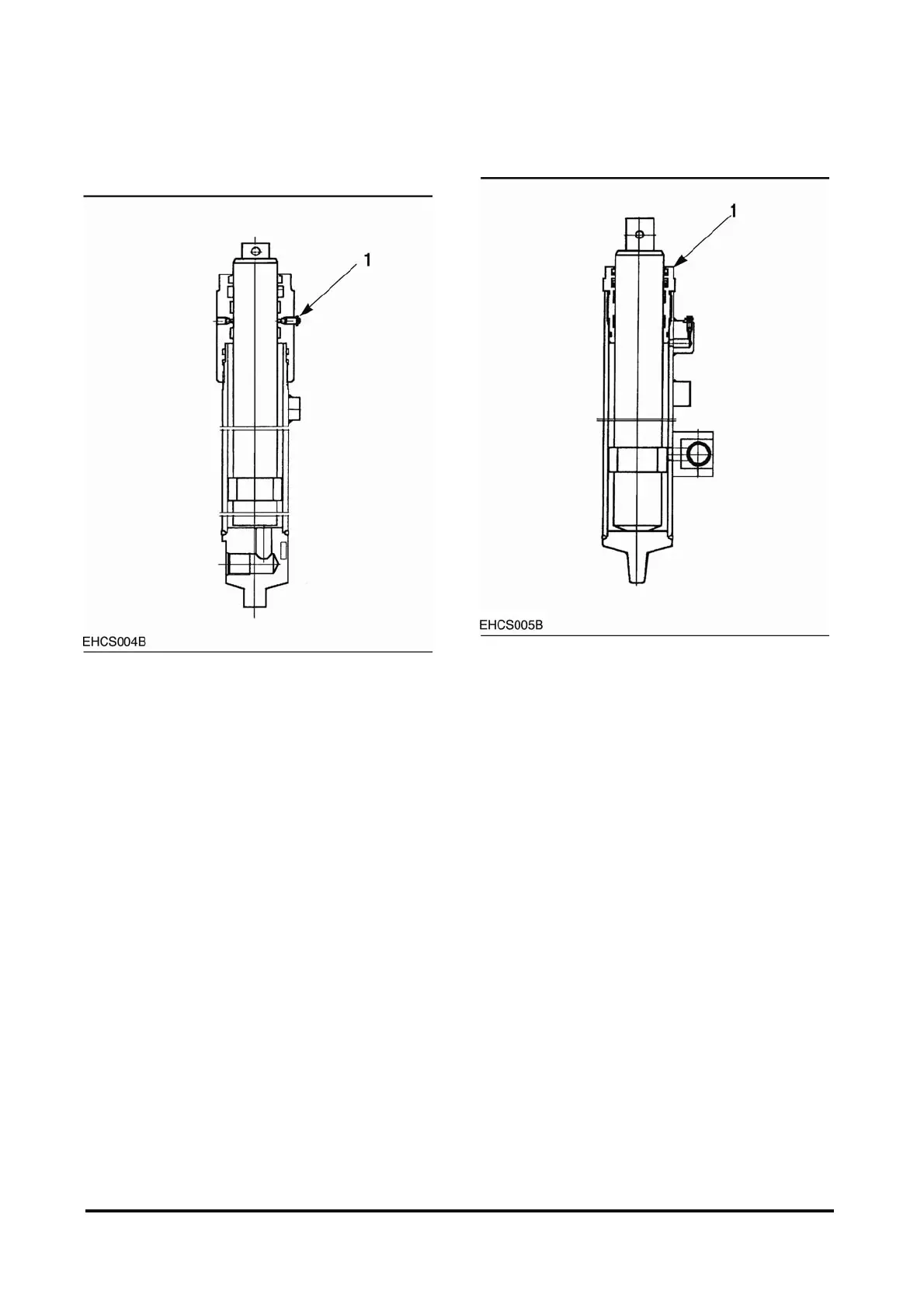

Lift Cylinders
Standard
(1) Put Pipe Sealant on the last three threads of
bleed screw and tighten to a torque of ... 6±1N•m
(53±9 lb•in)
NOTE : All seals to be lubricated with hydraulic oil.
Full Free Triple and Full Free Lift
Primary
(1) Put Pipe Sealant on the last three threads of
bearing.
(2) Put Pipe Sealant of the last three threads of
bleed screw (not shown) and tighten to a torque
of ......................................... 6±1 N•m (53±9 lb•in)
NOTE : All seals to be lubricated with hydraulic oil.
To Next Page
