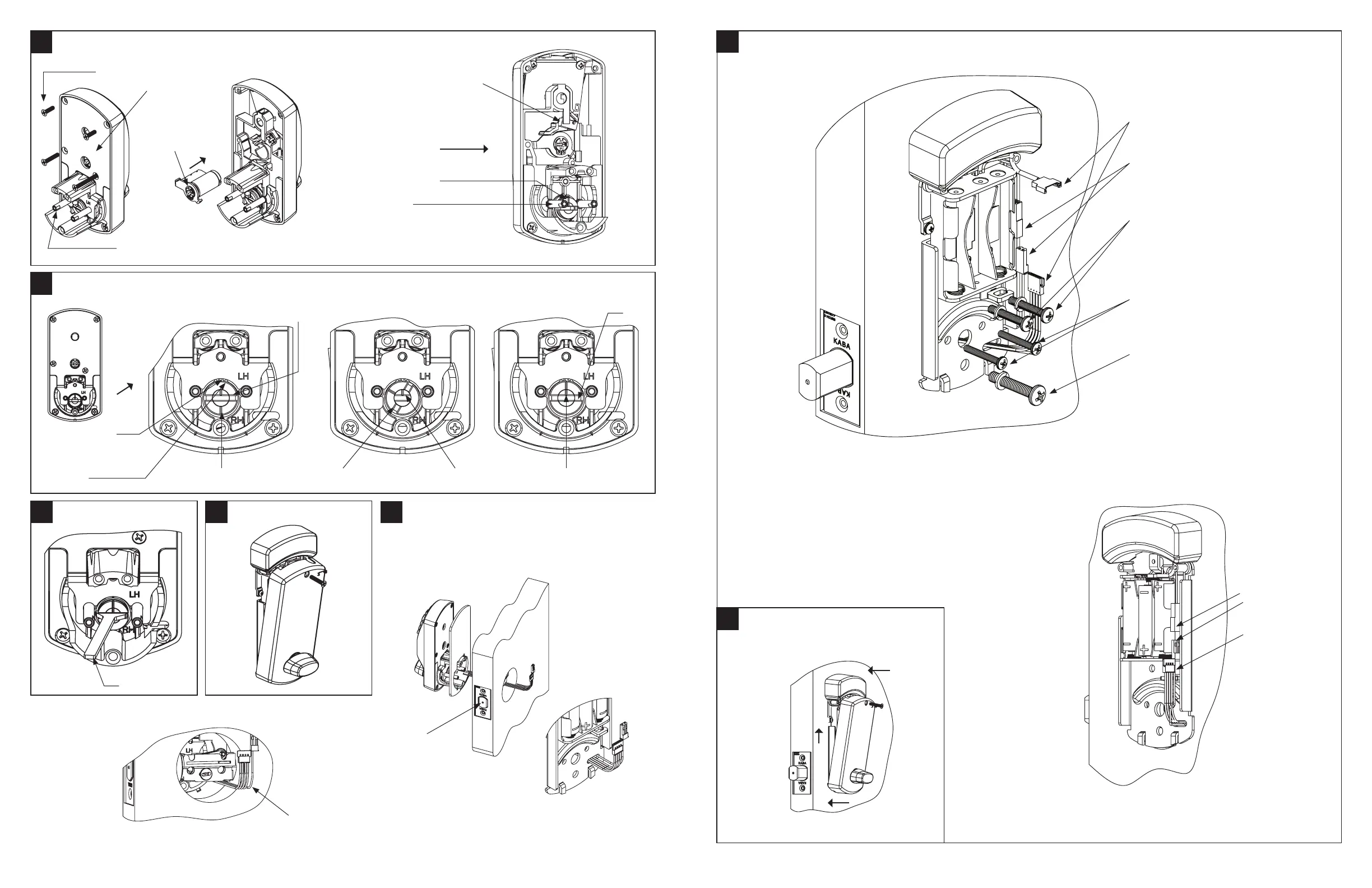

KEY OVERRIDE CYLINDER
If cylinder is not already assembled in the lock,proceed as follows:
ADJUST LOCK HANDING ON OUTSIDE HOUSING ASSEMBLY
4. Wire must not be pinched
when re-installing back plate
5. Re-assemble back plate using
screws as shown
1. Remove 4 screws
2. Remove back plate
May be necessary to
loosen post to remove
back plate
“Retaining ring”
opening at 12 o’clock
“Wire ring” opening far
from slot
Groove at 6 o’clock Groove at 12 o’clockRotate to change
from RH to LH
Hold from rotating
Slot Slot
If required, re-tighten post
while making sure not to
pinch retaining ring
Override Switch
WARNING
Posts are mandatory for Fire
Certification and should never
be removed.
Right hand (RH) Left hand (LH)
Install key cylinder
4
5
ASSEMBLE TAIL PIECE REMOVE INSIDE COVER ASSEMBLE OUTSIDE HOUSING
Click in place
Run cable through door
and under the dead bolt
Remove tape
Run cable through inside
trim back plate slot
6 7 8
INSTALL INSIDE TRIM ASSEMBLY
INSTALL INSIDE COVER
9
10
Connect W1 to W2 (Communication)
Connect V1 to V2 (Power)
Use short 8-32 screws on door thickness
1 ⁄" ≤ THK ≤ 1 ⁄"
Use Long 8-32" screws on door thickness
1 ⁄" < Thk ≤ 2.0"
Use short 6-32 screws on door thickness
1 ⁄" ≤ THK ≤ 1 ⁄"
Use long 6-32" screws on door thickness
1 ⁄" < Thk ≤ 2.0"
Use short 12-24 screw for thickness
≤ 1 ⁄ (using the long screw for door
≤ 1 ⁄ will damage the mechanism)
1. All screws should be tightened properly
2. Connect batteries after tightening all screws
3
1
2
V2
V1
W1
PK3700
2018-06-29 Page 2 of 4
