Dräger Babylog 8000 Service Manual

Dräger Medical AG & Co. KGaA 6173.3
All rights reserved. Copyright reserved.
_ _Printed on_18.05.05_F61733XXT01.fm
15
Function description Babylog 8000
2.2 Block Diagram of the Components in
Babylog 8000/Babylog 8000 plus with EL Display

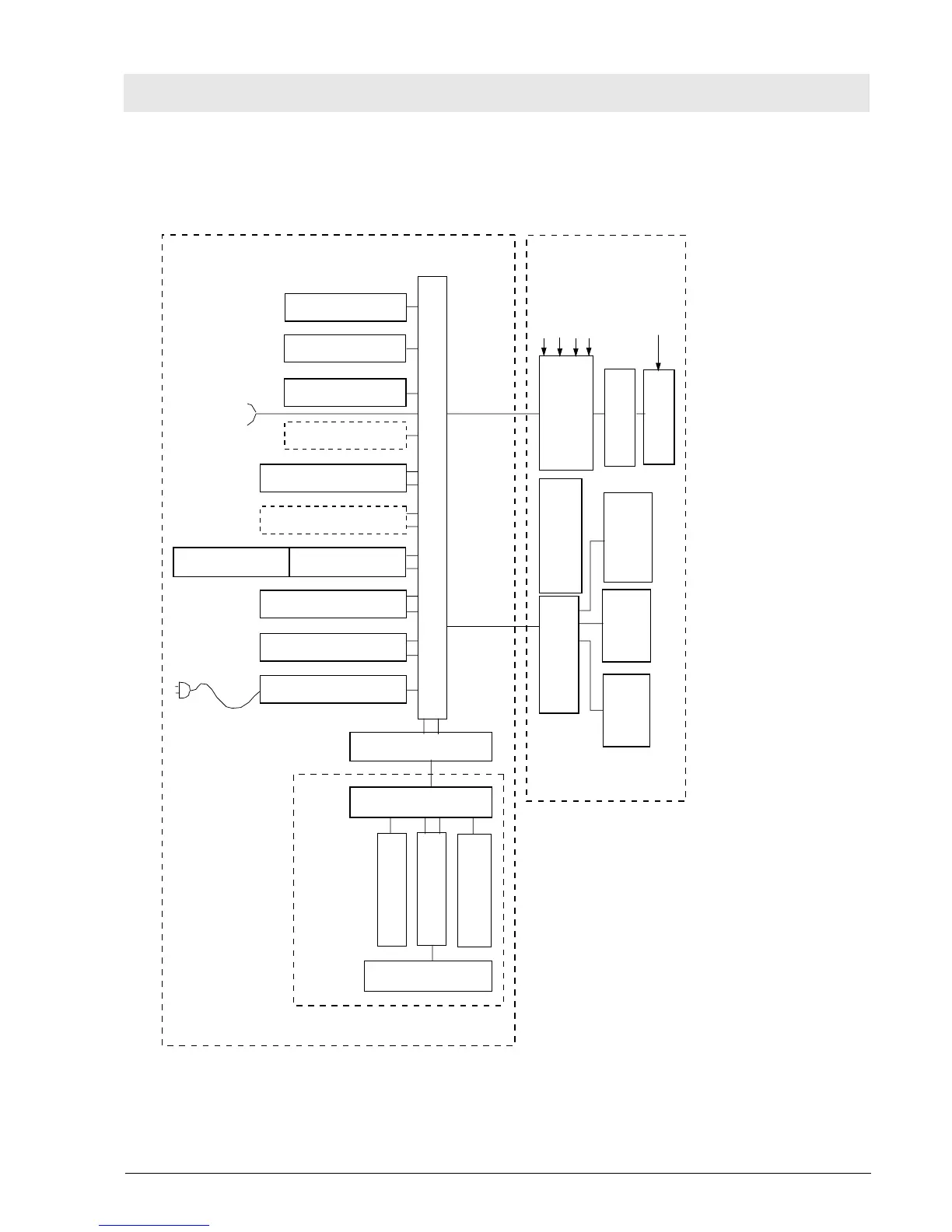

Fig. 2: Block diagram of the Babylog 8000/Babylog 8000 plus with EL display
Elektronic unit
Front
Pneumatic unit
Loud speaker
Battery
Fan
RS232 PCB
CPU 68000 PCB
Ccommunication PCB
Watch dog PCB Monitoring PCB
Flow PCB
I/O PCB
Power supply PCB
Flow connector
LP Mutterboard
Frontadapter PCB
Front PCB
Monitoring field
ELD converter
Potentiometer field
EL display
Pressure sensor PCB
O2 amplifier
O2 sensor
Pneumatic Analog PCB
Pneumatic amplifier PCB
Patient unit heating
PEEP/PIP
Valves
pressure AIR
pressure O2
Pinsp
Pexsp
Vol.% O2
Power cord

Dräger Babylog 8000 Specifications

General

Leak Compensation	Yes
Type	Ventilator
Pressure Range	0 to 80 mbar
Tidal Volume Range	2-2000 mL
Frequency	1-150 breaths/min
Inspiratory Time	0.1-3.0 sec
PEEP	0 to 20 mbar
FiO2 Range	21-100%
Power Supply	100 to 240 V AC, 50/60 Hz
