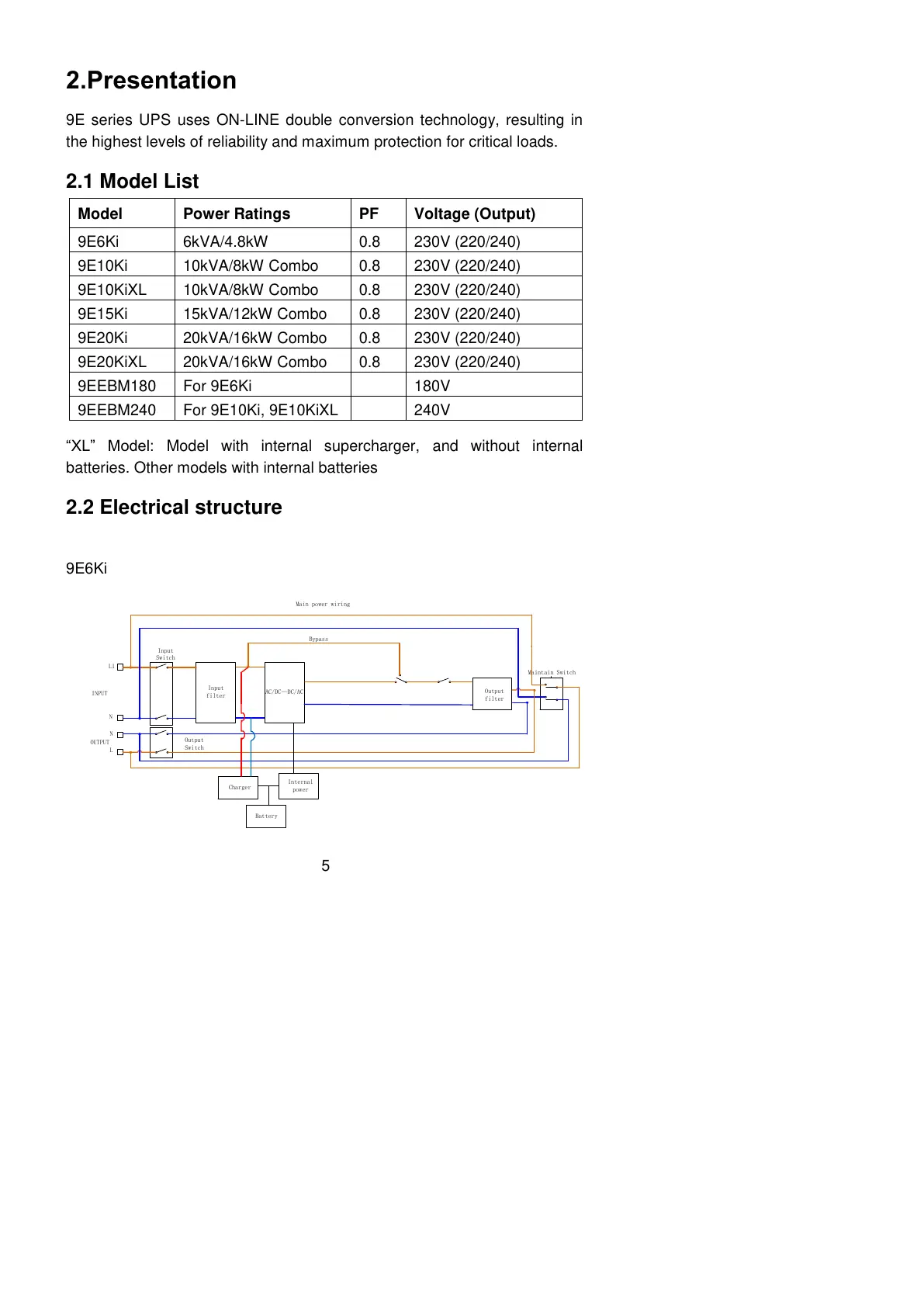

2.Presentation
9E series UPS uses ON-LINE double conversion technology, resulting in
the highest levels of reliability and maximum protection for critical loads.
2.1 Model List
Model
Power Ratings
PF
Voltage (Output)
9E6Ki
6kVA/4.8kW
0.8
230V (220/240)
9E10Ki
10kVA/8kW Combo
0.8
230V (220/240)
9E10KiXL
10kVA/8kW Combo
0.8
230V (220/240)
9E15Ki
15kVA/12kW Combo
0.8
230V (220/240)
9E20Ki
20kVA/16kW Combo
0.8
230V (220/240)
9E20KiXL
20kVA/16kW Combo
0.8
230V (220/240)
9EEBM180
For 9E6Ki
180V
9EEBM240
For 9E10Ki, 9E10KiXL
240V
“XL” Model: Model with internal supercharger, and without internal
batteries. Other models with internal batteries
2.2 Electrical structure
9E6Ki
INPUT
OUTPUT
N
L
N
L1
Input
filter
AC/DC—DC/AC
Output
filter
Internal
power
Charger
Battery
Input
Switch
Bypass
Maintain Switch
`
Output
Switch
Main power wiring
