7
EATON IB528001EN Installation instructions
Installation Instructions - Arena Series

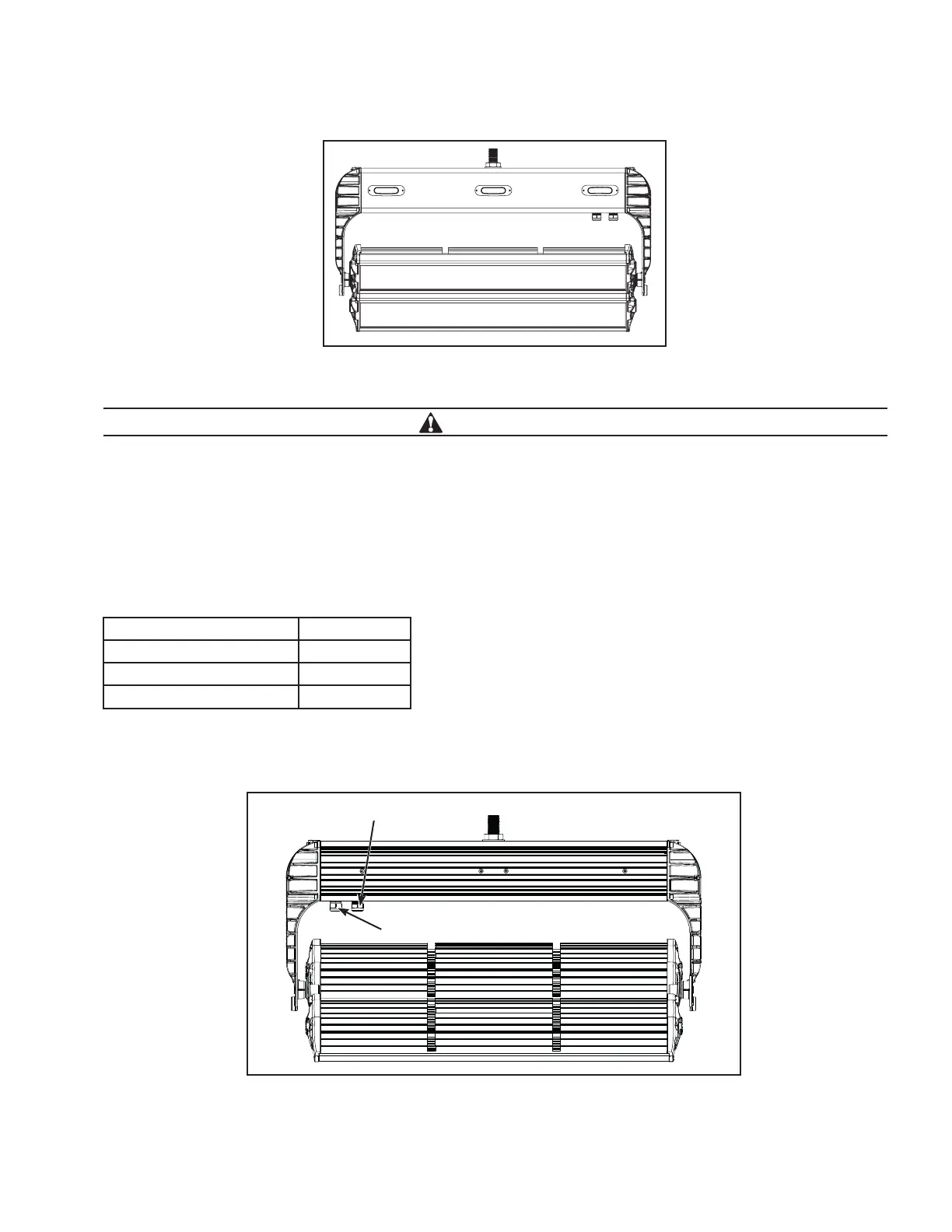

LabelFigure 4.
Step 3 – Make Electrical Connections
WARNING
Never connect the luminaire to an electrical system that is not grounded. Installing a luminaire in an ungrounded
electrical system could allow the metal housing to become energized in the event of an electrical short, resulting
in the risk of electrical shock for anyone who comes into contact with the Luminaire. FAILURE TO FOLLOW THIS
WARNING MAY LEAD TO DEATH, SEVERE INJURY, OR PROPERTY DAMAGE.
Electrical Power & Control Connections
Wiring connections:
Connect the incoming power wires to the Luminaire power wire. See the table below for the color designation.
Luminaire power wire color Designation
Black Line
White Line or Neutral
Green Ground
ote:N When power is turned on, the sports luminaires (Arena, Arena Pro) default to 100% on unless a different control signal
is present. Prism fixtures remain off until they detect a DMX signal.
Power wiring connections
Label Here
Figure 5. Electrical
Control Cable (if applicable)
Power Cable
To Next Page
