Eaton MDS-632 User Manual

I.B. 2C12060H08
For more information visit: www.EatonElectrical.com
Instruction Book
Effective: May 2006
Page 8
■ No Electrical Connections Made
■ Breaker On Extension Rails
■ Remove or Inspection Position
Circuit
Breaker
Side View
Secondary
Connection Not Made
Rear of
Compartment
Primary
Connections
Not Made
Compartment
Front Door
Circuit Breaker
Out of Compartment
On Extension Rails
Secondary
Connection
Not Made
Circuit
Breaker
Side View
Rear of
Compartment
Primary
Connections
Not Made
Compartment
Front Door
■ Only Ground Connection Made
■ Breaker Still Behind Door
■ Typical Storage Position
Circuit
Breaker
Side View
Secondary
Connection Made
Rear of
Compartment
Primary
Connections
Not Made
Compartment
Front Door
■ Breaker and Trip Unit Testing
■ Primary Connection Not Made
■ Secondary and Ground Connections Made

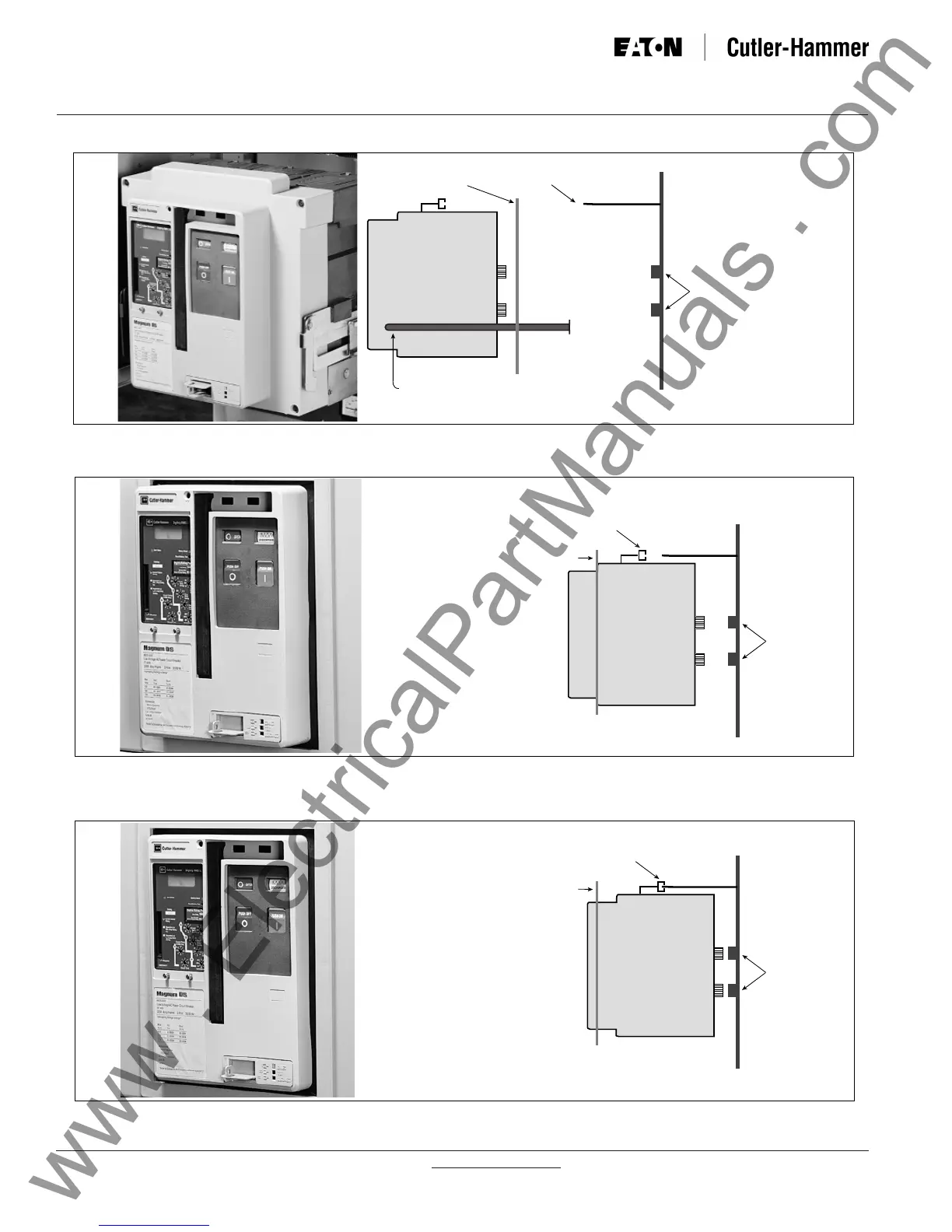

Figure 2-6 Remove Position
Figure 2-7 Disconnect Position
Figure 2-8 Test Position
