Eaton Network Management Card User Manual

Network Management Card
– User Manual 34003991XT_EN/EF Page 18/127
Ethernet Port
LED Colour Activity Description
ACT Green
Off Card not connected to the network.
On Card connected to the network but without activity
Flashing Port is active in receiving / transmission
100M Orange
Off Port operating at 10Mbits/s.
On Port operating at 100Mbits/s.
Settings/Sensor Port
LED Colour Activity Description
UPS Green
Off Card startup in progress.
Data
On Communication with UPS in progress
Flashing Normal operation. Communication with the UPS is operational
RS232 Orange
Off Configuration menu is active
On Normal operation. Configuration menu is deactived
Flashing Communication with the Environment Sensor (option).
2.3 Installation in the UPS
The Network Management Card (Network-MS) is "hot-swappable". It can be installed in all UPSs of the EATON
Pulsar series or EATON Powerware series equipped with a Minislot without having to shut it down.
On the UPS, remove the cover from the Minislot

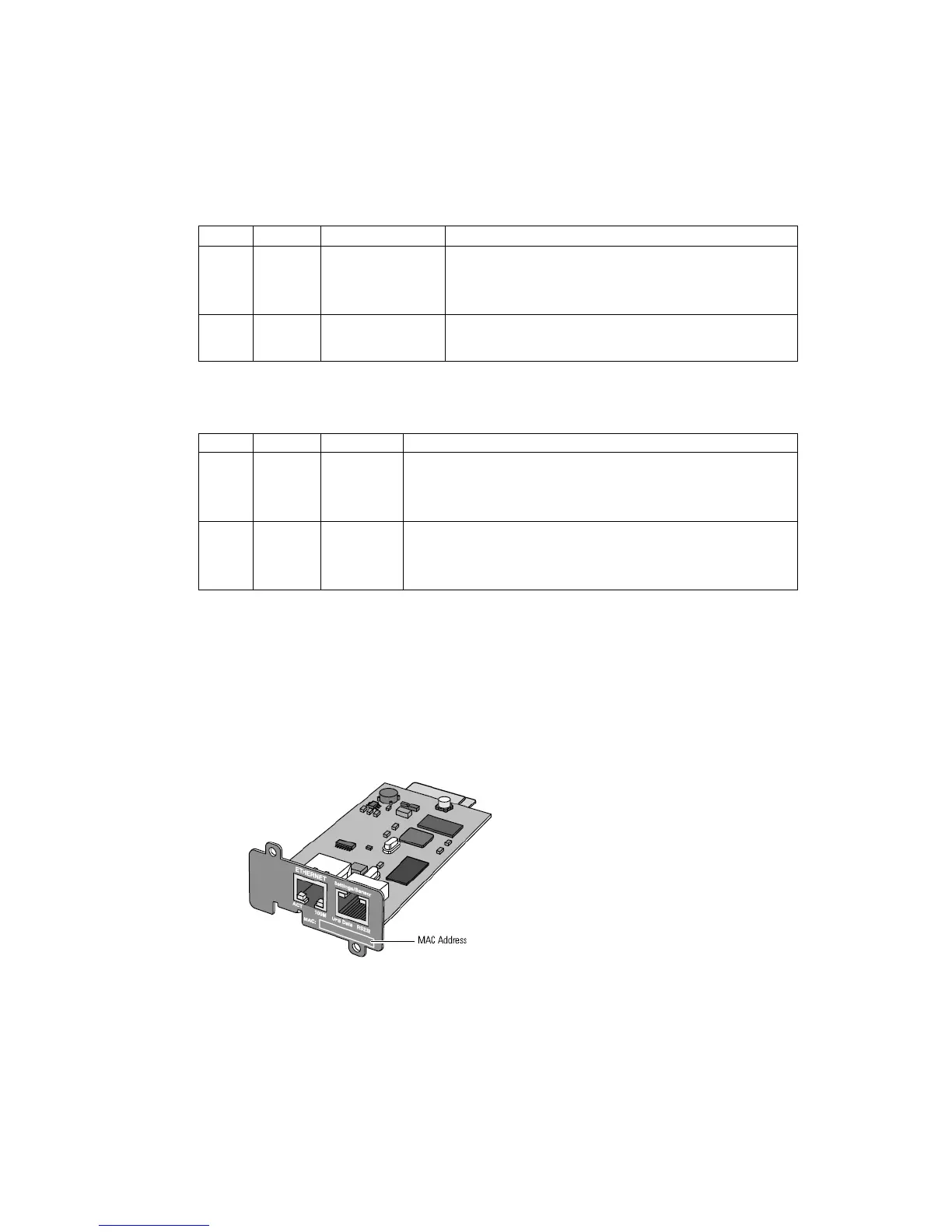

Note the card's MAC address
Insert and tighten the card's retaining screws
Connect the ETHERNET cable
Wait 2 min. the card is completely operational when the green UPS Data LED flashes continuously

Eaton Network Management Card Specifications

General

Model	Network Management Card
Operating Temperature	0°C to 40°C (32°F to 104°F)
Network Protocols	TCP/IP, HTTP, HTTPS, SNMP, SMTP, Telnet, SSH
Management Interface	Web-based, CLI
Security	SSH
Firmware Upgrade	Remote firmware upgrade
Event Logging	Yes
Environmental Monitoring	Optional environmental sensor support
Communication Interface	Ethernet (10/100Base-T)
Remote Monitoring	Yes
Remote Control	Yes
Alerting	Email, SNMP traps
Management Features	Automated shutdown
Power Requirements	Powered by connected UPS
Humidity	95% non-condensing
