EDAN iM3 Service Manual

Vital Signs Monitor Service Manual Disassembling the Monitor
- 55 -
○

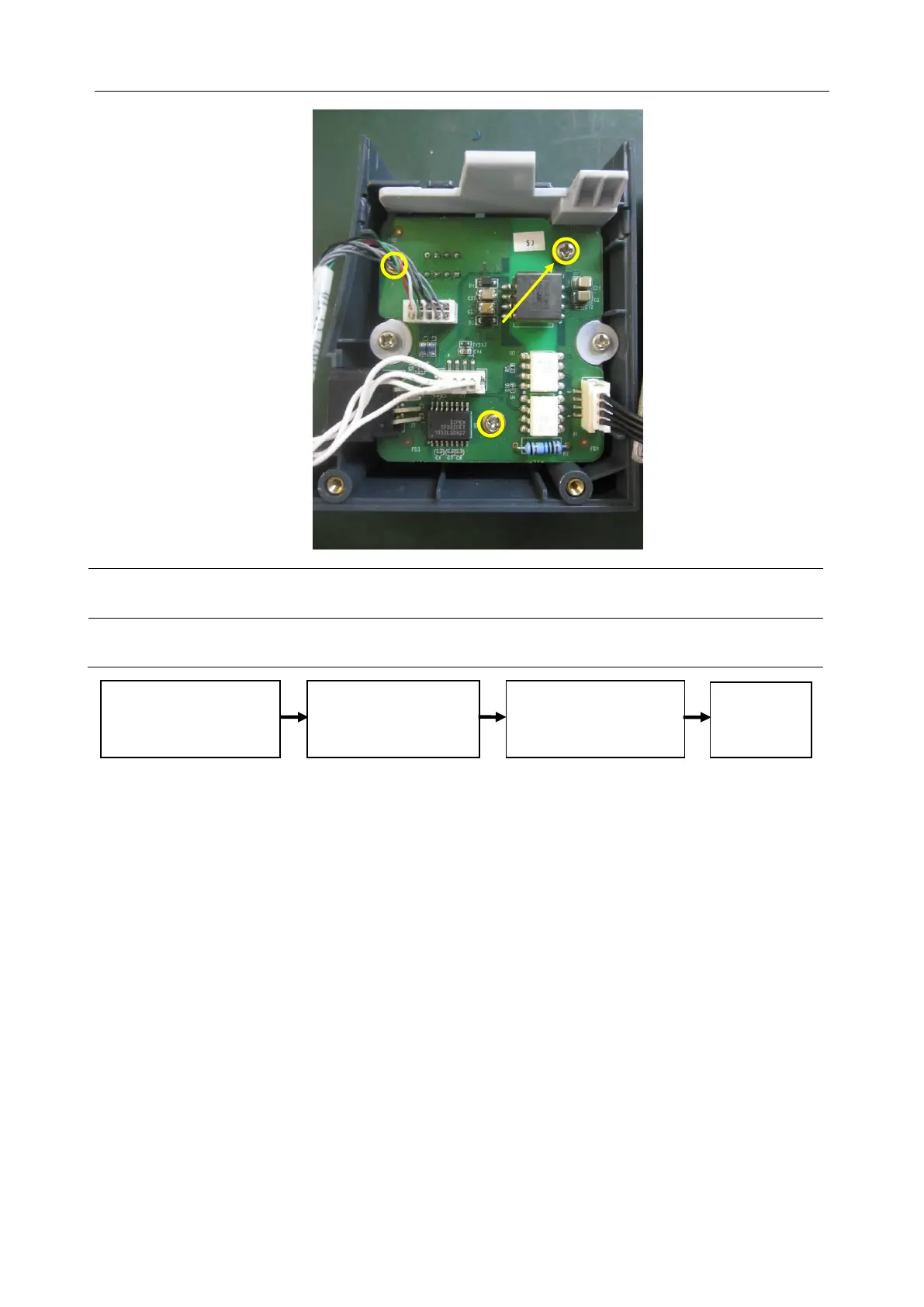

1
Screws
○
3
Wire linking M50 main board and
NELL-1 module
○
2
Wire linking iM3 parameter
board and TEMP module
○
4
Wire linking T2A main board and
interface board
Assemble iM3 isolation board or T2A main control board in the reversed order, and fix the
module components.
Disassemble the
monitor to get the
plug-in components
Separate the bottom
base outward and
remove linking wire
Replace
T2A
module
Remove the screws
and tilt up & take
out top cover
○
1
