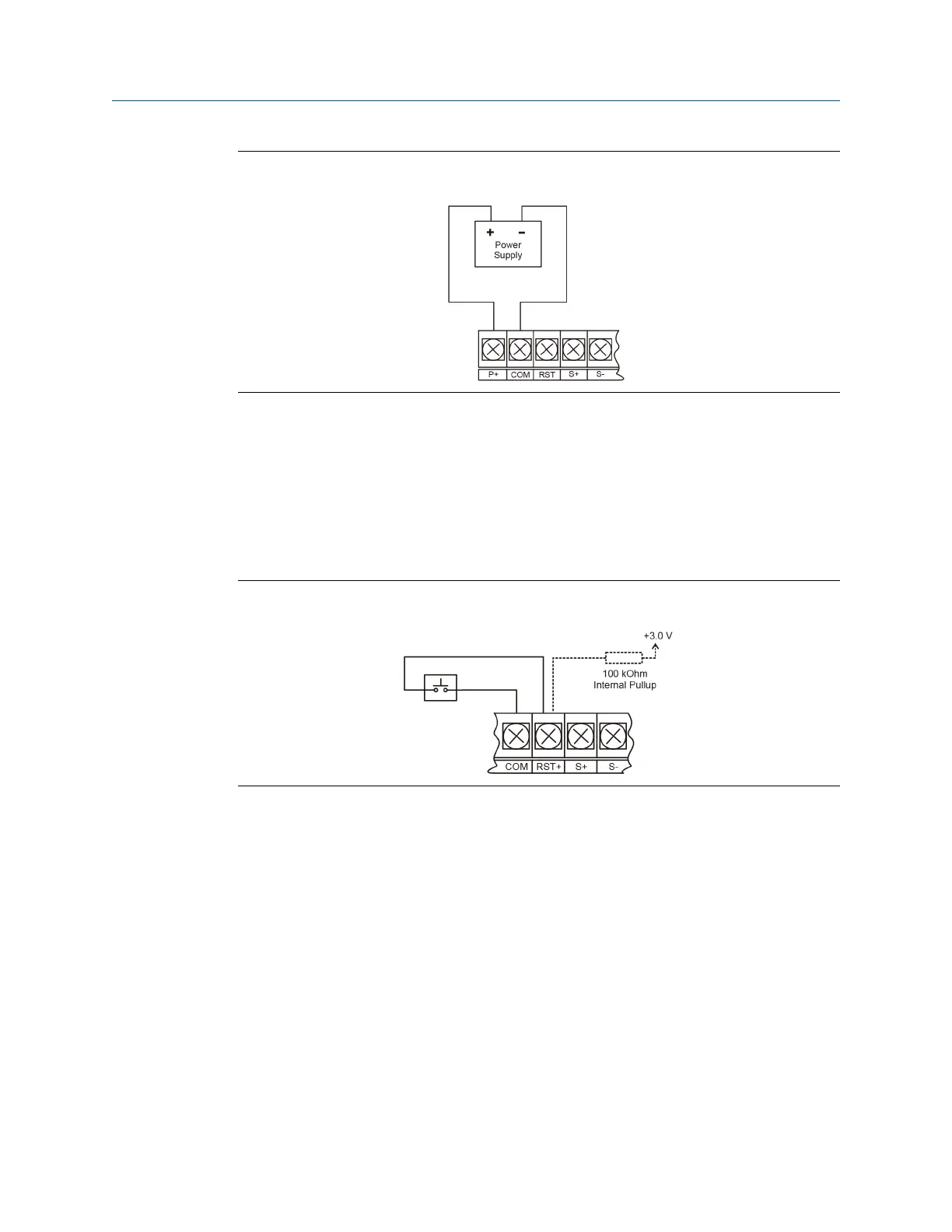

DC power connectionsFigure 3-8:
3.4 External reset connection
External reset connections are made between RST and COM. Connect to a contact closure
source such as a relay or a push button as shown in Figure 3-9. Avoid extended contact
closure to preserve battery life. The total is reset when the button is pressed. The meter
starts to totalize immediately. Holding down the button has no effect on the total.
Reset connectionsFigure 3-9:
3.5 4-20 mA transmitter output connections
Output connections are made to two terminals labeled LP+ and LP-. Connect to an input
device such as a remote display or chart recorder as shown in the figure below.
Product connections
User manual 19
