6.8.4 Multi-point linearization (noPtS)
Up to 32 linearization points can be selected under the noPtS function. Use multi-point
linearization to linearize the display for non-linear inputs. Enter linearization data using a
known accurate signal source (InP 1-32) and enter the required/corresponding meter
reading (dSP 1-32) for that input signal level. These points are established via direct entry
(SCALE) or with an external calibration signal (CAL).
Calibration units (CAL UNITS)
Enter the units associated with the desired scale values. Selecting this unit allows the
meter to perform automatic unit conversions.
Pulse input time unit (timE UNIT)
This is the time component to be used when calibrating a number of input pulses per time
unit to equal a certain display value.
For example, if the inputs being entered in pulses/second the time unit would be set to
seconds.
6.9 Total reset (T RESEt)
Select from total and grand total reset menu choices.

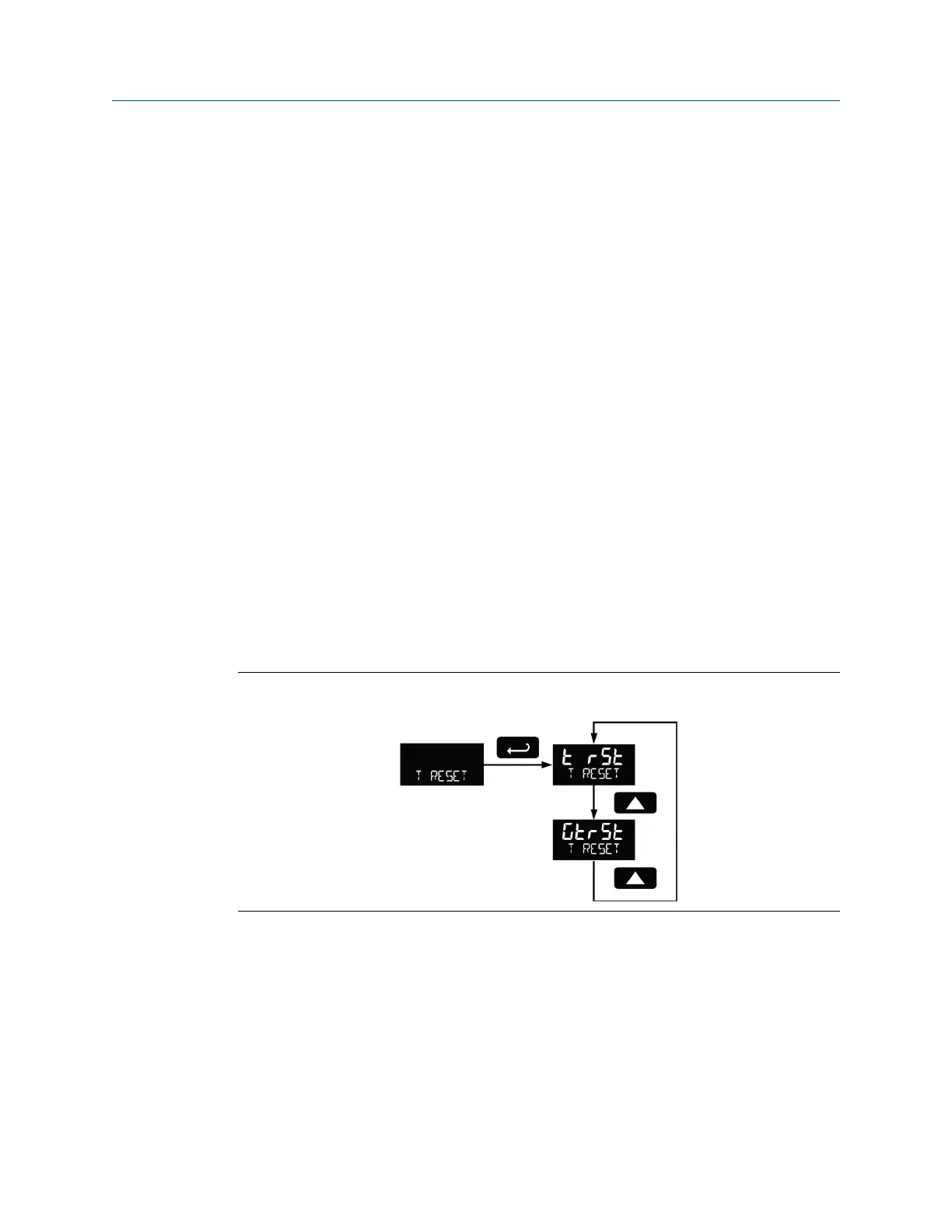

Total Reset menuFigure 6-10:
6.9.1 Manual or automatic total reset function (t rSt)
Select T RESEt> t rSt > mAn for manual reset and select enable (EnAbl) or disable (dSAbL)
using the Up arrow key. Press the Enter button to accept. Disabling reset will avoid
inadvertent resets of the total via the front reset button or external reset contact.
Product advanced features
User manual 71
