page | 7
POWER MODE
Power state can be toggled using the front Power Button, 12V input, or Audio Sensing. The method for power toggle
is set by using the Power Mode Switch on the rear of the amplifier. See Power Mode Switch under Rear Channel
Features for information on the operation of each mode.
Note: The front panel power button is inoperative when the 12V Trigger or Audio Sense power modes are selected.
EA
-
DYN
-
2D
-

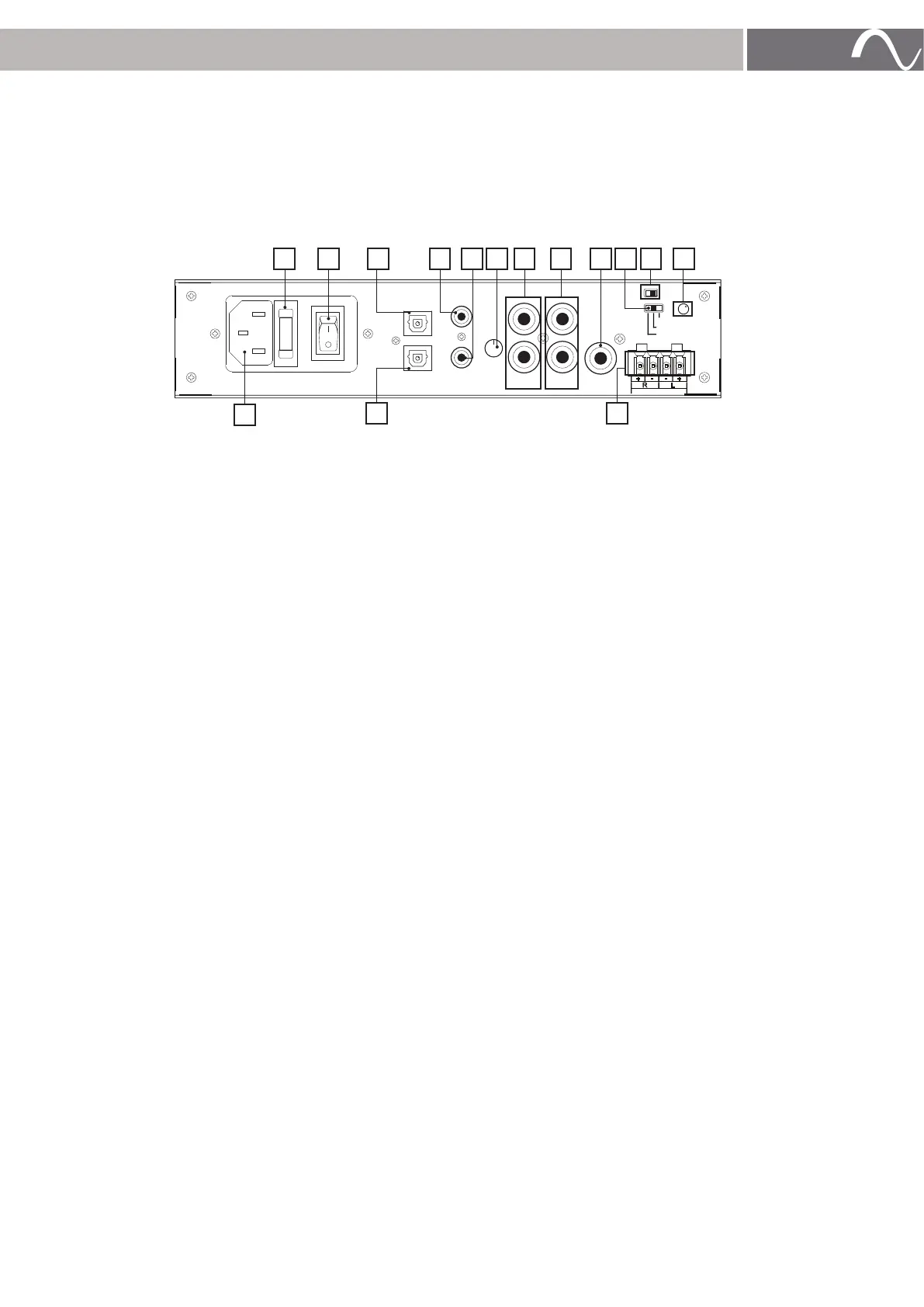

200 FEATURES
I N
LEVEL
R
L
SUBOUT
DC 12V
TRIGGER
ON
AUDIO
12V
IN
OUT
IN
AC POWER 100V-240V ~50-60Hz 68W
CLIP
LINE IN
OPTICAL
R L
+
-
OUT
+
-
OUT
OPTICAL
FUSE RATING T6.3AH 250V
EA-DYN-2D-200
A. POWER INPUT
B. FUSE
C. MASTER POWER SWITCH
D. OPTICAL INPUT
E. OPTICAL LOOP OUT
To be sent to other amplifiers.
F. DC 12V TRIGGER IN/OUT
Turns amplifier on when 12V DC is applied and power mode switch is set to 12V. This 12V signal is regenerated
to the 12V out for triggering additional amplifiers.
G. GLOBAL INPUT
Amplify outputs from any stereo source across any or all channels.
H. GAIN CONTROL
I. ANALOG LOOP OUT
To be sent to other amplifiers.
J. ANALOG INPUT
K. SUB OUT
Low level loop out for pairing with subwoofer in 2.1 system crossed over at 200Hz.
L. POWER STATE SWITCH
12V - Turns on when +12V is received at Trigger input.
AUDIO
Turns on when a minimal amount of audio signal is detected. Will power off after 15min of no audio.
ON
Turns ON/OFF via front power button.
M. INPUT SWITCH
Choose between Line and optical by zone.
N. CLIP INDICATOR
Available by zone.
O. SPEAKER TERMINAL
A
D O
F GEB C KH I J M NL
© 2019 Episode®
