7

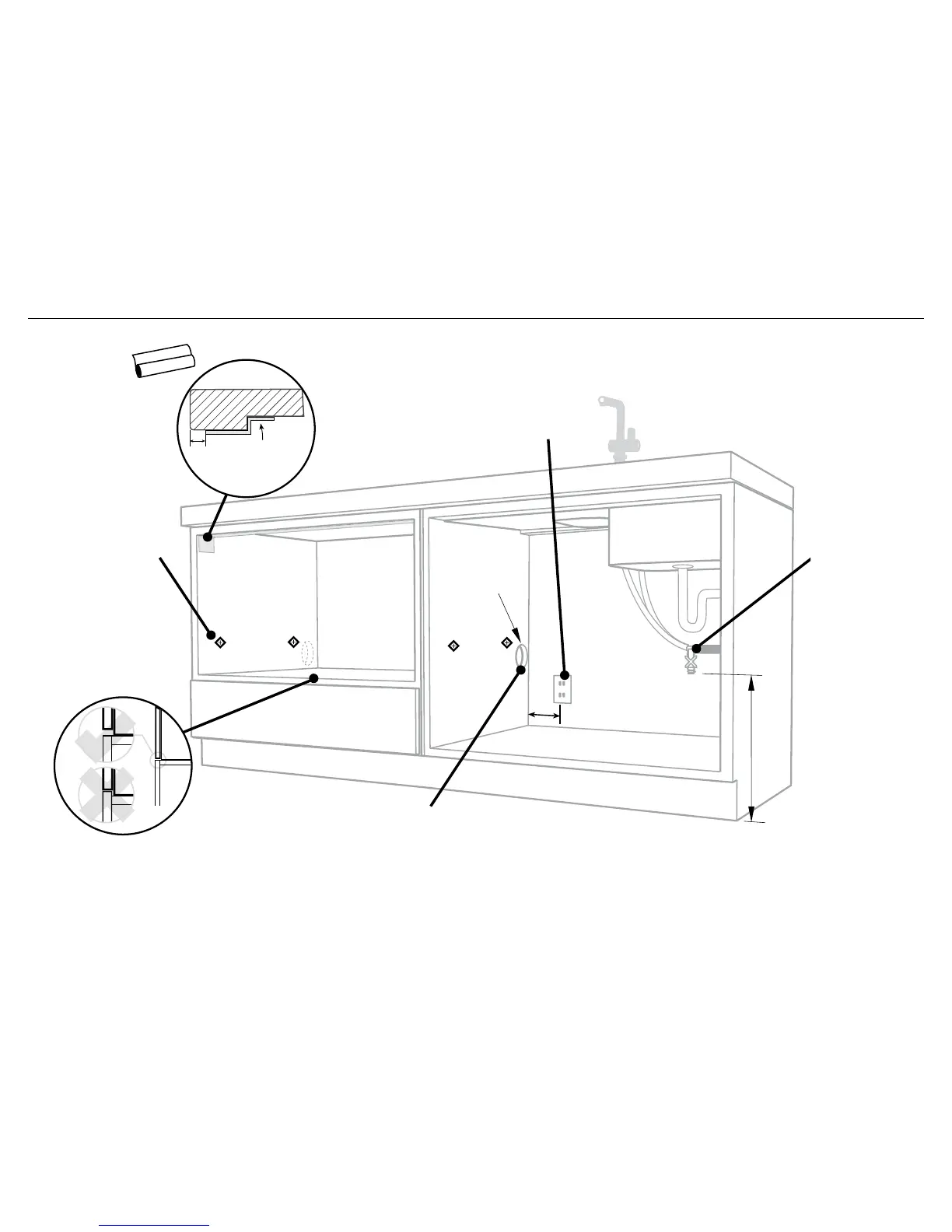

6 CAVITY PREPARATION
Water Connection
Recommended HOT
(Maximum 140°F/60°C).
Supplied hose to suit
3/8” (9 mm) male
Water Pressure
Water softener models
Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)
Models without
water softener
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
IMPORTANT!
The power outlet
must be located in a
cabinet adjacent to the
dishwasher cavity.
110-120 VAC max. 15 A
min. 7 7/8” (200 mm)
Moisture
protection
tape must
be applied.
Services can be
located either side
of dishwasher.
COUNTERTOP
IMPORTANT!
Adjacent cabinetry must not
extend above cavity base.
These marks indicate
formed bracket
screw locations, if
securing by drawer
removal.
If there is no side
partition, you can
construct timber
bracing as something
to secure into.
3/8”
(10mm)
max. 17 11/16”
(450mm)
ø max. 1 1/2” (38mm)
Services hole
Can be located either side of dishwasher, preferably
at the bottom of the cavity, as shown. If adequate
clearance, services hole can be made higher to clear
toekick space. If hole is higher, ensure drain hose(s) are
routed straight into the waste connection.
●
If the hole is through wood, make sure its edges are
smooth and rounded.
●
If the hole is through metal, ensure you fit the supplied
Edge Protector to prevent damage to the power cord.
To Next Page
