Fisher & Paykel DW60UC6B Instruction Manual

2
G
H
NOT TO SCALE
B
A
F
K
L
J
e
D
C
G
H
NOT TO SCALE
B
A
F
K
L
J
e
D
C

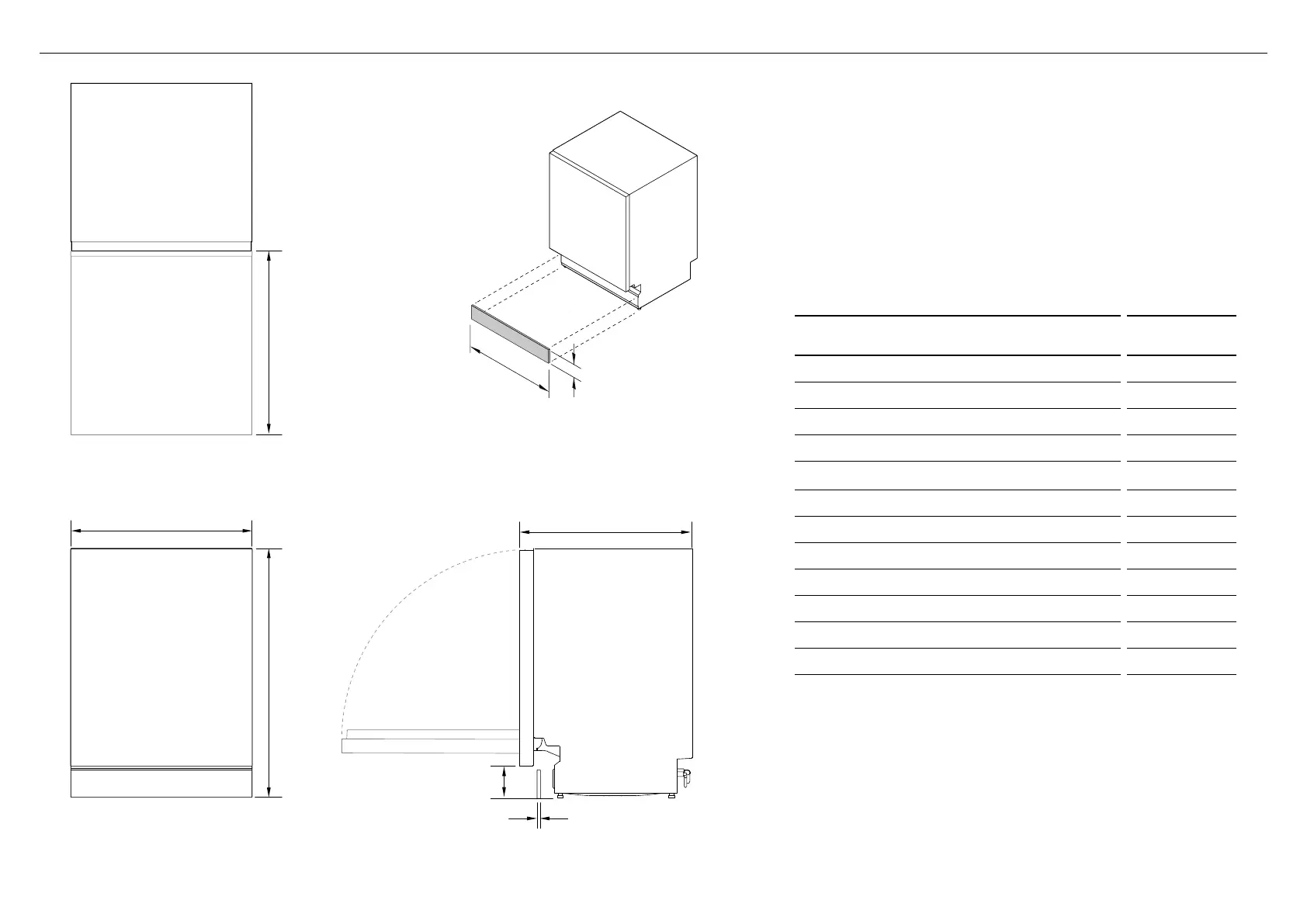

5 PRODUCT DIMENSIONS
PRODUCT DIMENSIONS MM
A
Overall height of product* 820 - 880
B
Overall width of product (excl. side seals) 598
C
Overall depth of product 570
D
Depth of toe kick 46 - 90
E
Height from floor to bottom of door panel 100 - 160
F
Depth of open door 606
G
Width of toe kick panel
Custom panel (not supplied) 596 - 605
Prefinsihed panel 595
H
Height of toe kick**
Custom panel (not supplied) 80 - 165
Prefinished toekick 82-127
*depending on adjustment of levelling feet
**depending on cabinetry dimensions
PLAN
FRONT
PROFILE
G
H
NOT TO SCALE
B
A
F
K
L
J
e
D
C
G
H
NOT TO SCALE
B
A
F
K
L
J
e
D
C

Fisher & Paykel DW60UC6B Specifications

General

Brand	Fisher & Paykel
Model	DW60UC6B
Category	Dishwasher
Language	English
