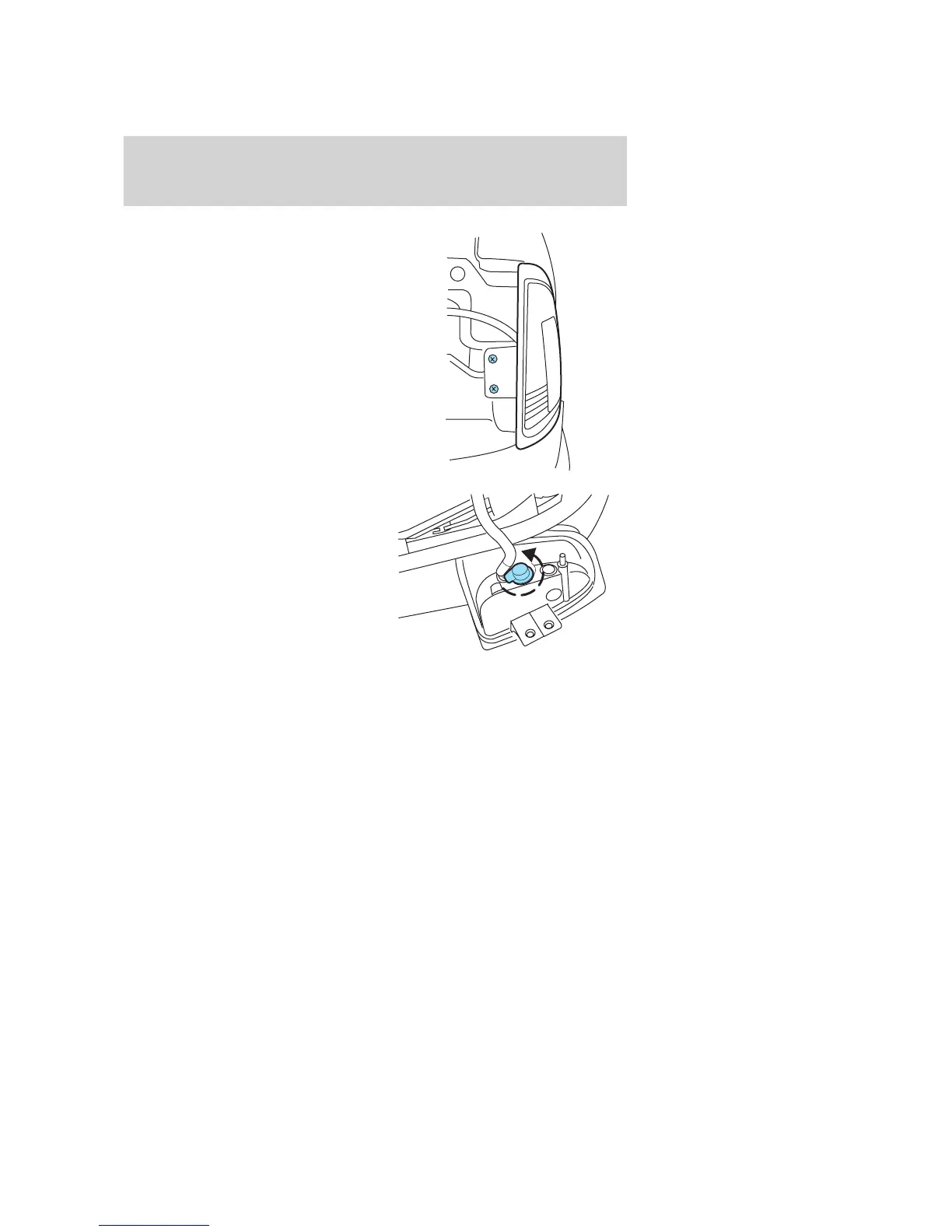

3.
Remove
screw(s)
from
lamp
assembly
and
disengage
lamp
assembly
(it
has
a
snap
fit).
4.
Rotate
bulb
socket
counterclockwise
and
remove
from
lamp
assembly
.
5.
Carefully
pull
bulb
straight
out
of
socket
and
push
in
the
new
bulb.
6.
Install
the
bulb
socket
in
lamp
assembly
by
turning
clockwise.
Install
the
new
bulb
in
reverse
order
.
