Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
32 50A** PSCM #2
001 Relay Power sustain for PCM, TBCM and Transaxle
Control Module (TCM)
002 Relay PCM power
003 Relay Injector
004 Relay Auxiliary coolant pump
005 Relay Motor/Electronic coolant pump
006 Relay Foglamps
007 Relay A/C clutch
Diode 01 — A/C clutch
Diode 02 — Not used
* Mini fuse **Cartridge fuse

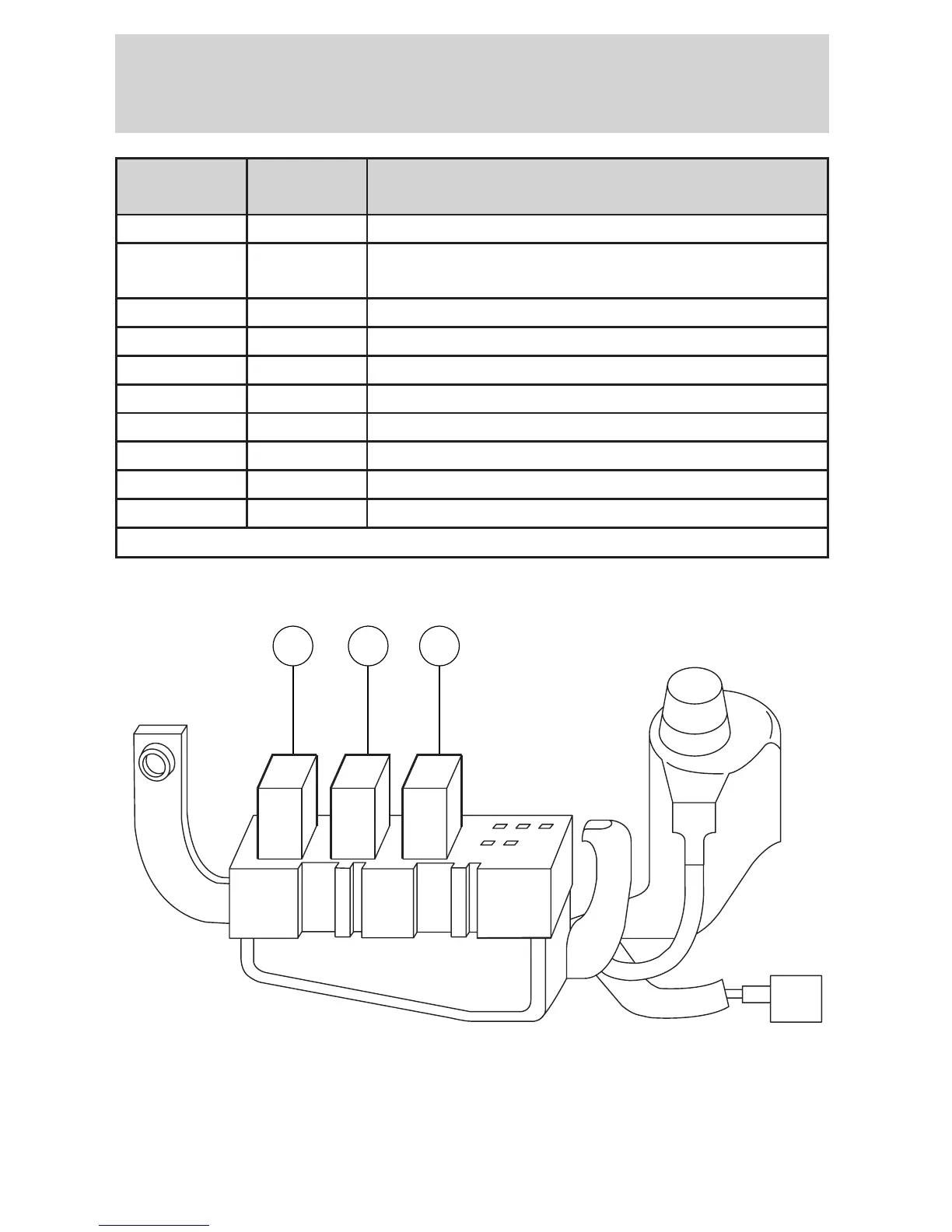

Auxiliary relay box
The relay box is located on the radiator support (left of the hood latch).
1 2 3
2006 Escape Hybrid (hev)
Owners Guide (post-2002-fmt)
USA (fus)
Roadside Emergencies
221
