Fluids
Front Axle - Hypoid Oil SAE 90, API/GL5 (SQM-2C9002-AA)
Rear Axle - Hypoid Oil SAE 90, API/GL5 (SQM-2C9002-AA)
Intermediate Housing - SAE 80 (SQM-2C9008-A)
Transfer Box - (SQM-2C9010-A)
Filler Plug Torque Settings
Front Axle - 35 to 45 Nm
Rear Axle - 35 to 45 Nm
Intermediate Housing - 33 to 41 Nm
Transfer Box - 40 to 60 Nm

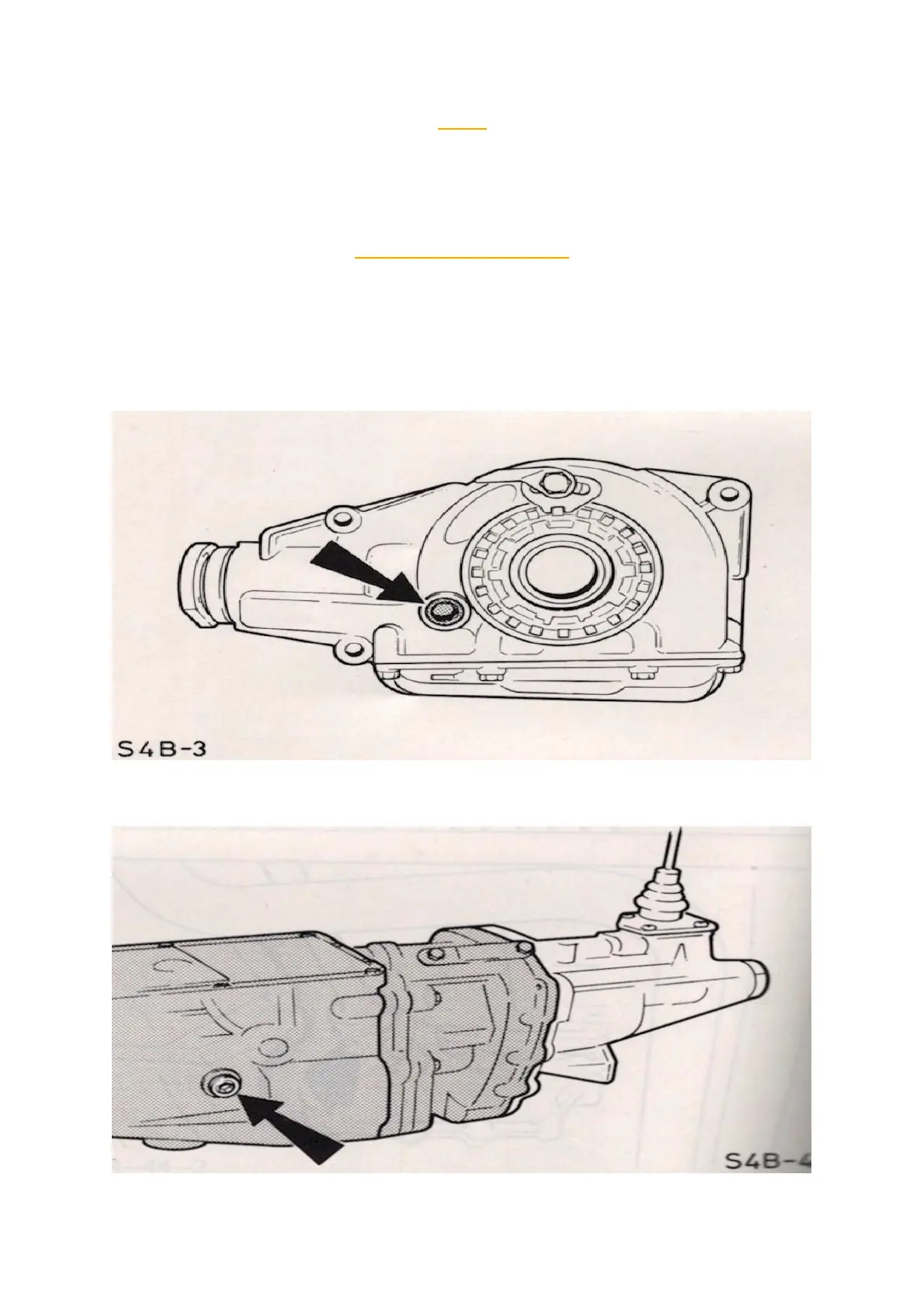

Front Axle
Type 9 Gearbox
