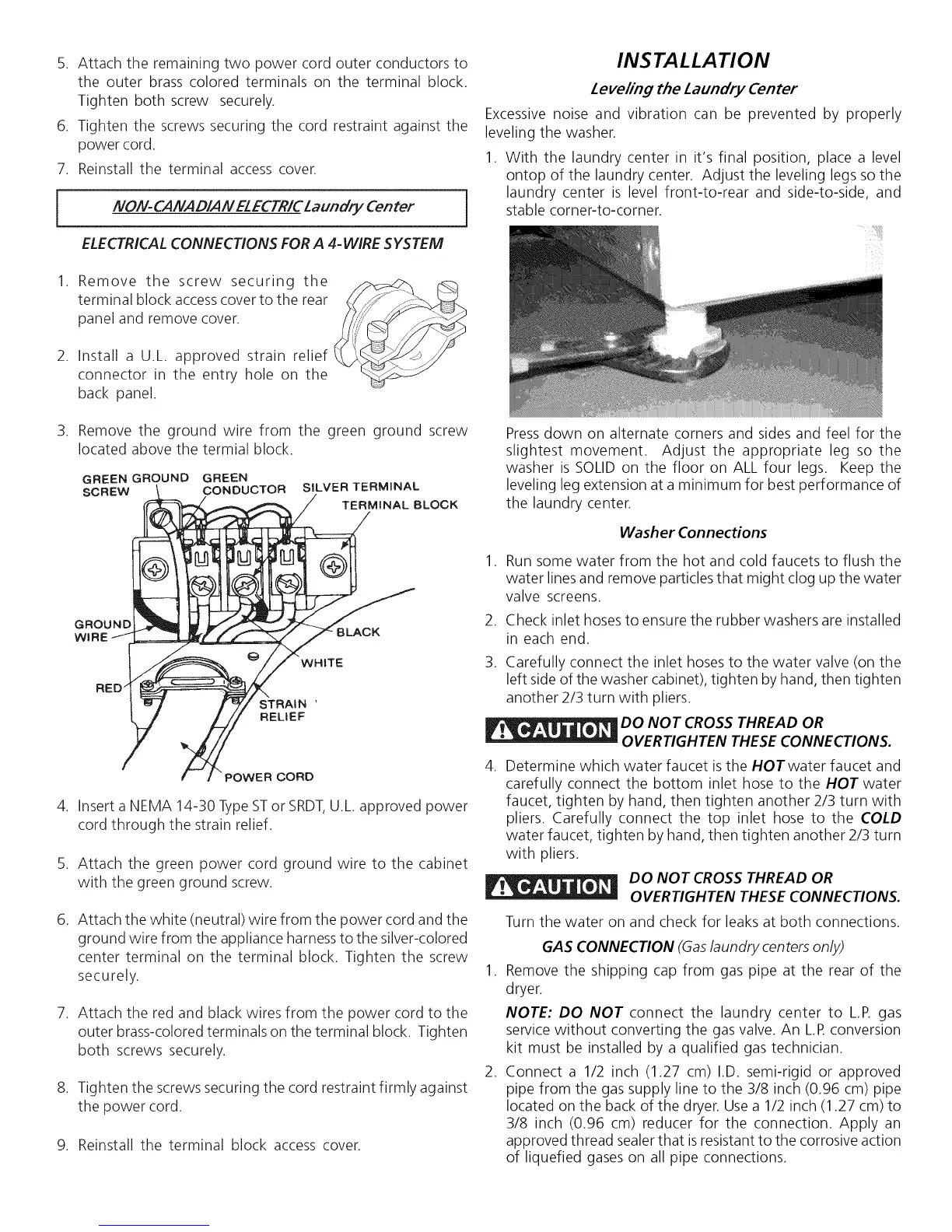

5. Attach the remaining two power cord outer conductors to
the outer brass colored terminals on the terminal block.
Tighten both screw securely.
6. Tighten the screws securing the cord restraint against the
power cord.
7. Reinstall the terminal access cover.
[ NON-CANAD/ANELECTR/CLaundryCenter ]
ELECTRICALCONNECTIONS FORA 4-WIRE SYSTEM
1. Remove the screw securing the
terminal block accesscover to the rear
panel and remove cover.
2. Install a U.L. approved strain relief
connector in the entry hole on the
back panel.
INSTALLATION
Leve/ing the Laundry Center
Excessive noise and vibration can be prevented by properly
leveling the washer.
1. With the laundry center in it's final position, place a level
ontop of the laundry center. Adjust the leveling legs so the
laundry center is level front-to-rear and side-to-side, and
stable corner-to-corner.
3. Remove the ground wire from the green ground screw
located above the termial block.
GREEN GROUND GREEN
SCREW CONDUCTOR
GROUND
WIRE
SILVER TERMINAL
TERMINAL BLOCK
WHITE
RED /
STRAIN '
RELIEF
POWER CORD
4. Insert a NEMA 14-30 Type STor SRDT,U.L. approved power
cord through the strain relief.
5. Attach the green power cord ground wire to the cabinet
with the green ground screw.
6. Attach the white (neutral) wire from the power cord and the
ground wire from the appliance harness to the silver-colored
center terminal on the terminal block. Tighten the screw
securely.
7. Attach the red and black wires from the power cord to the
outer brass-colored terminals on the terminal block. Tighten
both screws securely.
8. Tighten the screws securing the cord restraint firmly against
the power cord.
9. Reinstall the terminal block access cover.
Pressdown on alternate corners and sides and feel for the
slightest movement. Adjust the appropriate leg so the
washer is SOLID on the floor on ALL four legs. Keep the
leveling leg extension at a minimum for best performance of
the laundry center.
Washer Connections
.
.
3.
Run some water from the hot and cold faucets to flush the
water lines and remove particles that might clog up the water
valve screens.
Check inlet hoses to ensure the rubber washers are installed
in each end.
Carefully connect the inlet hoses to the water valve (on the
left sideof the washer cabinet), tighten by hand, then tighten
another 2/3 turn with pliers.
DO NOT CROSS THREAD OR
__.=_w__ OVERTIGHTEN THESE CONNECTIONS.
4. Determine which water faucet is the HOTwater faucet and
carefully connect the bottom inlet hose to the HOT water
faucet, tighten by hand, then tighten another 2/3 turn with
pliers. Carefully connect the top inlet hose to the COLD
water faucet, tighten by hand, then tighten another 2/3 turn
with pliers.
w . a . DO NOT CROSS THREAD OR
__,,7_,_,,__ OVERTIGHTEN THESE CONNECTIONS.
Turn the water on and check for leaks at both connections.
.
.
GAS CONNECTION (Gaslaundry centers only)
Remove the shipping cap from gas pipe at the rear of the
dryer.
NOTE: DO NOT connect the laundry center to L.P. gas
service without converting the gas valve. An L.R conversion
kit must be installed by a qualified gas technician.
Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or approved
pipe from the gas supply line to the 3/8 inch (0.96 cm) pipe
located on the back of the dryer. Use a 1/2 inch (1.27 cm) to
3/8 inch (0.96 cm) reducer for the connection. Apply an
approved thread sealer that is resistant to the corrosive action
of liquefied gases on all pipe connections.
