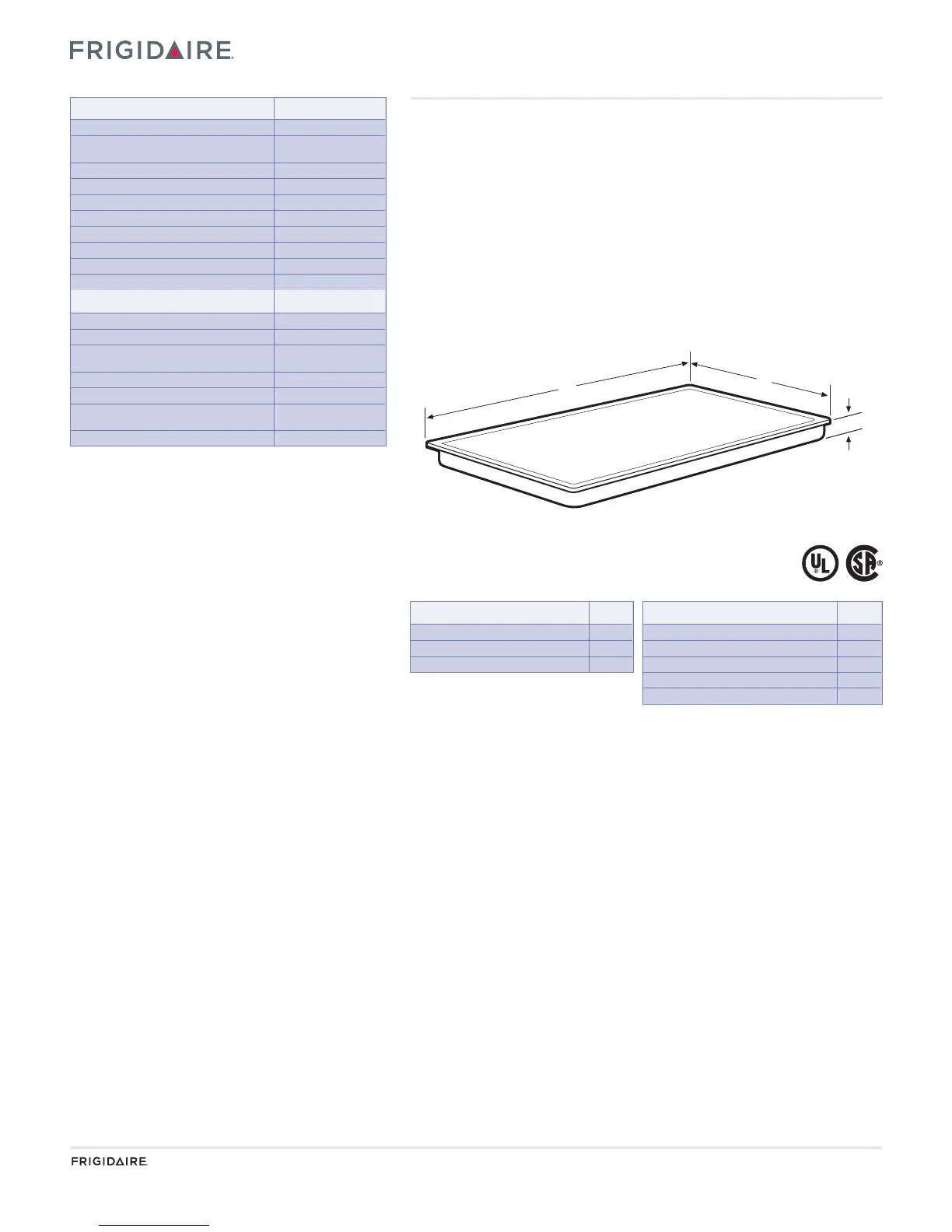

Frigidaire FFEC3024LB User Manual

Accessories information available
on the web at frigidaire.com
Granite Countertop
Installation Kit available.
Product Dimensions
A - Width
B - Depth
C - Height
Cutout Dimensions
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
Height
29-5/8"
29-3/4"
20-1/4"
20-1/2"
5"
30-3/4"
21-1/2"
2-5/8"
NOTE: Always consult local and national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at frigidaire.com.
Drop-In Electric Cooktops
Frigidaire Baseline
A
B
C
1
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
2
Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Features
Controls
Surface Type
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Hot Surface Indicator
Control Location
Knob Color
Knob Type
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
1
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single Wall Oven
Combination Installation
2
Shipping Weight (Approx.)
Ready-Select™
Color-Coordinated
Ceramic Glass
9" - 2,500
6" - 1,200
6" - 1,200
9" - 2,500
Yes
Right Side
Color-Coordinated
Plastic
Right Rear
240V /208V / 60Hz
7.4 / 5.6
31.0 / 27.0
30
Yes
45 Lbs.
USA
•
10200 David Taylor Drive • Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFEC3024L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
Drop-In Cooktops
FFEC3024L W/ B 30" Electric

Frigidaire FFEC3024LB Specifications

General

Hob type	Zone induction hob
Product color	Black
Top surface type	Glass-ceramic
Appliance placement	Built-in
Cooking zone 2 type	Simmer
Cooking zone 4 type	Large
Cooking zone 3 power	1200 W
Cooking zone 4 power	2500 W
Cooking zone 1 position	Left rear
Cooking zone 2 position	Left front
Cooking zone 3 position	Right rear
Cooking zone 4 position	Right front
Number of cooking zones	4 zone(s)
Simmer cooking zone shape	Round
Cooking zone 3 power source	Electric
Large cooking zone diameter	228.6 mm
Number of gas cooking zones	0 zone(s)
Simmer cooking zone diameter	152.4 mm
Control type	Rotary
Built-in display	-
Control position	Top right
Residual heat indicator	Yes
Current	30 A
AC input voltage	208-240 V
AC input frequency	60 Hz
Connected load (gas)	- W
Connected load (electric)	7400 W
Package weight	20412 g

Weight and Dimensions

Depth	542.9 mm
Width	781 mm
Height	76.2 mm
Weight	18144 g
Installation compartment height	127 mm
Installation compartment depth (max)	520.7 mm
Installation compartment depth (min)	514.35 mm
