Fujitsu ABYG36KRTA User Manual

¢
External input and output PCB
The indoor unit Operation/Stop can be set by using the input terminal on the PCB.
 Input select
Use either one of these types of terminals according to the application. (Both types of terminals
cannot be used simultaneously.)

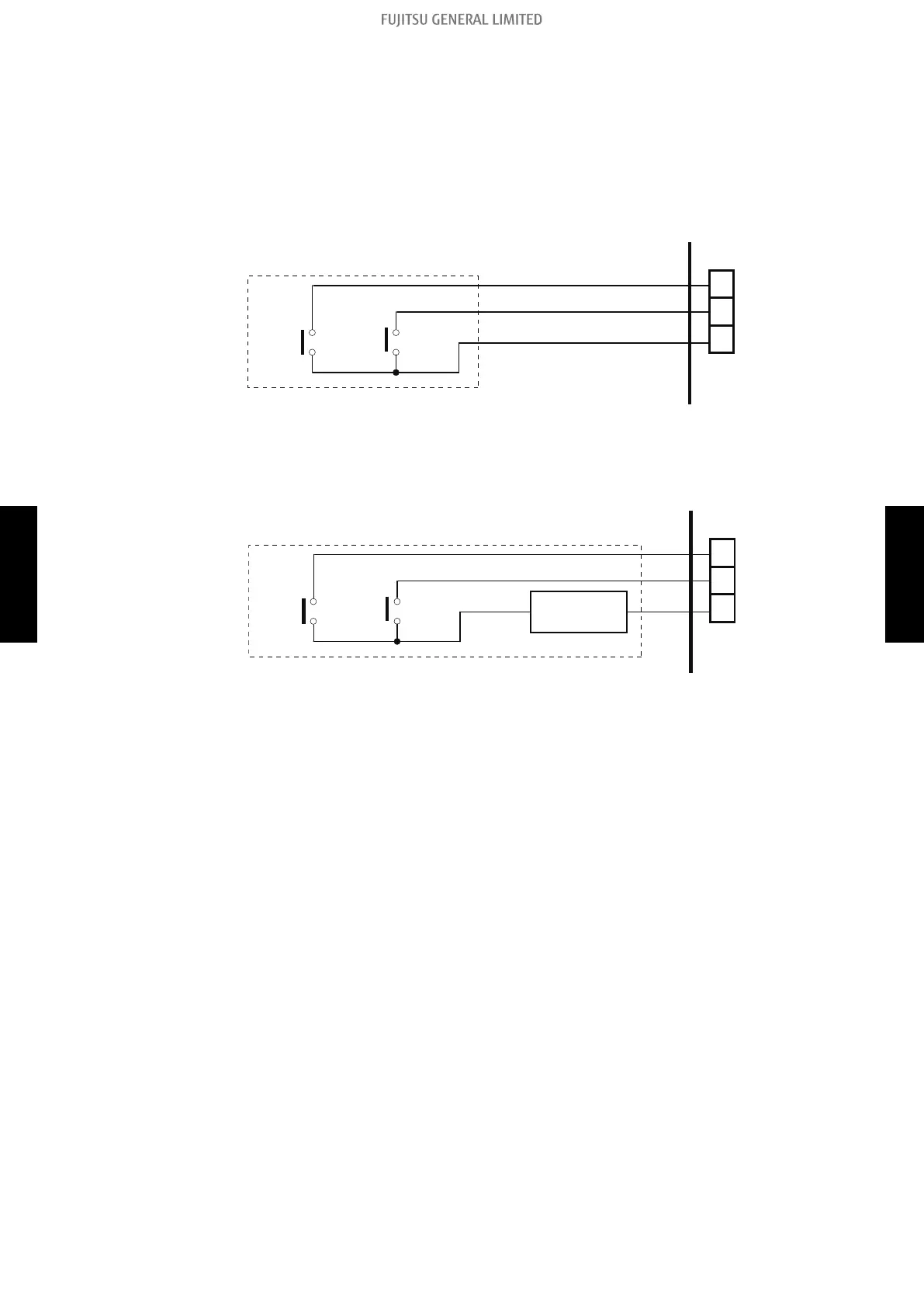

• Dry contact
In case of internal power supply, set the slide switch of SW1 to "NON VOL" side.
1
2
C
Input 1 Input 2
PCB
Connected unit

+
+
-
*1: The switches can be used on the following condition: DC 12 V to 24 V, 1 mA to 15 mA.
• Apply voltage
In case of external power supply, set the slide switch of SW1 to "VOL" side.
1
2
C
Input 1 Input 2 Power supply
PCB
Connected unit


+-
*1: The switches can be used on the following condition: DC 12 V to 24 V, 1 mA to 15 mA.
*2: Make the power supply DC 12 V to 24 V 10 mA or more.
3-1. External input - (05-11) - 3. External input and output for indoor unit
FIELD WORKING FIELD WORKING

Fujitsu ABYG36KRTA Specifications

General

Style	Split-type
Color	White
Features	Bladeless Design
Min/Max: 0.50-3.20 kW	000 BTU/h
Min/Max Cooling 2.20/8.00 kW?	860-11
2	9.5 (2.8 - 11.2) kW
Min/Max: 0.50-4.40 kW	000 BTU/h
Min/Max Heating 1.90/9.00 kW?	000 Btu/h
Moisture Removal	2.60 l/h
Fan Airflow Rate	High / Mid / Low: [CMM] (C) 17.5/15.9/14.3 (H) 17.5/15.9/14.3 CMM
Heating (?): 10.0 ~ 45.0 ?	Cooling: -15 to 46 °C DB
Sound Pressure Level	Indoor (Cooling) : High 44 dB(A)
Indoor (Heating): High 44 dB(A)	36 / 26 / 23 dBA (H / L / QLo)
Refrigerant Type	R32
Refrigerant Charge	-
Annual Energy Consumption	Cooling: 524 kWh/a
Heating: 2904 kWh/a	-
Heating: 4.12 W	Cooling: 2.910 kW
Frequency	50 Hz
Voltage	230 V
Heating: 6.60 A	Max Cooling: 22.60 A
Battery Life	-
Battery Capacity	-
Depth	705 mm
Height	235 mm
Width	1700 mm
Net Weight	38.0 kg
