Page #9 background imageLoading...
Page #9 background image
5V
JM201
PHA201
P I C-37143TH5
2
1
3
VCC
OUT
GND
C202
10/
16V
+
C201
0.1
<F>
SW201
EVQPAG04K
D207 EMPG3863X GREEN
D206 EMAA3863X ORANGE
D205 EMPG3863X GREEN
R202
330
<1/4W>
R203
330
<1/4W>
R201
330
<1/4W>

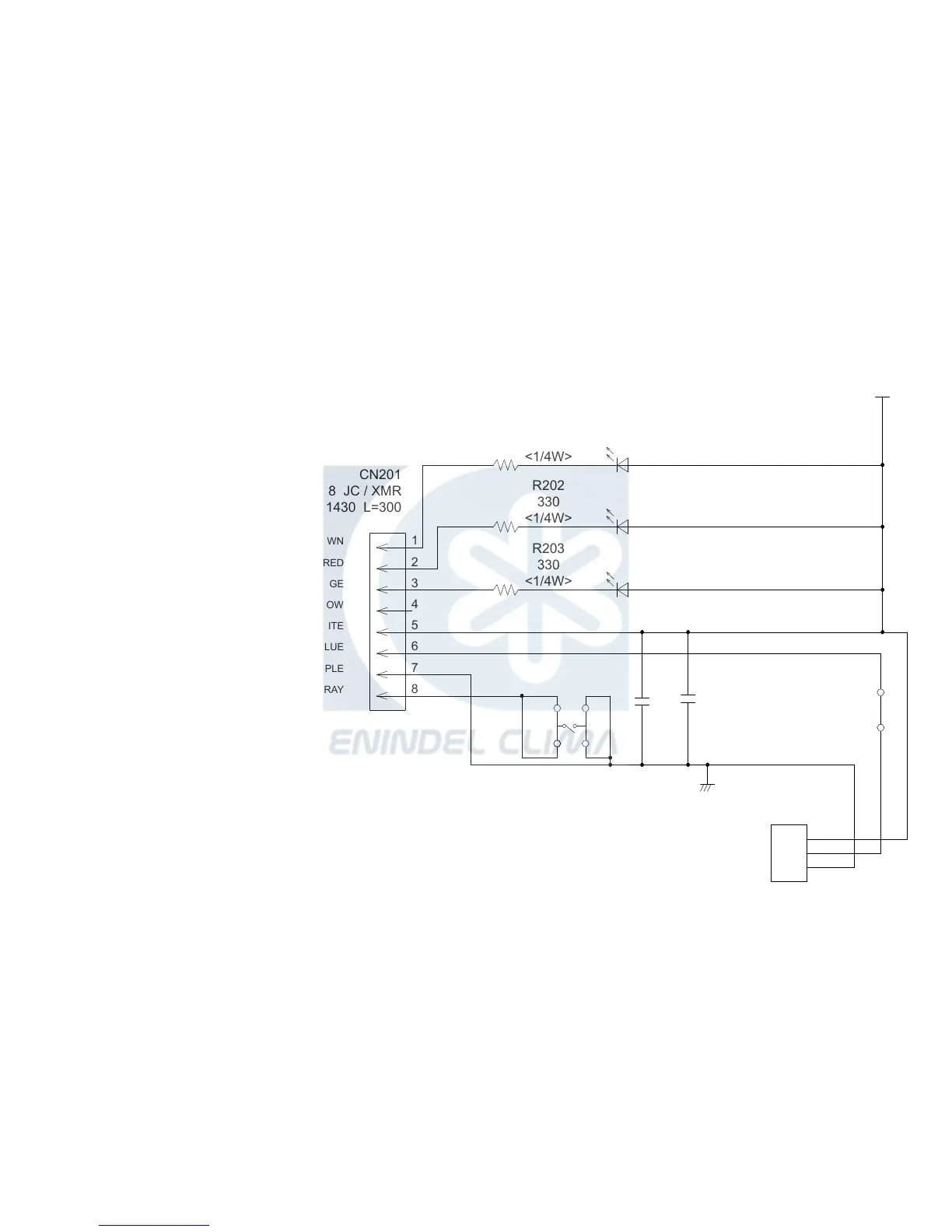

CN201
08 / 08 JC / XMR
1430 L=300
1
2
3
4
5
6
7
8
BROWN
RED
ORANGE
YELLOW
WHITE
BLUE
PURPLE
GRAY
OPERATE
TIMER
LOUVER
LOUVER
5V
REMOTE SIGNAL
GND
MANUAL AUTO SWITCH
TO MAIN PCB
INDOOR UNIT
INDICATOR PCB
K04GN1100HSE-D0
2013.01.22 8
www.enindel.com
