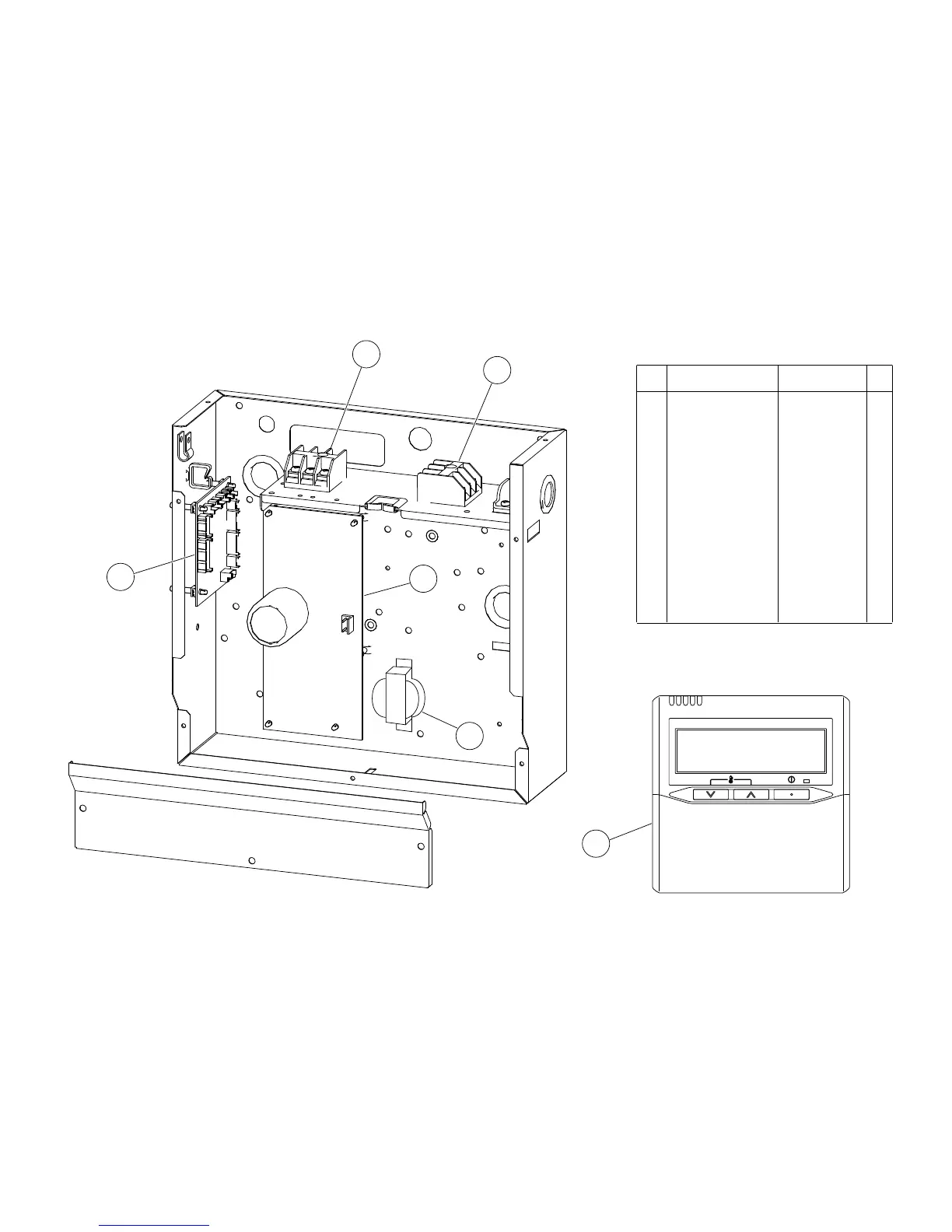

INDOOR UNIT
33
32
31
35
36
2013.03.25
13
31 Main PCB
33 Terminal 3P 9703345012
34 Terminal 3P 9306489045
32 Power Supply PCB 9707398373
35 Reactor Assy 9707457018
-- Room Thermistor 9703299025
-- Pipe Thermistor 9703297021
36 Remote Control 9318593013
Ref. Description Part number
9709245323
34
