System upgrades
Installing ventilation duct
i
When installing the ventilation duct, be careful not to damage the processor cooler on the
mainboard.
1
► Insert the latches on the underside of the ventilation duct into the corresponding slots in the
casing.

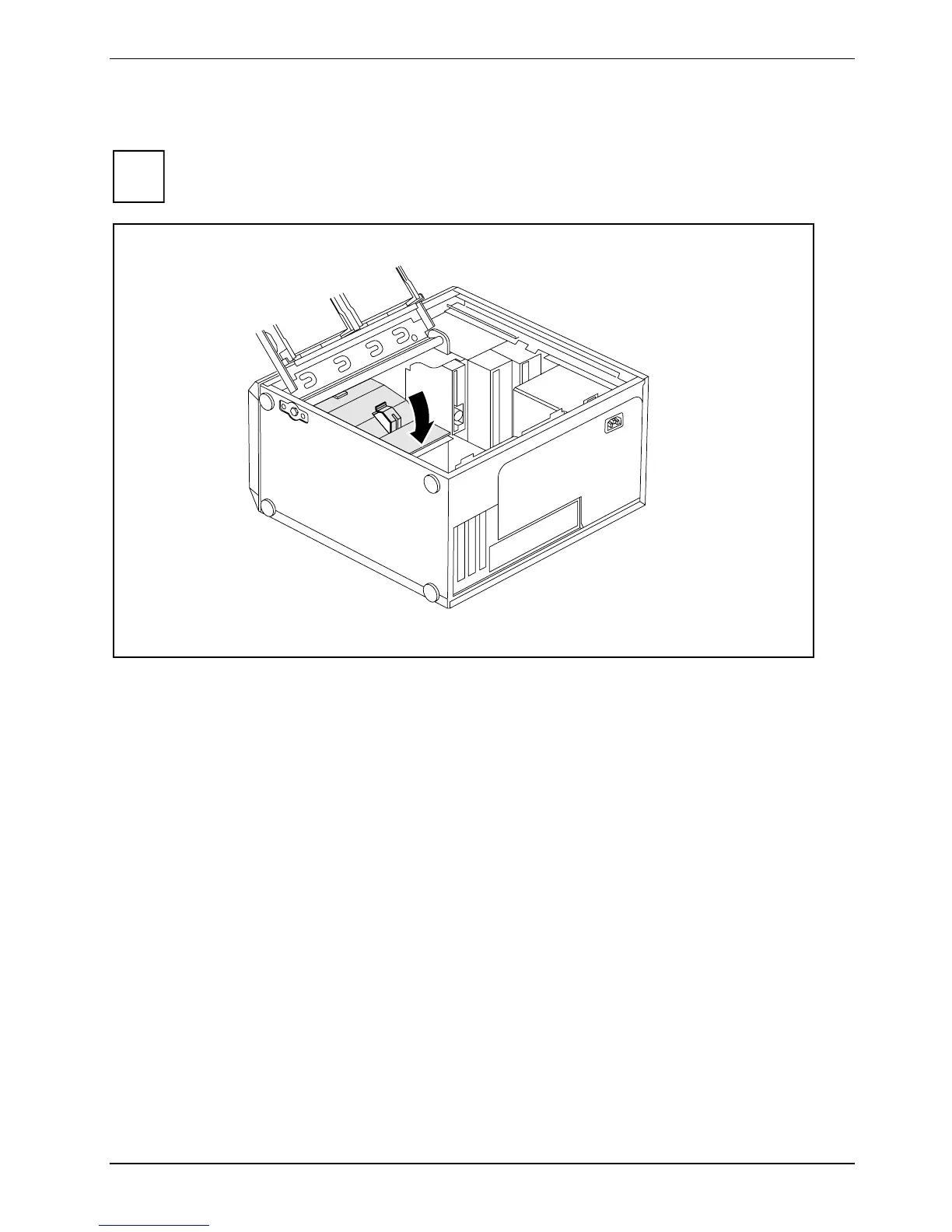

► Press the ventilation duct into the casing in the direction of the arrow (1) so that the locking
hook is felt to engage.
► Reconnect the cables that you disconnected before.
► Hook the wires into the holder on the ventilation duct.
► Fold down the drive cage (see "
Closing the drive cage").
► Close the casing (see "
Closing the casing").
