Conditions for Multifeed Detection
Multifeed is an error where two or more sheets are fed through
the ADF at once. It is also called a multifeed when a different
document length is detected.
Multifeed detection is performed by either checking the
overlapping of documents, length of the documents, or the
combination of both. The following conditions are required for
an accurate detection.
Detection by overlapping
z Load documents of the same paper weight in the ADF paper chute.
z Paper weight: 52 to 127 g/m
2
(14 to 34 lb)
z Do not punch holes within 50 mm (1.97 in.) over the vertical center
line of the document. See Fig.1.
z Do not attach other documents within 50 mm (1.97 in.) over the
vertical center line of the document. See Fig.1.
Detection by length
z Load documents of the same length in the ADF paper chute.
z Variance in document lengths: 1% or less
z Do not punch holes within 50 mm (1.97 in.) over the vertical center
line of the document. See Fig.1.
Detection by overlapping and length
z Load documents of the same paper weight and length in the ADF
paper chute.
z Paper weight: 52 to 127 g/m
2
(14 to 34 lb)
z Variance in document lengths: 1% or less
z Do not punch holes within 50 mm (1.97 in.) over the vertical center
line of the document. See Fig.1.
z Do not attach other documents within 50 mm (1.97 in.) over the
vertical center line of the document. See Fig.1.

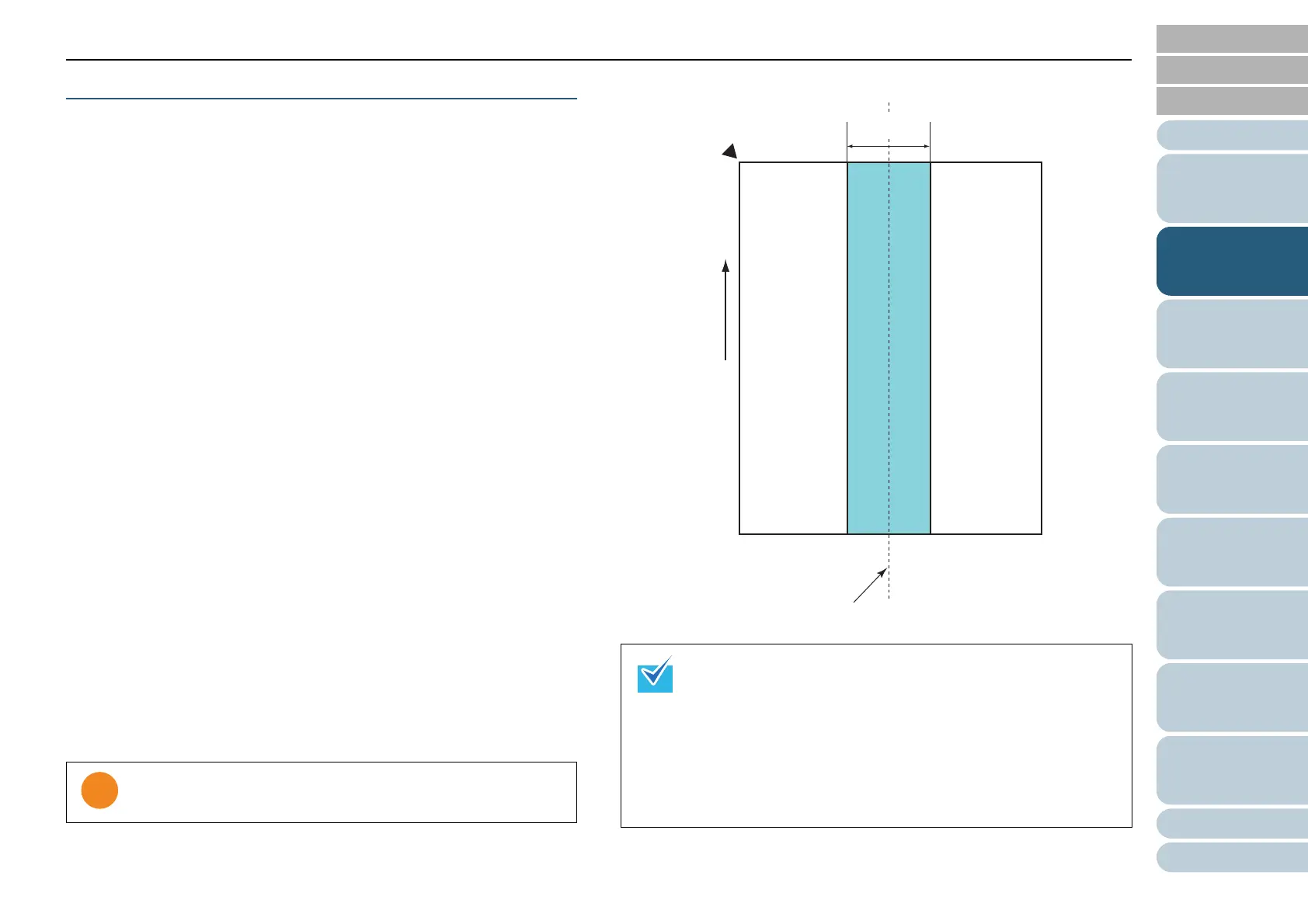

Fig. 1
！！！
The above condition applies when the document is set to the
center of the pick roller width.
z The rate of multifeed detection may drop with some
documents.
Multifeed cannot be detected within 30 mm from the leading
edge of the document.
z For the area in Fig. 1, you can also specify a length (feed
direction) in the Software Operation Panel to disable
multifeed detection.
For details, refer to "9.6 Settings Related to Multifeed
Detection" (page 145).
( Unit : mm)
Top
Reference point
Front side
Feed direction
Center of document
Bottom
50

Fujitsu fi-6110 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	1024
Input color depth	24 bit
Maximum scan size	216 x 355.6 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	3 sec/page
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	500 sheets
USB version	2.0
Standard interfaces	USB 2.0
Scan media weight	52 - 127 g/m²
Dimensions (WxDxH)	292 x 143 x 130 mm
Power requirements	100 - 240 V, 50/60 Hz
Image formats supported	JPG, TIF
Recommended media weight	80 g/m²
Compatible operating systems	Microsoft Windows 7 (32bit/64bit)/Vista (32bit/64bit), Windows Server 2003/2008/2008 R2 (32bit/64bit), Windows XP (32bit/64bit).
Power supply type	AC
Power consumption (standby)	5.36 W
Power consumption (typical)	28 W
Operating temperature (T-T)	42 - 95 °F
Operating relative humidity (H-H)	20 - 80 %
Bundled software	TWAIN, ISIS, ScandAll PRO, Adobe Acrobat, QuickScan Pro.

Weight and Dimensions

Depth	143 mm
Width	292 mm
Height	130 mm
Weight	3000 g
