Fujitsu FUTRO S720 User Manual

System expansio ns
Removing the SmartCard reader
SmartCardread er
► Open the casing (see "Opening the casing", Page 34).
► If a PCIe board is installed, you must rem ove the cross piece and PCIe
board (see "
Removing the board", Page 60).
1
3
3
4
2

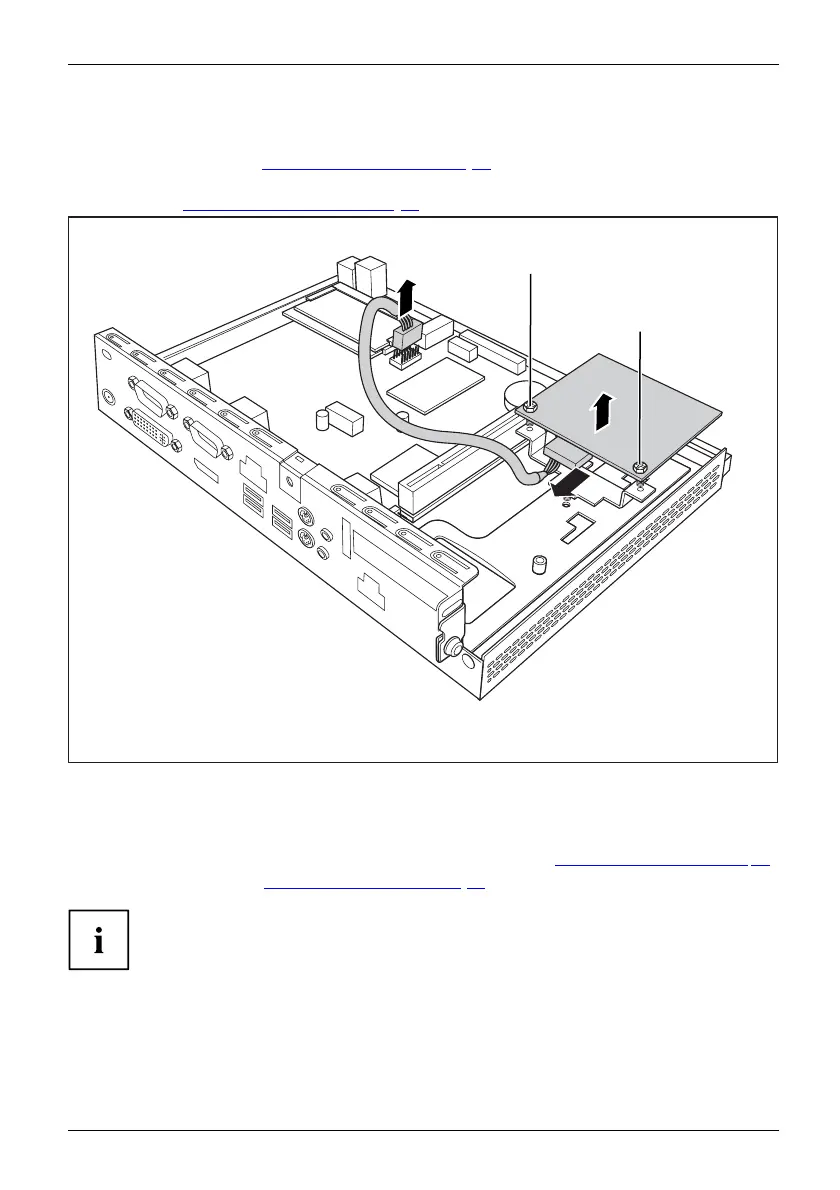

► Disconnect the cable from the SmartCard reader (1) and from the mainboard (2).
► Undo the screws ( 3).
► Lift the SmartCard reader from the carrier (4).
► When required, reinstall the cross piece and the P C Ie board (see "
Installing the board", Pa ge 58 ).
► Clo se the casing (see "
Closing the ca sing", Page 62).
Ensure tha t cables are not trapped between th e casing and the components.
Fujitsu 39

Fujitsu FUTRO S720 Specifications

General

Processor cores	2
Processor model	GX-217GA
Processor family	AMD G
Processor frequency	1.65 GHz
Internal memory	2 GB
Internal memory type	-
Storage media	Flash
Card reader integrated	No
Total storage capacity	16 GB
Storage drive interface	mSATA
On-board graphics card model	AMD Radeon HD 8280E
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
Product color	Black
Cable lock slot type	Kensington
Operating system installed	Windows Embedded 8 Standard
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth	195 mm
Width	52 mm
Height	251 mm
Weight	1300 g
