Fujitsu PRIMERGY RX2540 M4 User Manual

RX2530 M4 Operating Manual 49
Hardware installation
5.3 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed.
I Some of the devices that can be connected may require special
software, e.g. drivers (see the documentation for the connected device).

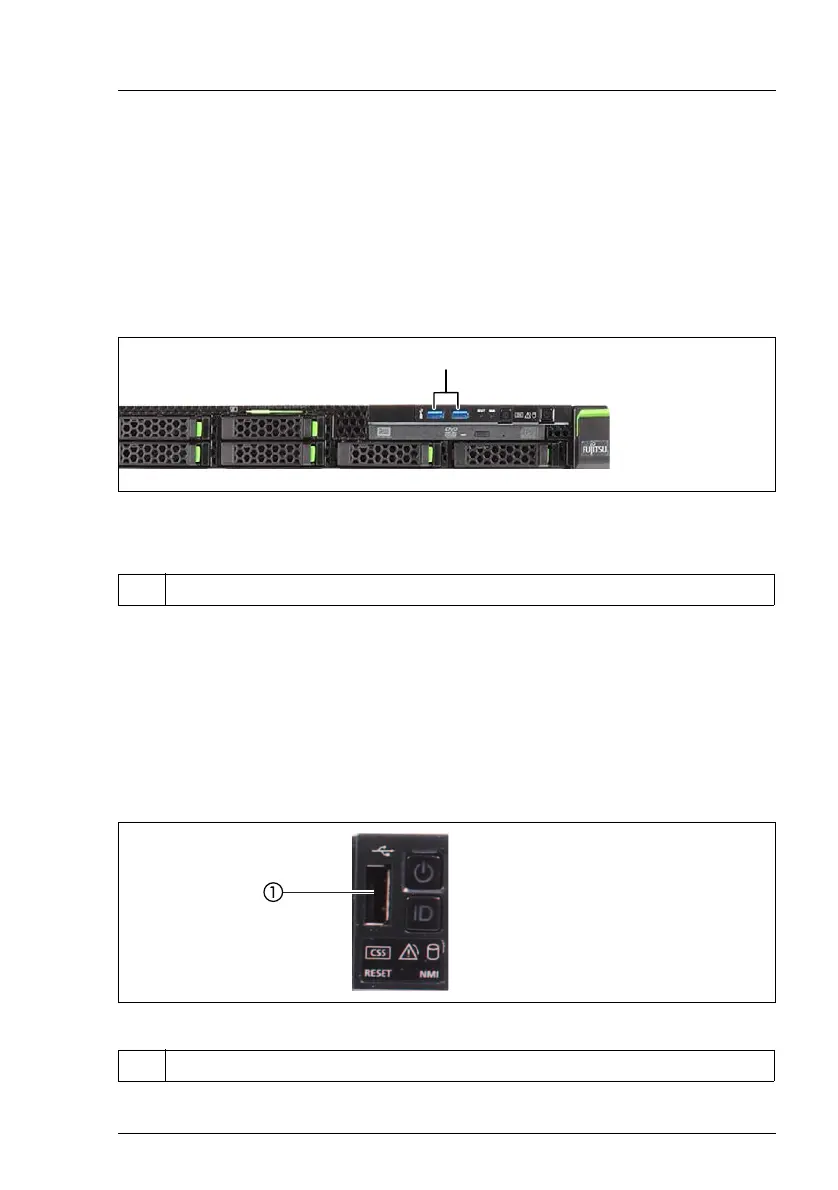

Figure 2: Ports on the front
The following connectors are located on the front of the server:
A front VGA connector is available as an option.
10 HDD variant
For the variant with 10 HDDs of the PRIMERGY RX2530 M4 there is an
USB 2.0 connector on the front panel on QRL instead of above mentioned
USB3.0 connectors.
Figure 3: Front panel on QRL
1 2 x USB 3.0 connectors
1 1 x USB 2.0 connector
햲

Fujitsu PRIMERGY RX2540 M4 Specifications

General

Processor	Intel Xeon Scalable Processor Family
Form Factor	2U rack server
Chipset	Intel C621
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5-inch SAS/SATA/NVMe drives or Up to 12 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60 (with optional controller)
Expansion Slots	Up to 8x PCIe Gen3 slots
Power Supply	800W or 1200W (1+1 redundant)
Memory Type	DDR4
Management	iRMC S5 (Integrated Remote Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
