Rack model Completion
12.2 Rack model
12.2.1 Attaching the rack front cover
Reattach the rack front cover after implementing the following extensions:
– Installation of further accessible drives
– Conversion of the floorstand model to a rack model

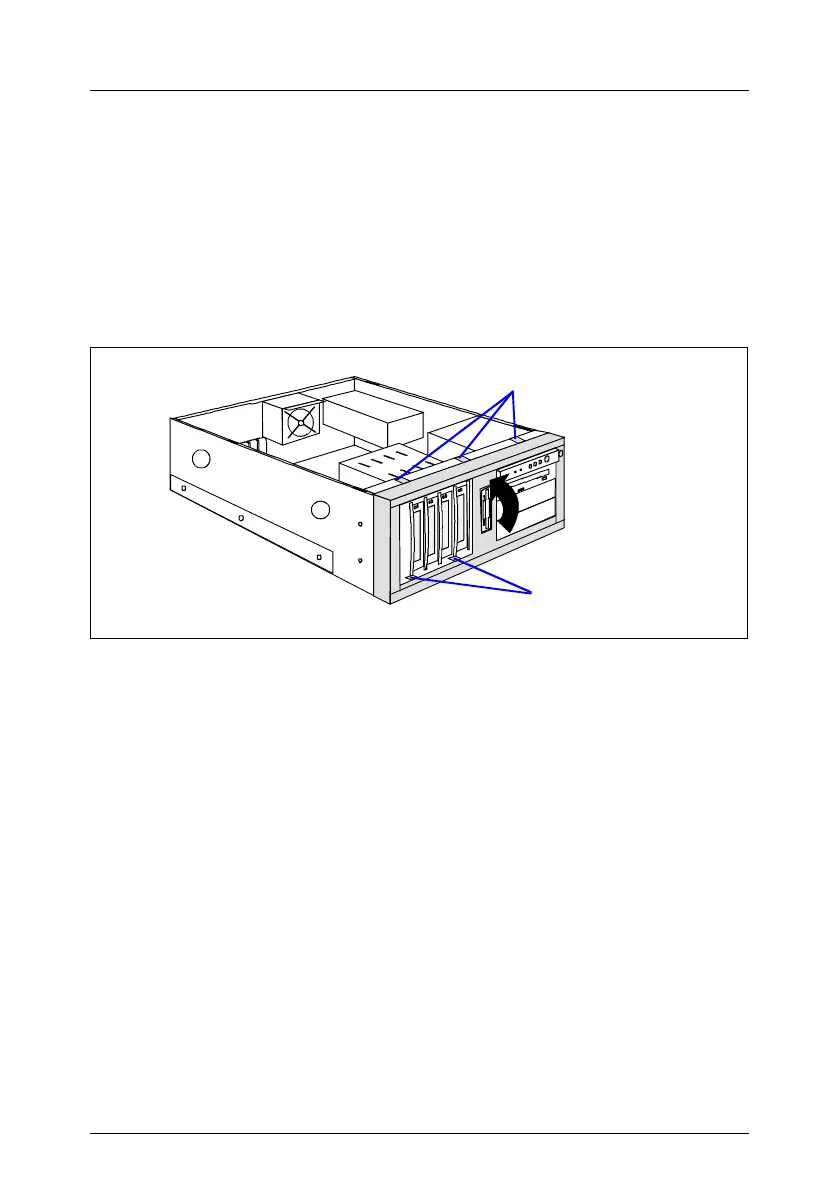

Figure 49: Attaching the plastic front cover
Ê Press the two hooks (1) on the bottom side in the recesses of the housing.
Ê Press the plastic front cover onto the housing (2) until the three tabs on the
top side engage (3).
3
1
2
