Furuno IF-NMEA2K2 User Manual

2

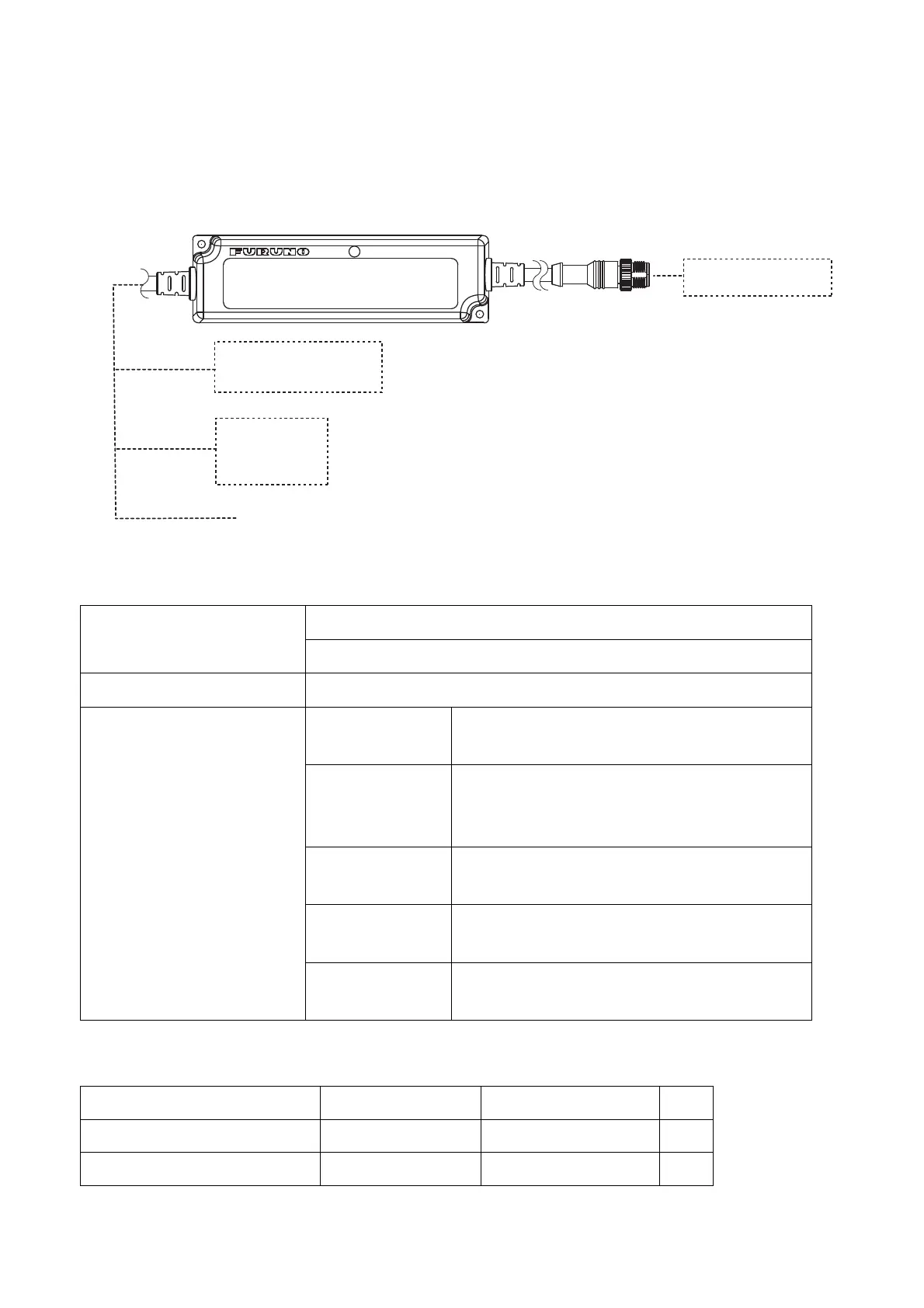

System Configuration
The NMEA Data Converter IF-NMEA2K2 converts CAN bus format data to
NMEA0183 format data and vice versa.
NMEA0183 device
*
CAN bus device
CAN bus cable
NMEA DATA
CONVERTER
NMEA0183 cable
PC, etc.
*
(RS-232C)
Mode Conversion
*
: NMEA0183 cable can not be connected to NMEA0183
device and PC, etc. (RS-232C) at the same time.
Specifications of NMEA Data Converter
Interface CAN bus
NMEA0183 (Input: Ver 1.0/2.0/3.0, Output: Ver 3.0)
Power Supply 15/30 VDC: 45/30 mA (LEN: 2@9V)
Environmental
conditions
Ambient
temperature
-15°C to 55°C
Waterproofing
standard
IP55*
*: NMEA0183 cable terminal is not
waterproof.
Relative
humidity
95 % (at 40°C)
Storage
temperature
-20°C to 60°C
Vibration
resistance
IEC60945
Equipment List
Name Type Code No. Qty
NMEA Data Converte
r
IF-NMEA2K2 - 1
Self Tapping Screw 3x20 000-167-940-10 2

Furuno IF-NMEA2K2 Specifications

General

Brand	Furuno
Model	IF-NMEA2K2
Category	Media Converter
Language	English
