Accessing and Operating the Secondary
Display Output on a Single Monitor
TZT2BB Installation
Take full advantage of both video outputs when using only a single monitor TZT2BB installation.
Examples of why this installation may be useful:
1. Assist with performing software updates when having only one display connected
2. Use of two different radars or sounders on one monitor
3. Allows for “Quarter” page weather
4. Up to five panels of data possible (fit more information on screen)
5. Look at two composite video signals at once (normally only one composite allowed per display)

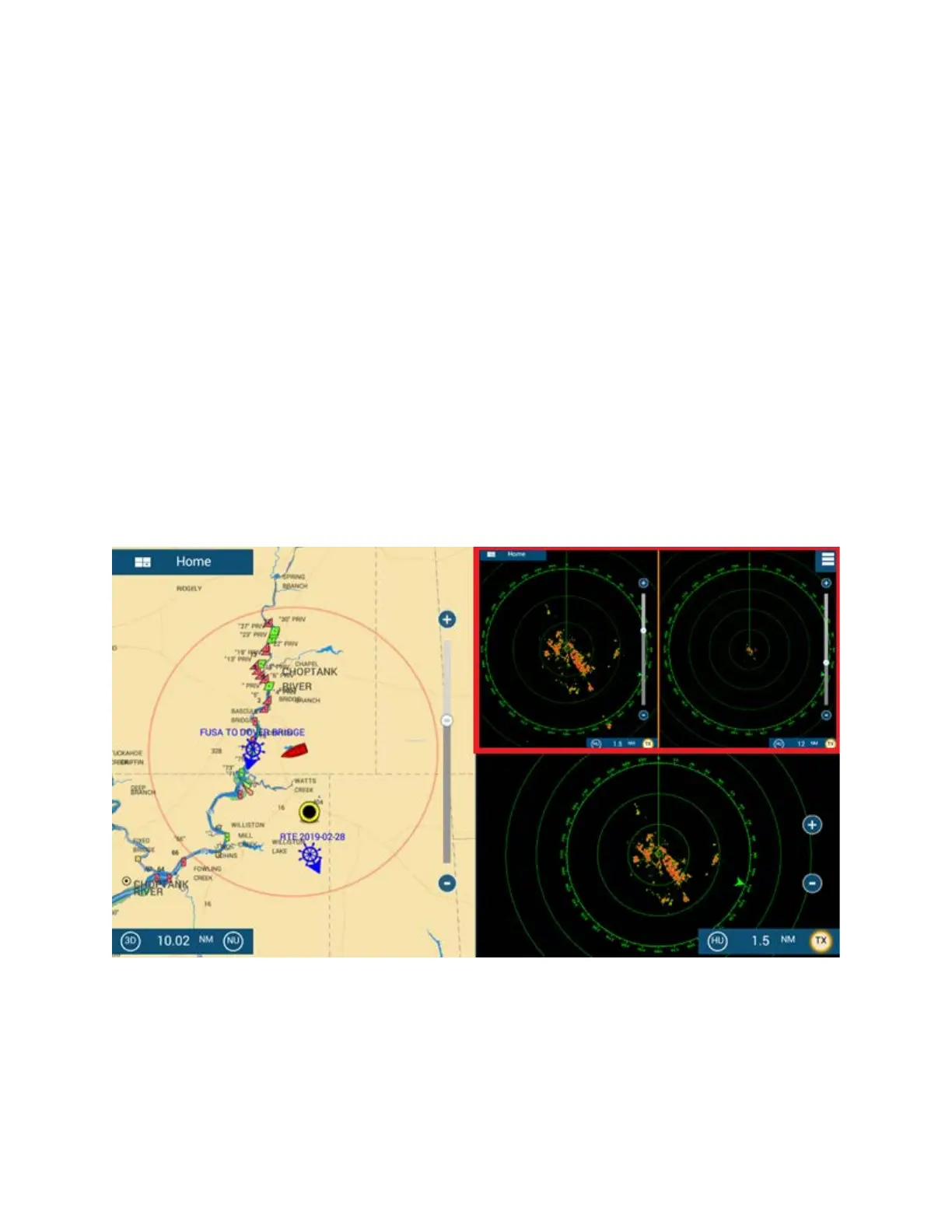

Ex
ample of dual range with one radar and single range of second radar on same display
