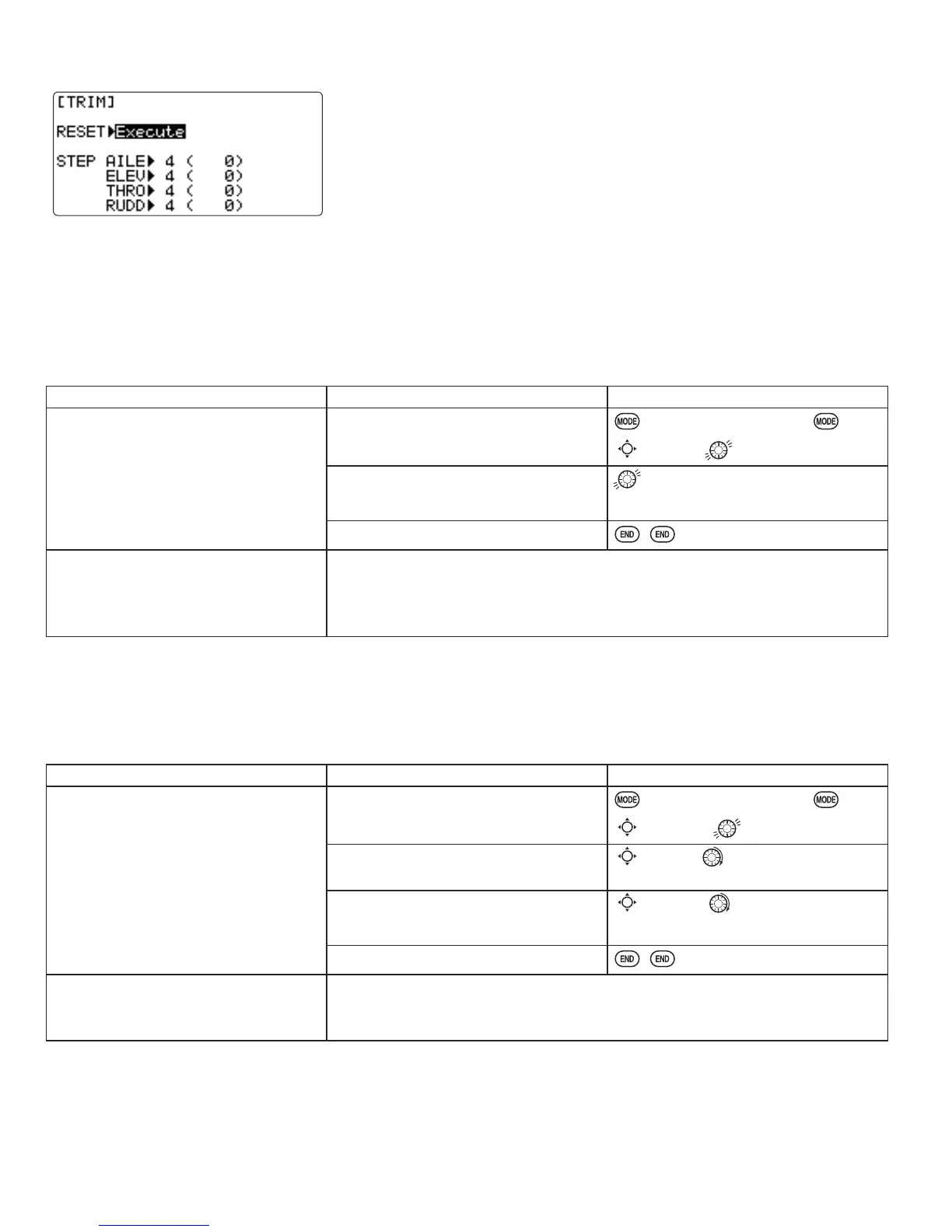

TRIM
submenu: resets and adjust effectiveness of digital trims.
The 10C has digital trims which are different from conventional mechanical
trim sliders. Each TRIM LEVER is actually a two-direction switch. Each time
the TRIM LEVER is pressed, the trim is changed a selected amount. When you
hold the TRIM LEVER, the trim speed increases. The current trim position is
graphically displayed on the start up screen. The
TRIM
submenu includes two
functions that are used to manage the trim options.
HELI
models only:
OFFSET
is available in the idle ups. If
OFFSET
is inhibited, adjustment of the TRIM LEVERS will adjust
WKHWULPVIRUDOOÀLJKWFRQGLWLRQV,I
OFFSET
is active, then moving the trims within any one condition will effect only that
condition. See
OFFSET
, p. 102.
Trim reset (
RESET
): electronically centers the trims to their default values. Note that the
SUB-TRIM
settings and the trim
STEP
rate are not reset by this command.
GOAL of EXAMPLE: STEPS: INPUTS:
Reset trims to neutral after having
adjusted all linkages.
NOTE: This is one of several
functions for which the radio requires
FRQ¿UPDWLRQWRPDNHDFKDQJH
Open
BASIC
menu, then open
TRIM
submenu.
for 1 second.
(If
ADVANCE
, again.)
C
to
TRIM
.
Request DQGFRQ¿UPWKHUHVHW.
for 1 second.
Beep sounds.
Close.
Where next? Adjust
SUB-TRIMs
: see p. 49.
Adjust trim rate (
STEP
): see below.
Adjust
END POINTs
: see p. 39.
6HWXSGXDOWULSOHUDWHVDQGH[SRQHQWLDO
D/R
,
EXP
): see p. 42.
Trim step (
STEP
): changes the rate at which the trim moves when the TRIM LEVER is activated. It may be set from 1 to
40 units, depending on the characteristics of the aircraft. Most ordinary aircraft do well at about 2 to 10 units. Generally
ODUJHUWULPVWHSVDUHIRUPRGHOVZLWKODUJHFRQWUROWKURZVRUIRU¿UVWÀLJKWVWRHQVXUHVXI¿FLHQWWULPWRSURSHUO\FRUUHFWWKH
PRGHO6PDOOHUWULPVWHSVDUHODWHUXVHGWRDOORZYHU\¿QHDGMXVWPHQWVLQÀLJKW
GOAL of EXAMPLE: STEPS: INPUTS:
Double the sensitivity (larger step) ofthe
AILERON TRIM LEVERS for a first
flight of an aerobatic model to ensure
sufficient range to trim the model for
OHYHOÀLJKW
Open
TRIM
submenu and choose the
STEP
you wish to change. (Ex: aileron)
for 1 second.
(If
ADVANCE
, again.)
C
to
TRIM
.
Adjust the size of the step.
(Ex: incr. to
8
)
C
to
AILE
. to
8
.
Repeat as desired for other channels.
C
to
ELEV
. to new setting.
Repeat as needed.
Close.
Where next? Adjust sub trims: see p. 49.
Adjust
END POINTs
: see p. 39.
6HWXSGXDOWULSOHUDWHVDQGH[SRQHQWLDO
D/R
,
EXP
): see p. 42.
