Garmin G1000 Pilot's Guide

190-00962-04 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG 437
HAZARD AVOIDANCE
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
TAS ALERTS
NOTE: Refer to the TAS600 documentation for information on alerts generated by the TAS equipment.
When the number of TAs on the Traffic Map Page increases from one scan to the next, the following occur:
• A “Traffic” voice alert is generated followed by the clock position, relative altitude and range of the TA.
• A TRAFFIC Annunciation appears at the top right of the airspeed on the PFD, flashing for 5 seconds and
remaining displayed until no TAs are detected in the area.
• The PFD Inset Map is automatically displayed with TA traffic.

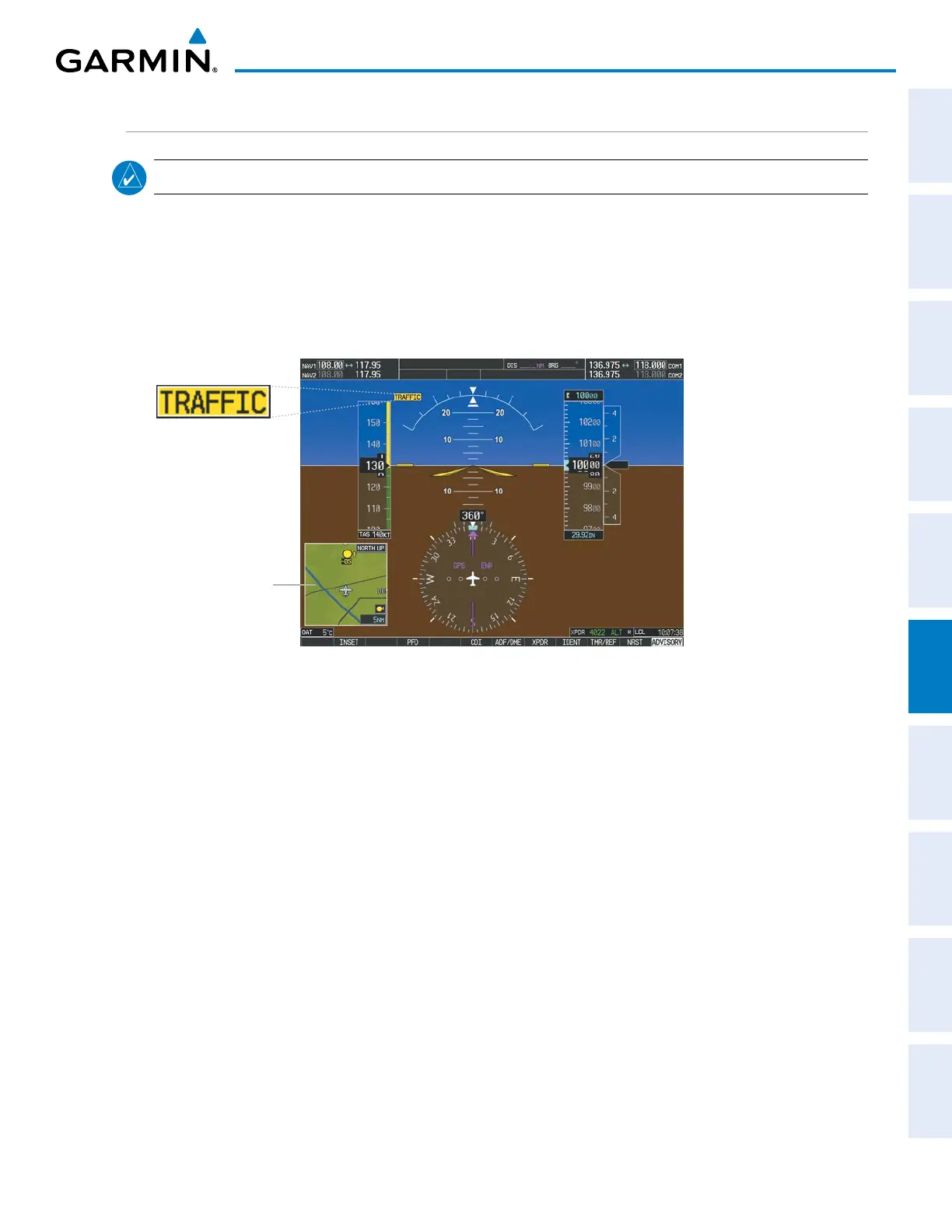

Figure 6-191 Traffic Annunciation (PFD)
Inset Map
Displays When
TA is Detected
TAS VOICE ALERTS
To listen to an update of Traffic Advisories select the MUTE Softkey twice.
Muting the TAS voice alert in progress:
1) Select the Traffic Map Page.
2) Select the MUTE Softkey while the voice alert is playing. Subsequent voice alerts will be heard.

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
