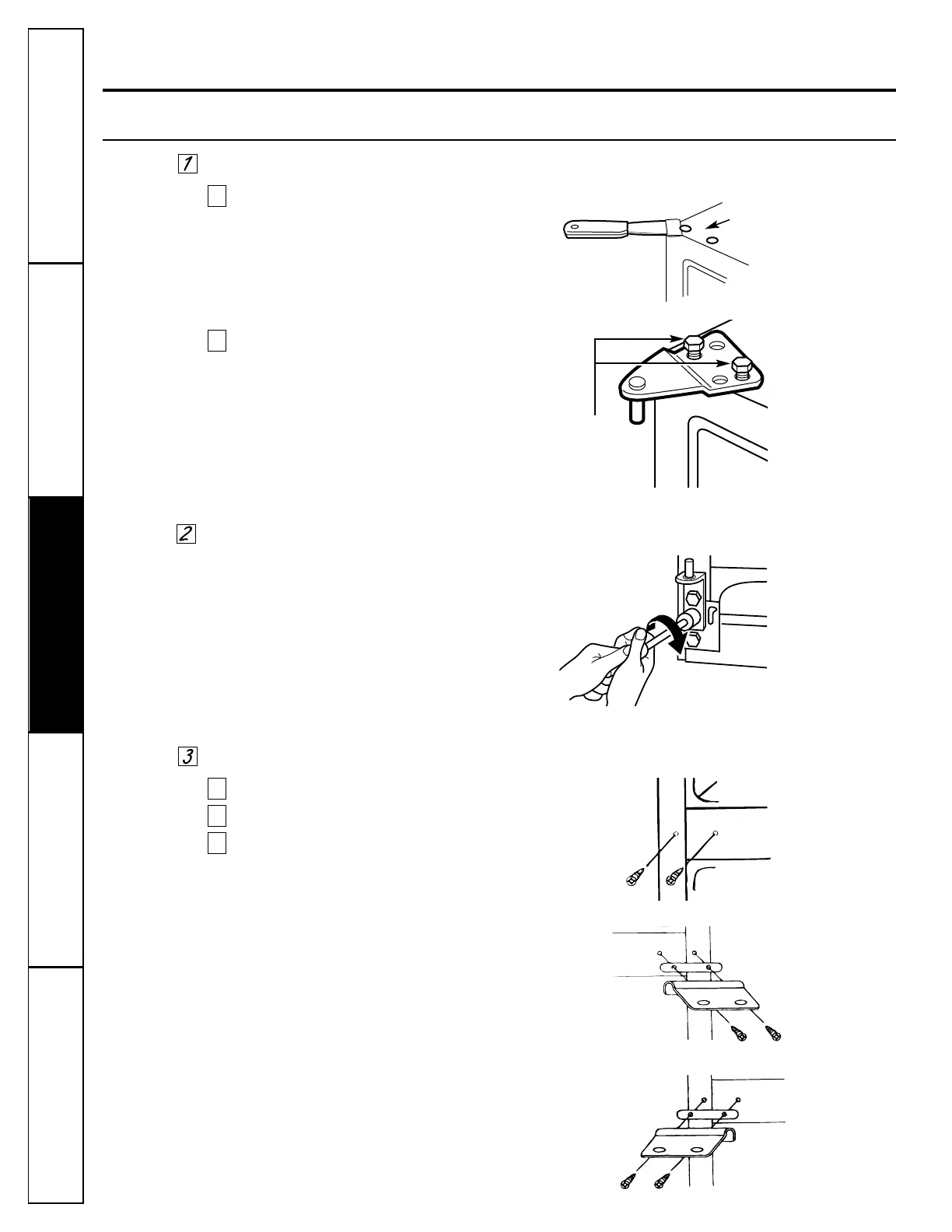

About reversing the door swing.
Reinstall Top Hinge on Left Side
Remove the plug buttons by carefully prying
under the edge with a putty knife. Be careful of
the paint finish.
Reinstall the plug buttons on the right side by
inserting them into the holes vacated by the top
hinge screws.
Reassemble the top hinge and shim on the left
side, turning the screws just enough to hold the
hinge in place.
b
a
Reverse Hardware on Cabinet
Be sure screws
go through these
holes for left side.
Plug Buttons
Transfer Bottom Hinge to the Left
Remove the bottom hinge, screws and shim(s) from
the right side and reassemble them on the left side
of the cabinet.
ATTENTION: The screws must be properly tightened.
Turn the screws until snug. Then tighten the screws a
minimum of one full turn using both hands.
Transfer Center Hinge to the Left
Remove the two screws on the opposite side.
Remove the center hinge, shim and screw(s).
Reassemble the center hinge on the left side.
CAUTION: When assembled correctly, the hinge is tight
against the cabinet.
ATTENTION: The screws must be properly tightened.
Turn the screws until snug. Then tighten the screws a
minimum of 1/2 turn using both hands.
c
b
a
