Power Cord Strain Relief Installation
Remove the lower rear range wiring cover to expose the connector block and
bracket.
Remove the knockout ring (1
3
⁄8″) located on bracket directly below the
connector. To remove the knockout, use a pair of pliers to bend the
knockout ring away from the bracket and twist until ring is removed.
Assemble the strain relief in the hole. Insert the power cord through the
strain relief and tighten. Allow enough slack to easily attach the cord
terminals to the connector block. If tabs are present at the end of the winged
strain relief, they can be removed for better fit.
NOTE: Do not install the power cord without a strain relief. The strain relief bracket should
be installed before reinstalling the rear range wiring cover.
c
b
a
3

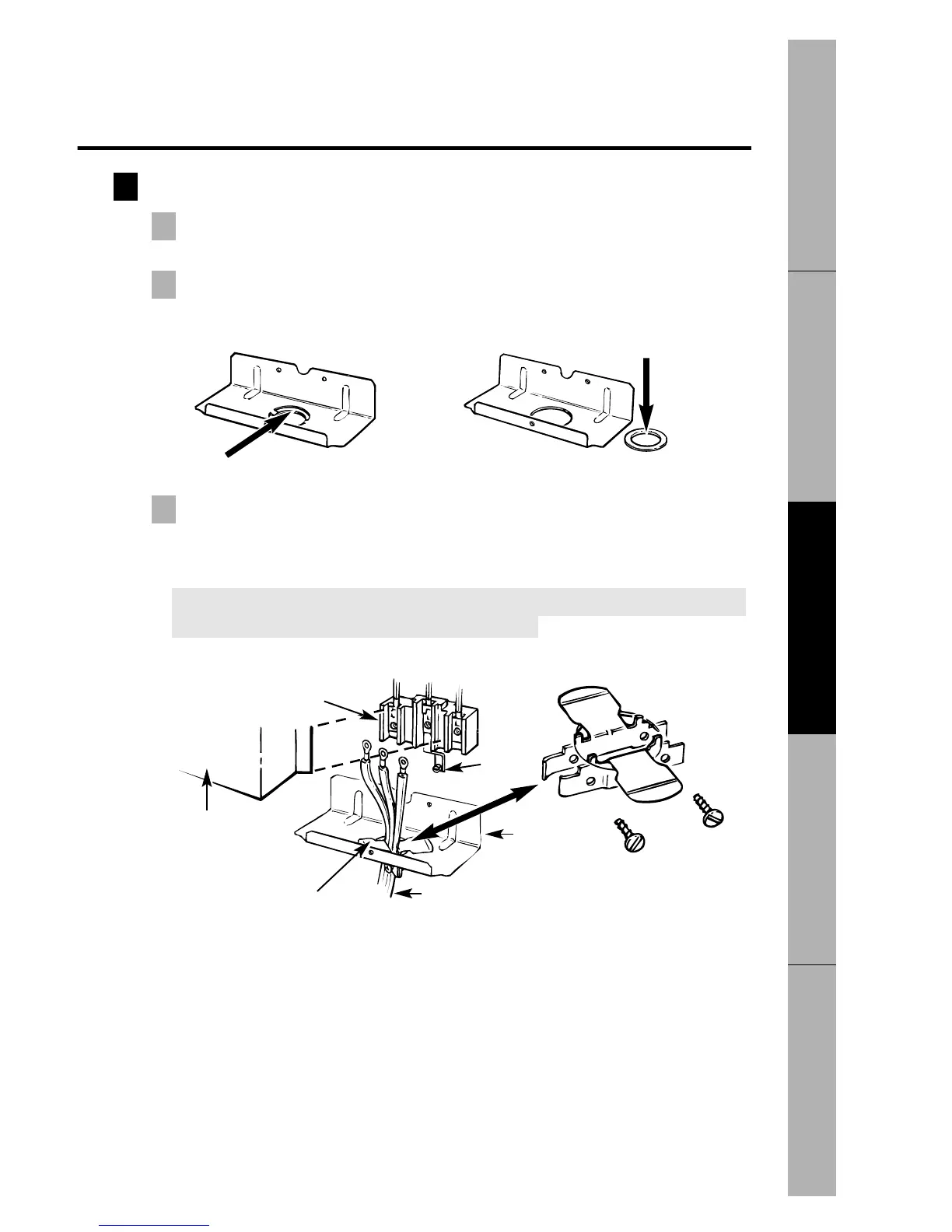

Knockout ring in bracket. Knockout ring removed.
Wiring cover
(shown removed)
Connector box
Strain relief Power cord
Ground
strap
Bracket
Strain relief bracket
(Provided with range cord. Not part of range.)
To Next Page
