button.
1. Remove the battery from the push button transmitter.

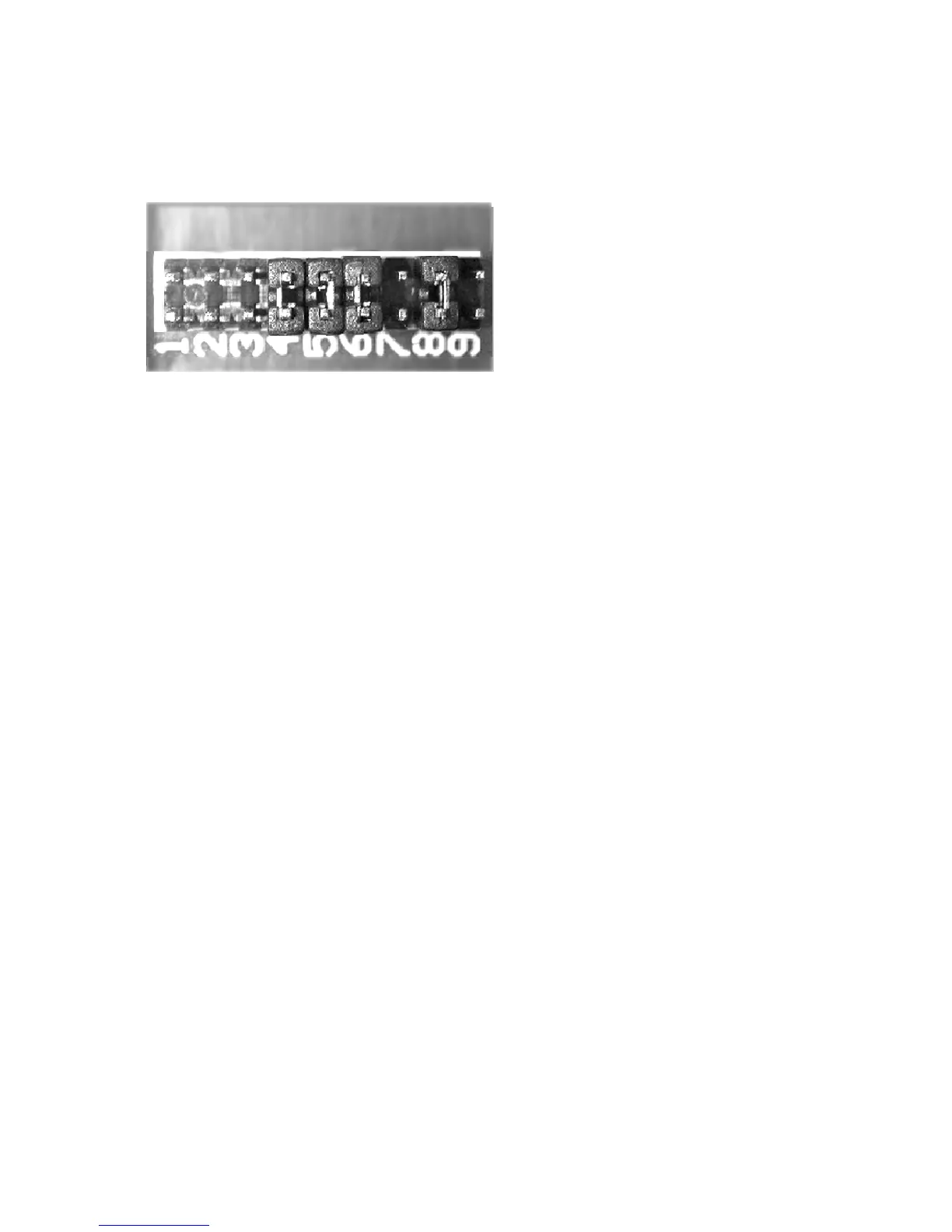

2. Locate the 9 position jumper shown below.
9 position jumper (This pushbutton is set for Ding Dong Chime since 7=off, 8=on,
and 9=off.)
3. Select the desired chime sound from the table below.
Chime Sound Table
Position 7 8 9
Westminster ON OFF OFF
Ding Dong OFF ON OFF
Knock OFF OFF ON
Bronze Chime ON ON OFF
Cuckoo Clock ON OFF ON
Foghorn OFF ON ON
Gong ON ON ON
ON: Add a jumper to a location
OFF: Remove jumper from a location.
4. Remove or add the jumpers to match the table.
5. Store unused jumpers as shown in the picture.
