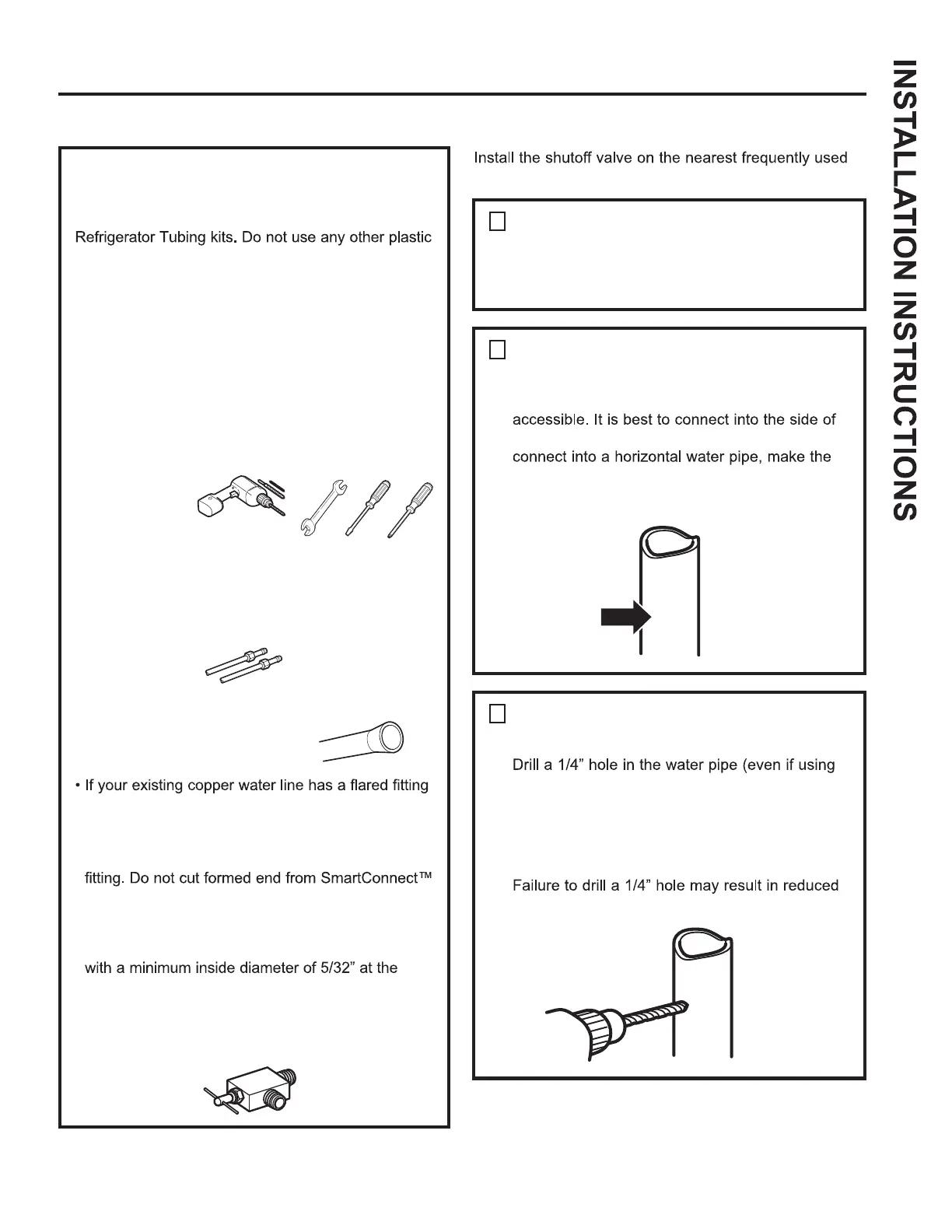

WHAT YOU WILL NEED (Cont.)
NOTE The only GE Appliances approved
plastic tubing is that supplied in SmartConnect™
water supply line because the line is under pressure
at all times. Certain types of plastic will crack or
rupture with age and cause water damage to your
home.
A GE Appliances water supply kit (containing
tubing, shutoff valve and fittings listed below) is
available at extra cost from your dealer or from
Parts and Accessories, 877.959.8688 (in Canada
1.800.661.1616).
A cold water supply. The water pressure must be
between 20 and 120 p.s.i. (1.4–8.1 bar).
Power drill.
1/2 or adjustable wrench.
Straight and Phillips blade screwdriver.
Two 1/4 outer diameter compression nuts and
two ferrules (sleeves)to connect the copper
tubing to the shutoff valve and the refrigerator
water valve.
OR
If you are using a SmartConnect™ Refrigerator
Tubing kit, the necessary fittings are
preassembled to the tubing.
at the end, you will need an adapter (available at
plumbing supply stores) to connect the water line to
the refrigerator OR you can cut off the flared fitting
with a tube cutter and then use a compression
Refrigerator tubing.
Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet
point of connection to the COLD WATER LINE.
Saddle-type shutoff valves are included in many
water supply kits. Before purchasing, make sure
a saddle-type valve complies with your local
plumbing codes.
SHUT OFF THE MAIN WATER
SUPPLY
Turn on the nearest faucet long enough to clear
the line of water.
CHOOSE THE VALVE
LOCATION
Choose a location for the valve that is easily
a vertical water pipe. When it is necessary to
connection to the top or side, rather than at the
bottom, to avoid drawing off any sediment from
the water pipe.
DRILL THE HOLE FOR THE
VALVE
a self-piercing valve), using a sharp bit. Remove
any burrs resulting from drilling the hole in the
pipe.
Take care not to allow water to drain into the
drill.
ice production or smaller cubes.
1
2
3
drinking water line.
