CHAPTER 4: INTERFACES
469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL 4–19

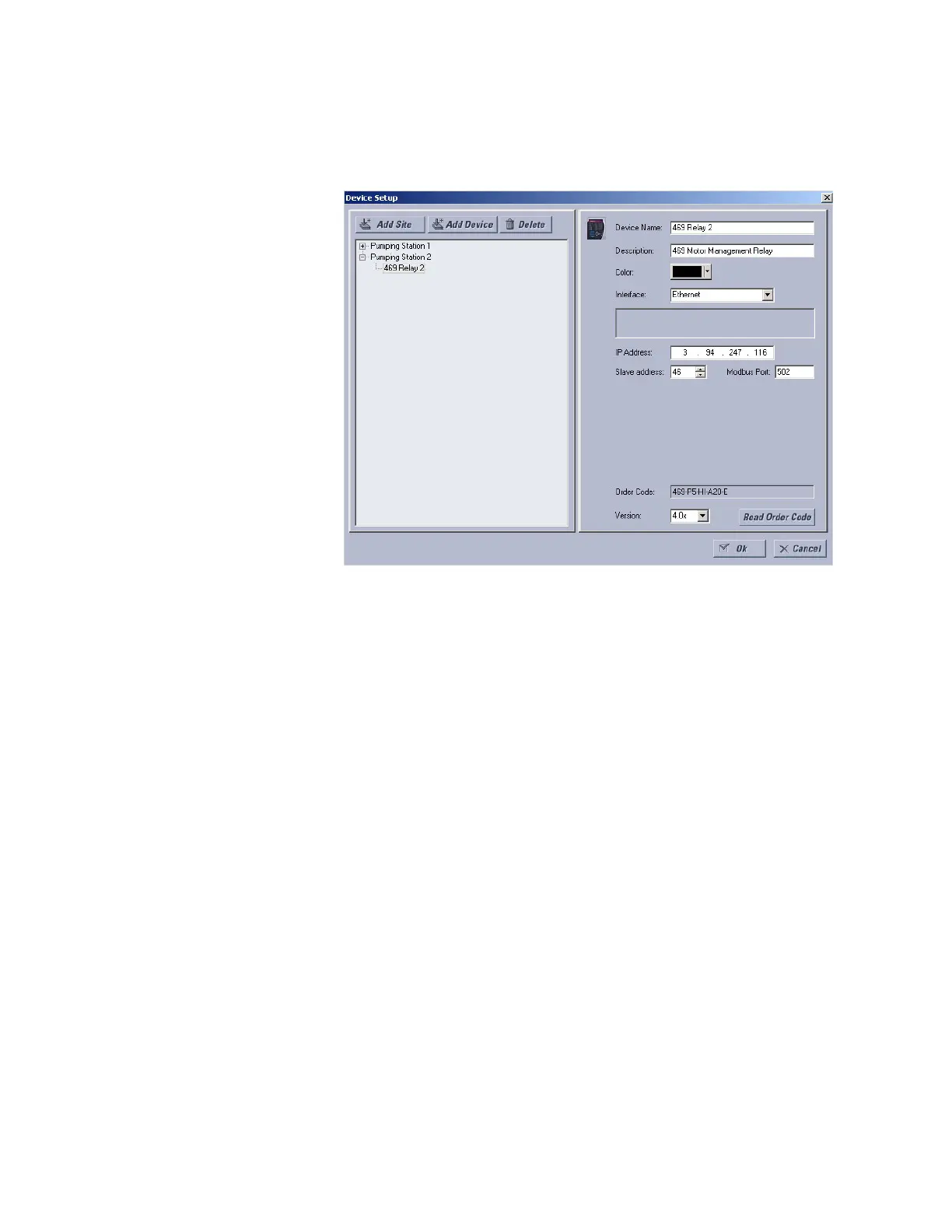

Z Select “Ethernet” from the Interface drop-down list.
This will display a number of interface parameters that must be entered
for proper Ethernet functionality.
Z Enter the IP address assigned to the relay.
Z Enter the slave address and Modbus port values (from the
S1 469 SETUP
ZV SERIAL PORTS menu) in the Slave Address and Modbus Port
fields. Refer to GEK-106491C: 469 Communications Guide.
Z Click the Read Order Code button to connect to the 469 device and
upload the order code.
If a communications error occurs, ensure that the 469 Ethernet
communications values entered in the previous step correspond to the
relay setting values.
Z Click OK when the relay order code has been received.
The new device will be added to the Site List window (or Online
window) located in the top left corner of the main EnerVista 469 Setup
window.
The 469 Site Device has now been configured for Ethernet communications. Proceed to the
following section to begin communications.
4.3.4 Connecting to the Relay
Now that the communications parameters have been properly configured, the user can
easily connect to the relay.
Z Expand the Site list by double clicking on the site name or clicking on
the «+» box to list the available devices for the given site (for example,
in the “Pumping Station 1” site shown below).
