CHAPTER 4: INTERFACES
4.4 Working with Settings and Settings Files
4.4.1 Engaging a Device
The EnerVista 469 Setup software may be used in on-line mode (relay connected) to
directly communicate with a 469 relay. Communicating relays are organized and grouped
by communication interfaces and into sites. Sites may contain any number of relays
selected from the SR or UR product series.
4.4.2 Entering Settings

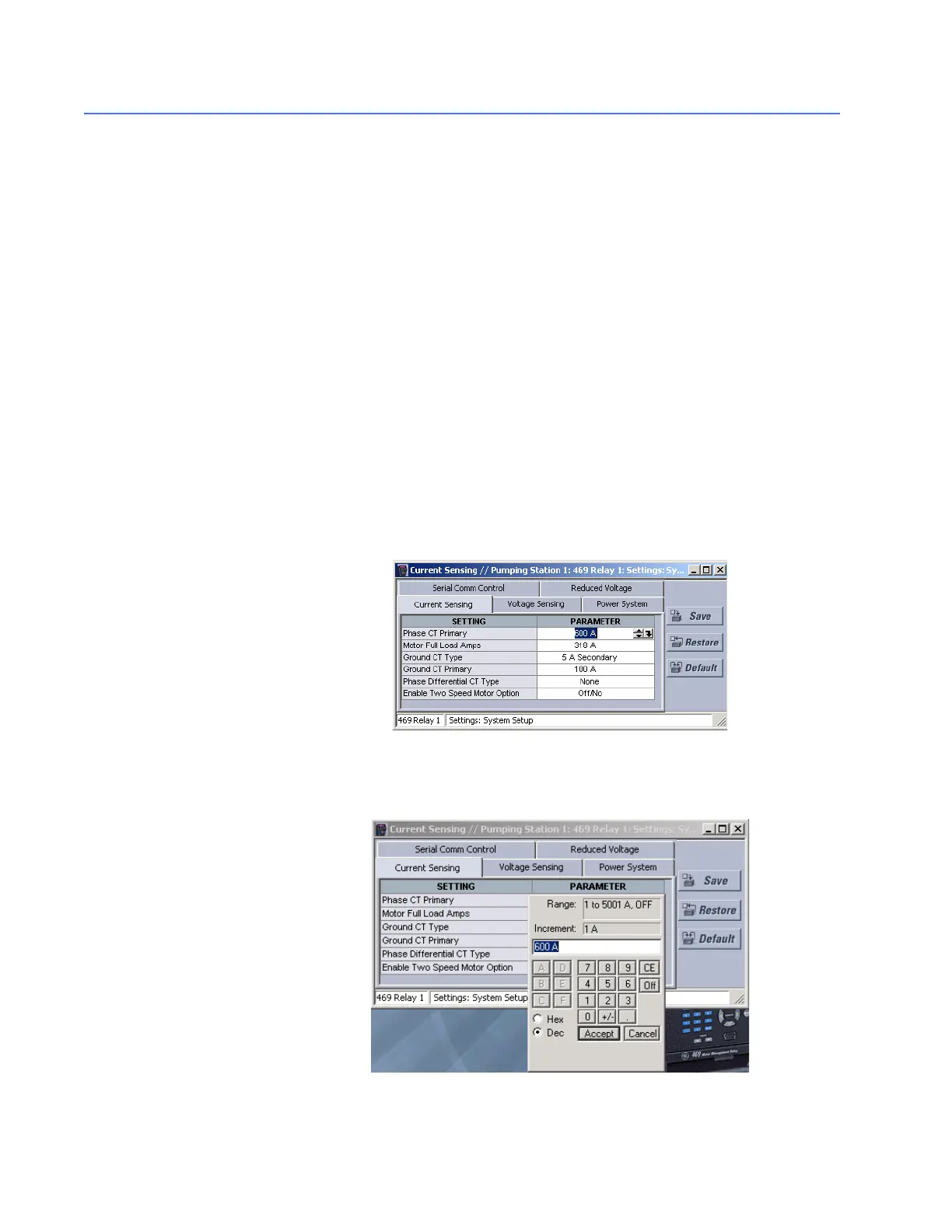

The System Setup page will be used as an example to illustrate the entering of settings. In
this example, we will be changing the current sensing settings.
Z Establish communications with the relay.
Z Select the Settings > System Setup menu item. This can be selected
from the device settings tree or the main window menu bar.
Z Select the
PHASE CT PRIMARY settings by clicking anywhere in the
parameter box. This will display three arrows: two to increment/
decrement the value and another to launch the numerical calculator.
Z Click on the arrow at the end of the box to display a numerical keypad
interface that allows you to enter a value within the settings range
displayed near the top of the keypad:
Z Click Accept to exit from the keypad and keep the new value.
