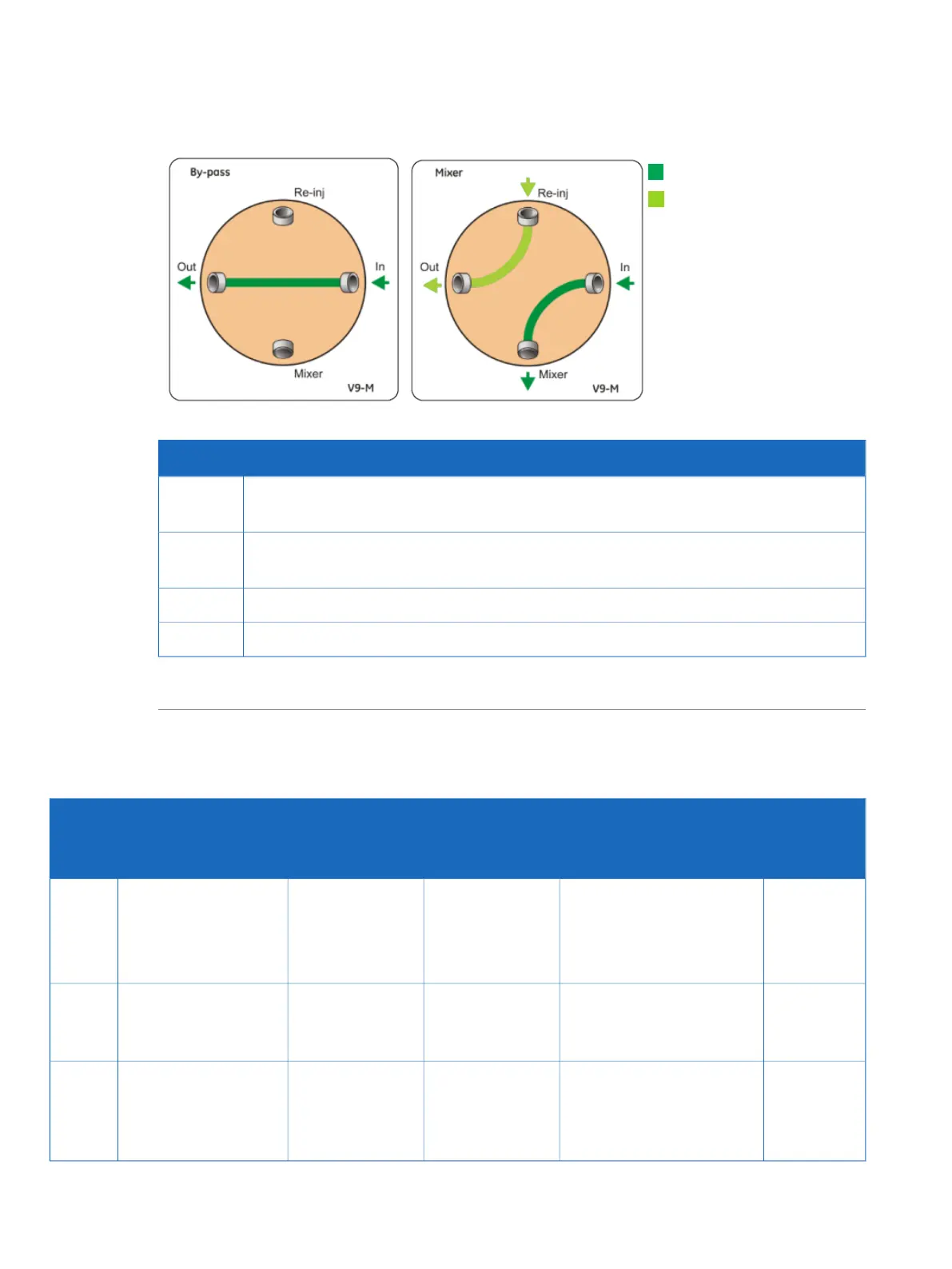

Primary flow path
Alternative flow path
DescriptionPort
Port in which the flow enters the valve. Should be connected to the System pressure
monitor outlet.
In
Port from which the flow leaves the Mixer valve and bypasses the Mixer. Connect to the
injection valve SaP port.
Out
Port for advanced configurations including re-injection.Re-inj
Port from which the flow leaves the valve and is directed to the Mixer.Mixer
Connect tubing
The table below shows recommended tubing and connectors.
Tubing
length
(mm)
ConnectorTubingConnectionTubing
label
ÄKTA pure 150ÄKTA pure 25
160Fingertight connector,
1/16"
PEEK, o.d. 1/16",
i.d. 1.00 mm
PEEK, o.d. 1/16",
i.d. 0.75 mm
Pressure monitor R9
to
3-1
Mixer valve V9-M port
In
330Fingertight connector,
1/16"
PEEK, o.d. 1/16",
i.d. 1.00 mm
PEEK, o.d. 1/16",
i.d. 0.75 mm
Mixer valve V9-M port
Mixer
to Mixer M9
3-2
260Fingertight connector,
1/16"
PEEK, o.d. 1/16",
i.d. 1.00 mm
PEEK, o.d. 1/16",
i.d. 0.75 mm
Mixer valve V9-M port
Out to
Injection valve V9-Inj
port SaP
3-3
48 ÄKTA pure User Manual 29119969 AB
2 The ÄKTA pure instrument
2.4 Instrument modules
2.4.5 Mixer valve
