49-5000526 Rev. 1 9
Window Panel Combinations to fit window openings
(Appearance may vary)

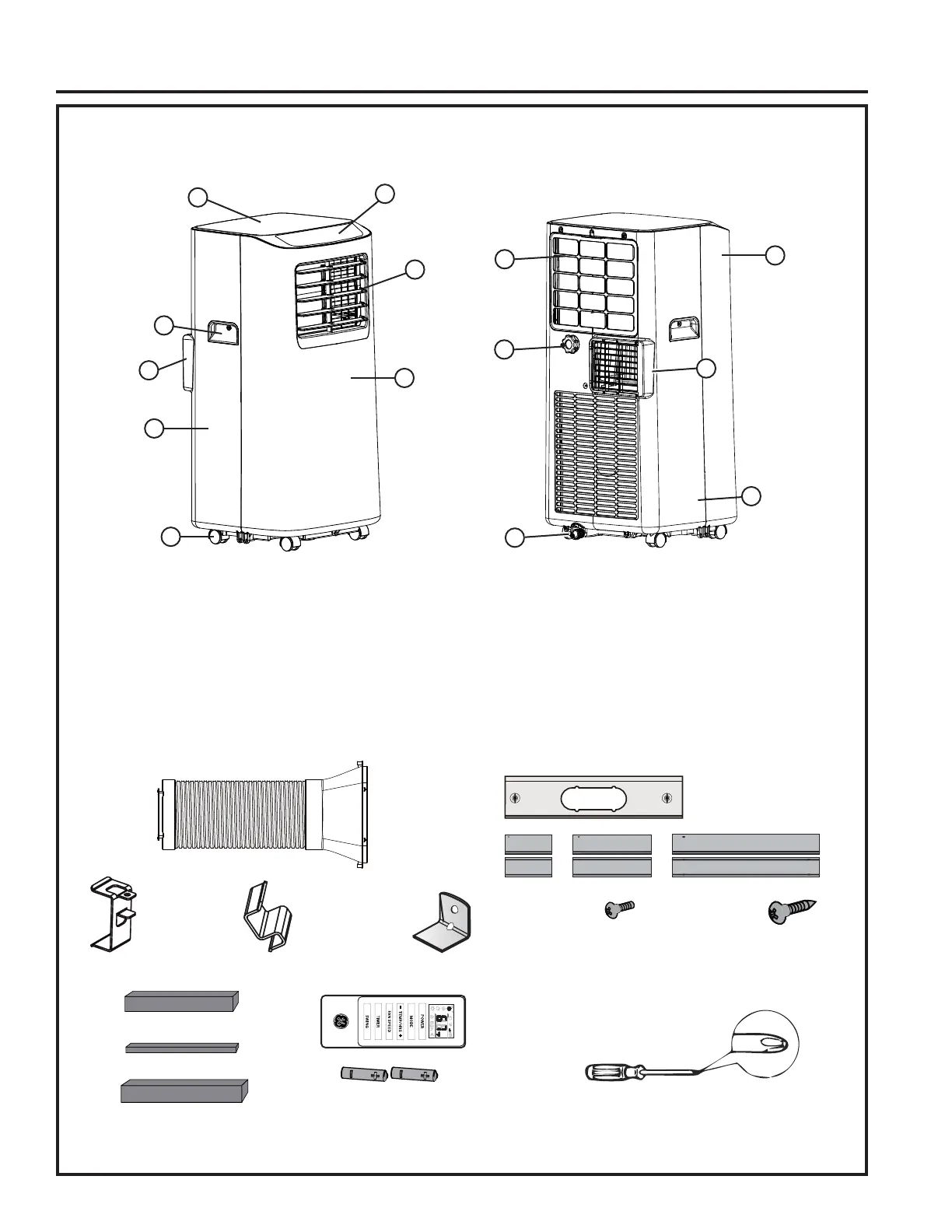

1. Top Cover
2. Control Panel
3. Handle
4. Air Outlet / Louver
5. Front Housing
6. Rear Housing
7. Caster
8. Upper Filter
9. Upper Continuous Drain
10. Cord Wrapping Post
11. Exhaust Air Vent
12. Lower Drain
INSTALLATION INSTRUCTIONS
Installation Instructions
2
1
6
7
3
5
4
6
8
11
10
12
9
5
Exhaust Hose Assembly
Remote Control
Batteries (2)
Phillips head screwdriver
(Not Included)
TOOLS YOU WILL NEED
Window Mounting Kit
1 pc – 20” Center Panel
SF±ï»´(QWHQVLRQ
1 pc – 9” Extension
2 pc – 16” Extensions
Pointed Screws (7)
2 – Top Window Bracket
1 – Security Bracket
4 – Main Window Panel
Security BracketBottom Window Bracket (2)Top Window Bracket (2)
Top Foam Strip
Bottom Foam Strip
Foam Strip
Flat Tip Screw
For exhaust nozzle to
main window panel.
